4-24 Application Guide

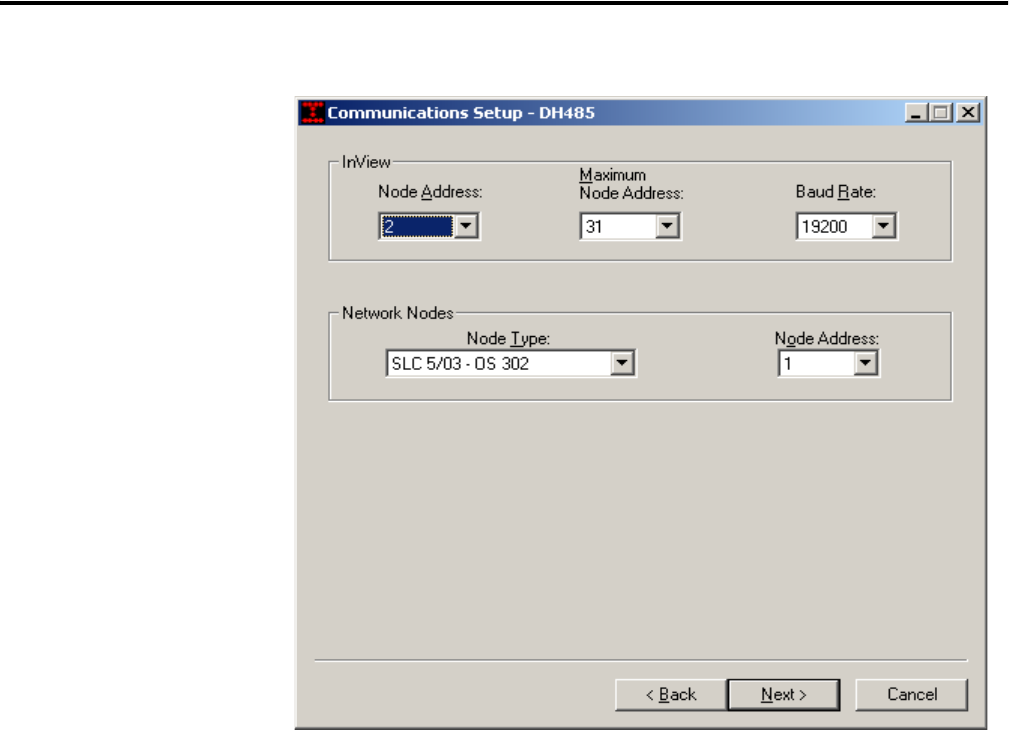

DH485 Communication Setup
SLC Controller
InView Parameters
• Node address. Node address (0 to 31 decimal) of the InView
display on the DH485 network.
• Maximum address. Address of the highest node on the network.
The default is 31. A low maximum address improves network
performance.
• Baud Rate. The communication rate (1.2 Kbps, 2.4 Kbps, 9.6
Kbps, 19.2 Kbps) of the DH485 network. The default is 19.2
Kbps.
Network Node Parameters
• Node Type. The type of controller that the InView display
communicates with.
• Node Address. The address (0 to 31 decimal) of the controller
on the DH485 network.
