Publication 2706-UM017C-EN-P - March 2006
Application Guide 4-27
InView Parameters
• Node address. Node address (0 to 31 decimal) of the InView
Display on the DH485 network.
• Maximum address. Address of the highest node on the network.
The default is 31. A low maximum address improves network
performance.
• Baud Rate. The communication rate (1.2 Kbps, 2.4 Kbps,
9.6 Kbps, 19.2 Kbps) of the DH485 network. The default is
19.2 Kbps.
Network Node Parameters
• Node Type. The type of controller that the InView display
communicates with.
• Node Address. The address (0 to 31 decimal) of the controller
on the DH-485 network.

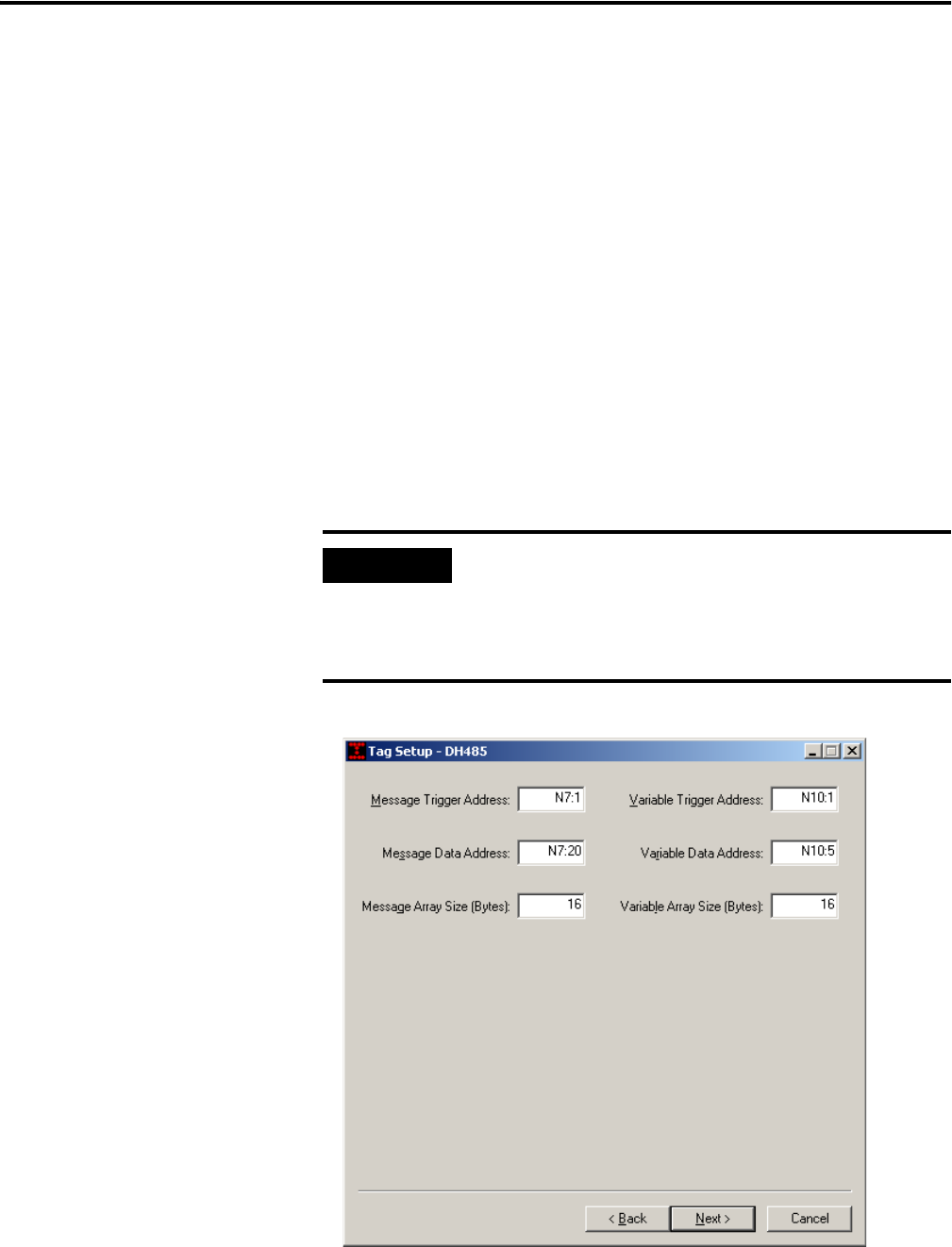

DH485 Tag Setup
IMPORTANT
All four tags for Message Trigger Address, Message
Data Address, Variable Trigger Address, Variable
Data Address, and the array sizes must be entered
and established in the controller as valid tags even if
they are not used.
