4-30 Application Guide
• Node Path. A 256-character string identifying the path to the end
node.

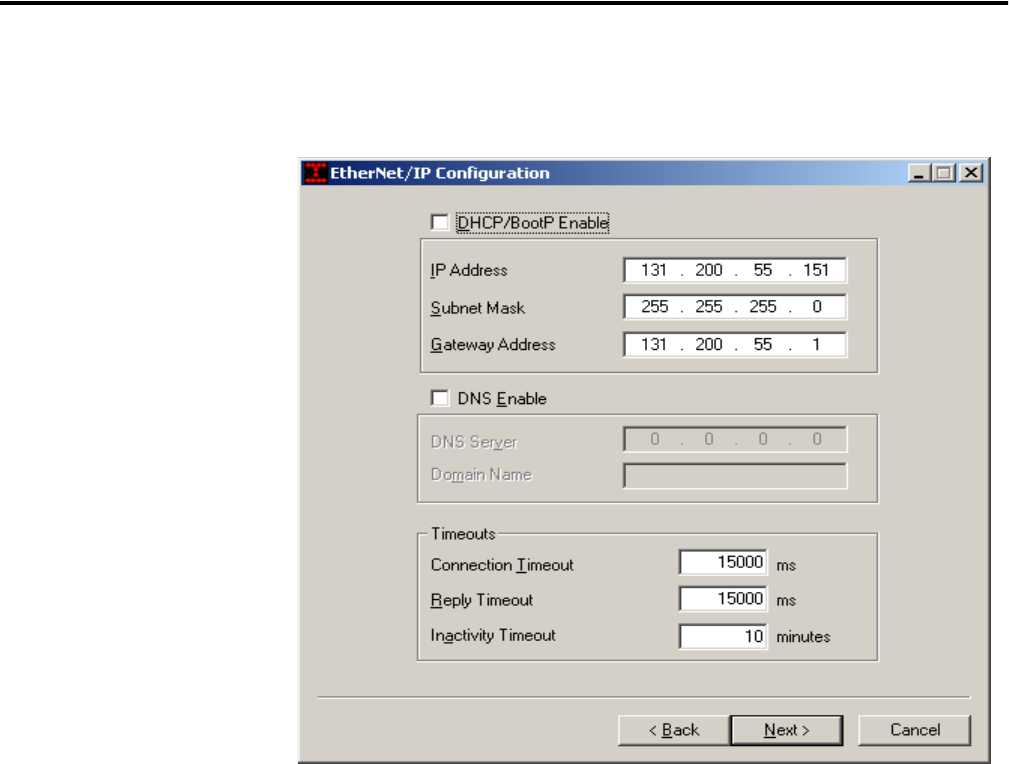

EtherNet/IP Configuration
EtherNet Configuration
• DHCP/BootP Enable. If you select this check box, the InView
display is automatically assigned an IP address, Subnet Mask,
and Gateway Address. These fields become read-only if the
check box is selected. Clear the check box to manually assign an
IP Address, Subnet Mask and Gateway Address.
• IP Address. A unique IP address of the InView display node on
the network. The default value is 0.0.0.0.
• Subnet Mask. A unique IP address of the InView display’s subnet
mask. This parameter interprets IP addresses when the network
is divided into multiple networks. The value 0.0.0.0 is not a valid
subnet mask.
