1-2 Overview
The MobileView Guard G750 connects as a client to a Windows NT or
Windows 2000 server. It also provides a Windows CE platform for
applications generated with common visualization tools, Visual Basic,
Visual C++, and the CE 4.x Software Developers Kits (SDK) included
on the product CD.
The MobileView Guard G750 Catalog Numbers 2727-G7P20D1Q6 and
2727-G7P20D3Q7 support RSView Machine Edition Software.
The MobileView Guard G750 easily adapts to specific applications
using configurable operating and control elements.

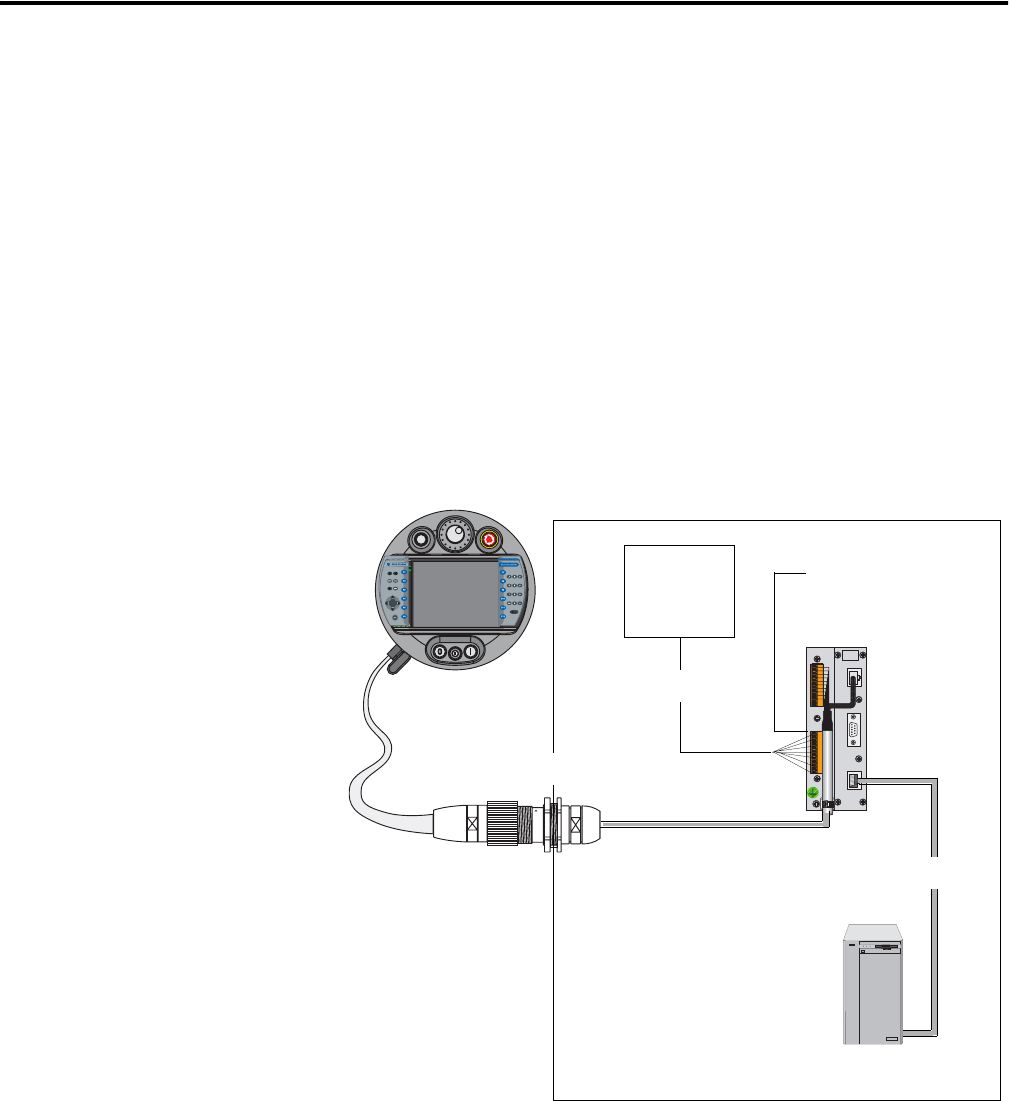

MobileView Guard Sample
System Configuration
7 8 9
4 5
6
1 2 3
. 0 -
ESC
KETOP
R
u
n
E
r
ror
24V DC
ON L Y
TER M INAL IN
RS422 OUT
ETHERNET OUT
+24V
GND
ES1+
ES1-
ES2+
ES2-
ED1+
ED1-
ED2+
ED2-
+24V
GND
ES1+
ES1-
ES2+
ES2-
ED1+
ED1-
ED2+
ED2-
MobileView
Junction Box
PILZ PST 1
Safety Relay
Local or Remote
Windows NT or 2000 Server
MobileView Guard Terminal
running as CE Thin Client and/or
Custom CE Applications
5, 10, 15, 20 meter mobile
Connection Cable
Discrete
Connections
Typical System Control Cabinet
24V dc Power
Ethernet
Connection
Discrete/Ethernet
Connection
