Terminal Connections 3-7
MobileView Connection Cable
The Mobile Connection Cable (2727-MRTxx) connects the MobileView
terminal to the MobileView Junction Box Cable (2727-MREX1). The
Connection Cable is 5, 10, 15, or 20 meters (6.4, 32.8, 49.2 or 65.6 ft).
This cable withstands water, cleaning agents, motor oil, drilling oils,
grease, lubricants and condensates containing hydrochloric acid.

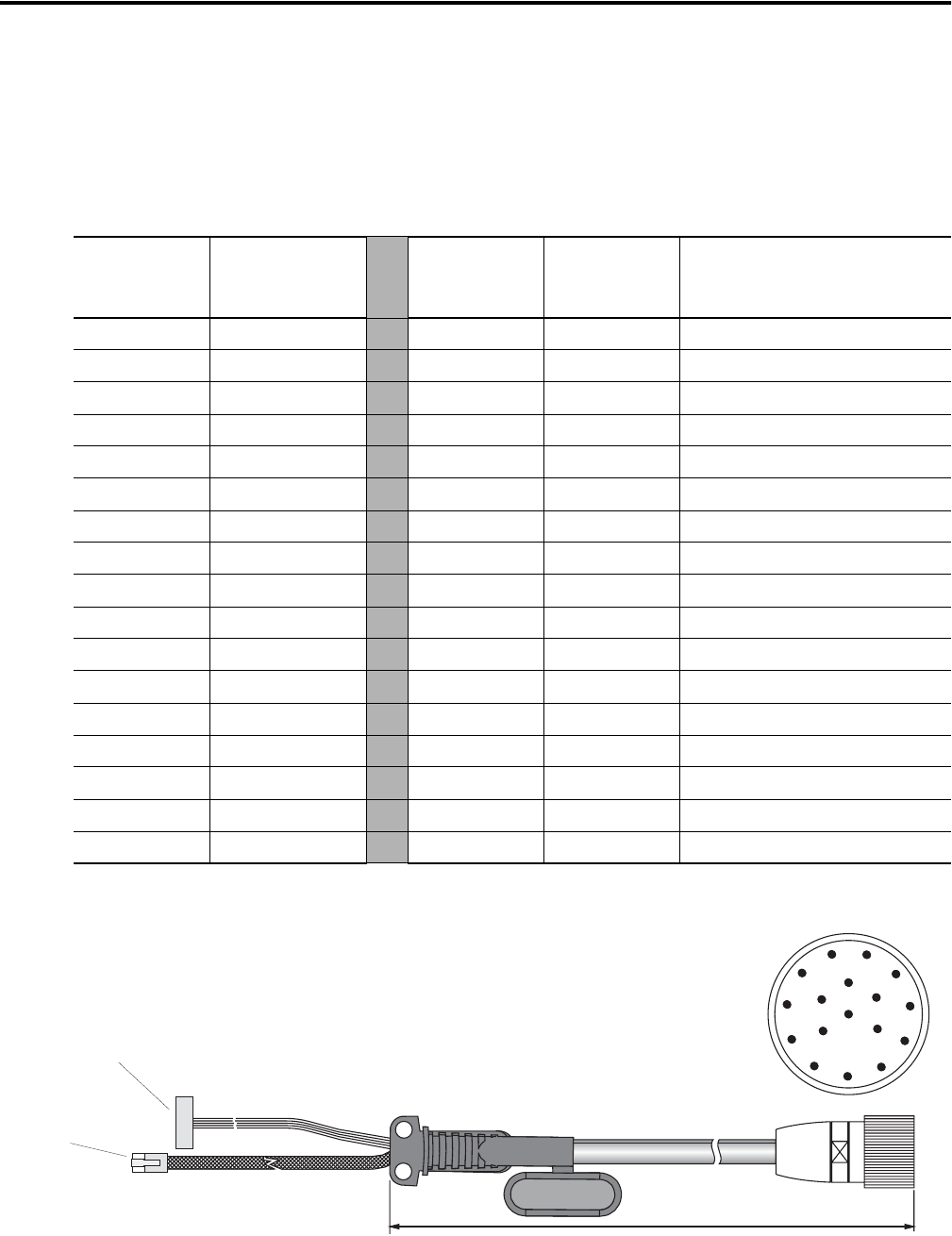

K1
17-pin Circular
Connector Pin #
MobileView
Connection Cable
Wire Color
K3, 11-pin Female
Connector
to S19 in
Terminal
K2, 8-pin
RJ-45 Jack
Ethernet to S4 in
Terminal
Signal
Description
1pink
-->>
6 - 24V DC
2black
-->>
7 - GND_IN
3 green-brown
-->>
8 - E-stop, circuit 1, positive
4 white-green
-->>
9 - E-stop, circuit 1, negative
5 grey-pink
-->>
10 - E-stop, circuit 2, positive
6 red-blue
-->>
11 - E-stop, circuit 2, negative
7brown
-->>
1 - enabling switch, circuit 1, positive
8yellow
-->>
2 - enabling switch, circuit 1, negative
12 green
-->>
3 - enabling switch, circuit 2, positive
17 grey
-->>
4 - enabling switch, circuit 2, negative
9 bridge to pin 10
-->>
- - not used
10 bridge to pin 9
-->>
- - not used
11 violet
-->>
5 - not used
13 blue
-->>
- 1 TD+ (transmit)
14 white
-->>
- 2 TD- (transmit)
15 orange
-->>
- 3 RD+ (receive)
16 red
-->>
- 6 RD- (receive)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
K2, 8-pin
RJ-45 jack to S4
at MobileView
terminal
5, 10, 15, or 20 meter (6.4, 32.8, 49.2, or 65.6 ft)
K3, 11-pin
female connector
to S19 at MobileView terminal
K1, 17-pin circular connector
view from connector side
