3-8 Terminal Connections

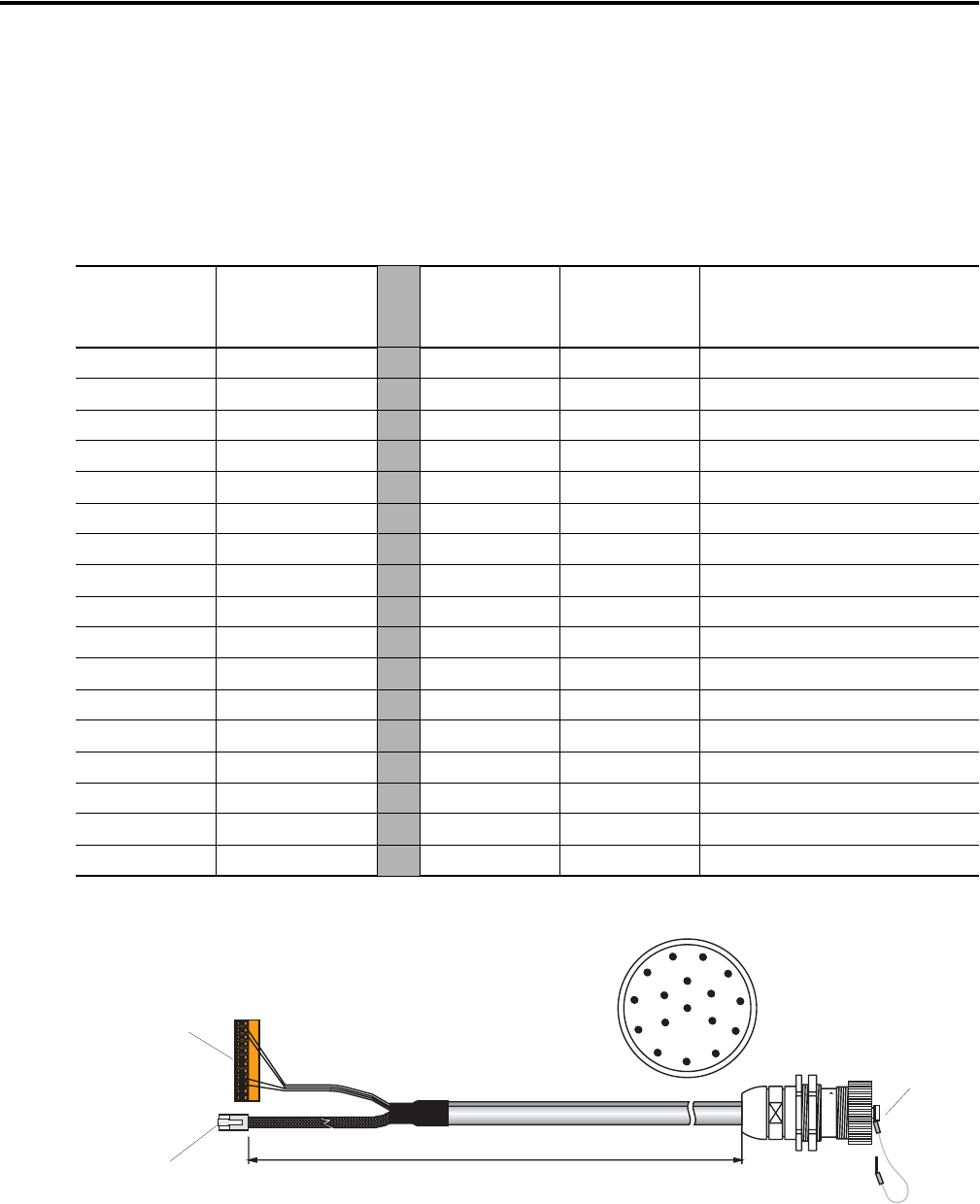

MobileView Junction Box Cable
The MobileView Junction Box Cable (2727-MREX1) connects the
Junction Box to the circular jack in the wall of the enclosure. The
cable length is 2 meters (6.5 ft.). When the MobileView terminal is not
connected to the Junction Box, the dust cover provides protection for
the 17-pin connector.
K1, 17-pin
Circular Jack
Pin #
MobileView
Junction Box Cable
Wire Color
K2, 8-pin
RJ-45 Jack
to S1 at
Junction Box
K3, 12-pin
Terminal Block
to X1 at
Junction Box
Signal
Description
1pink--> - 1 24V DC
2black
--> - 2 GND_IN
3 green-brown
--> - 3 E-stop, circuit 1, positive
4 white-green
--> - 4 E-stop, circuit 1, negative
5 grey-pink
--> - 5 E-stop, circuit 2, positive
6 red-blue
--> - 6 E-stop, circuit 2, negative
7brown
--> - 7 enabling switch, circuit 1, positive
8yellow
--> - 8 enabling switch, circuit 1, negative
12 green
--> - 9 enabling switch, circuit 2, positive
17 grey
--> - 10 enabling switch, circuit 2, negative
9-
--> - not used
10 -
--> - 12 not used
11 violet
--> - 11 not used
13 blue
--> 1 - TD+ (transmit)
14 white
--> 2 - TD- (transmit)
15 orange
--> 3 - RD+ (receive)
16 red
--> 6 - RD- (receive)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2 meter (6.5 ft)
K1, 17-pin circular jack
mounts to enclosure
K1, 17-pin circular jack
view from connector side
Dust Cover
K3, 12-pin connector
for terminal block X1
at Junction Box
K2, 8-pin RJ-45 jack
Ethernet for S1
at Junction Box
