Rockwell Automation Publication 280E-UM001B-EN-P – July 2012 167

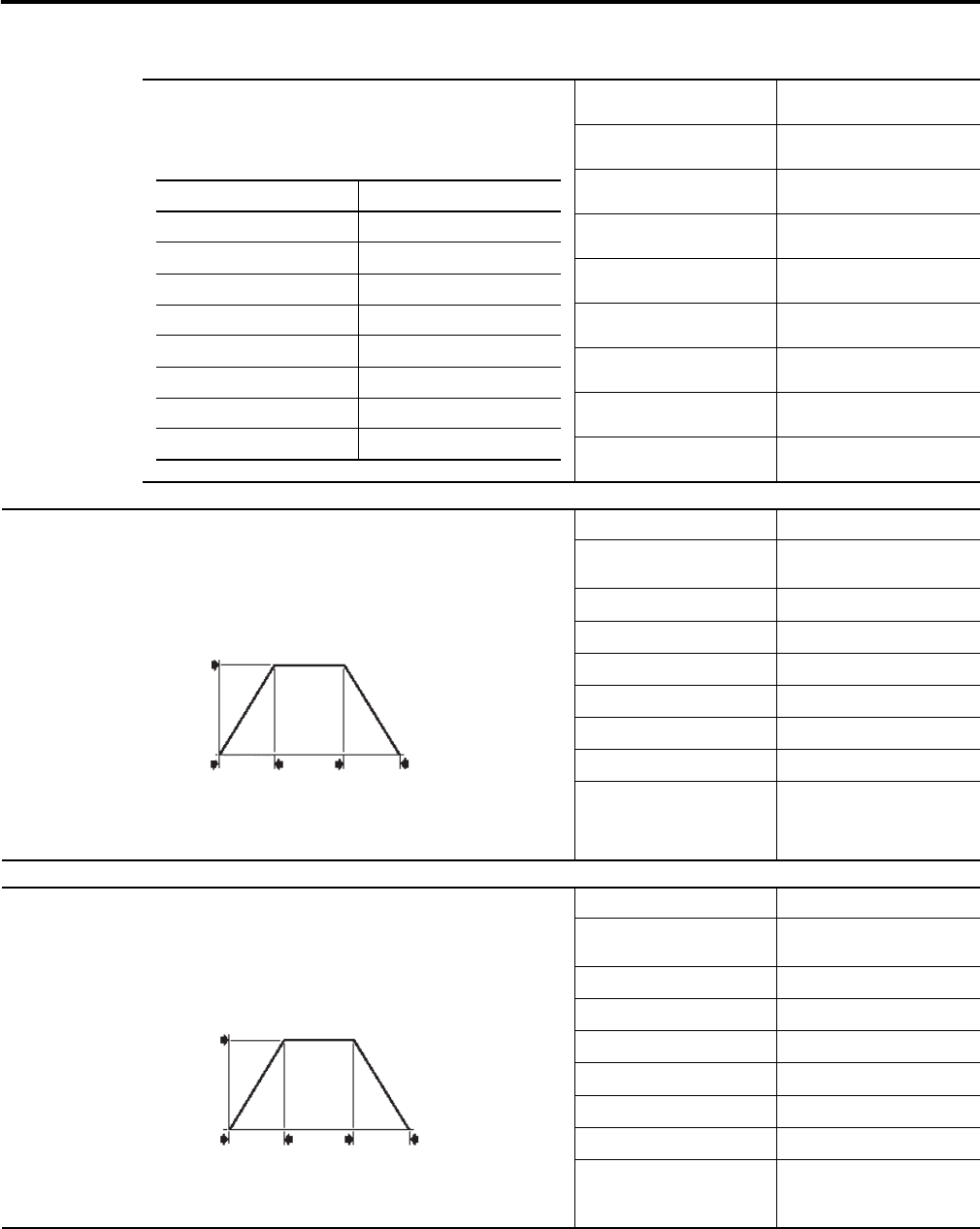

Bulletin 280E/281E/284E Programmable Parameters Chapter 7
Relay Out Level
Sets the trip point for the digital output relay if the value of Parameter
155 (Relay Out Sel) is 6, 7, 8, 10, 16, 17, 18, or 20.
Parameter Number 156
Related Parameters 155
Access Rule GET/SET
Data Type UINT
Group Drive Advanced Setup
Units 0.1
Minimum Value 0.0
Maximum Value 9999
Default Value 0.0
Parameters 155 Setting Parameter 156 Min./Max.
60/400 Hz
7 0/180%
8 0/815V
10 0/100%
16 0.1/9999 sec
17 1/9999 counts
18 1/180°
20 0/1
Accel Time 2
When active, sets the rate of acceleration for all speed increases except for jog.
Parameter Number 167
Related Parameters
139, 151…154, 170…177,
240…247
Access Rule GET/SET
Data Type UINT
Group Drive Advanced Setup
Units 0.1 sec
Minimum Value 0.0
Maximum Value 600.0
Default Value 20.0
Maximum Freq
Accel Time
-------------------------------------- Accel Rate=
Parameter 135
(Maximum Freq)
Speed
Param.
139 or
167
(Accel
Time x)
0
0
Time Param.
140 or
168
(Decel
Time x)
Acceleration
Deceleration
Decel Time 2
When active, sets the rate of deceleration for all speed decreases except for jog.
Parameter Number 168
Related Parameters
140, 151…154, 170…177,
240…247
Access Rule GET/SET
Data Type UINT
Group Drive Advanced Setup
Units 0.1 sec
Minimum Value 0.0
Maximum Value 600.0
Default Value 20.0
Maximum Freq
Decel Time
-------------------------------------- D e c e l R a t e=
Parameter 135
(Maximum Freq)
Speed
Param.
139 or
167
(Accel
Time x)
0
0
Time Param.
140 or
168
(Decel
Time x)
Acceleration
Deceleration
