Using DeviceLogix Appendix C

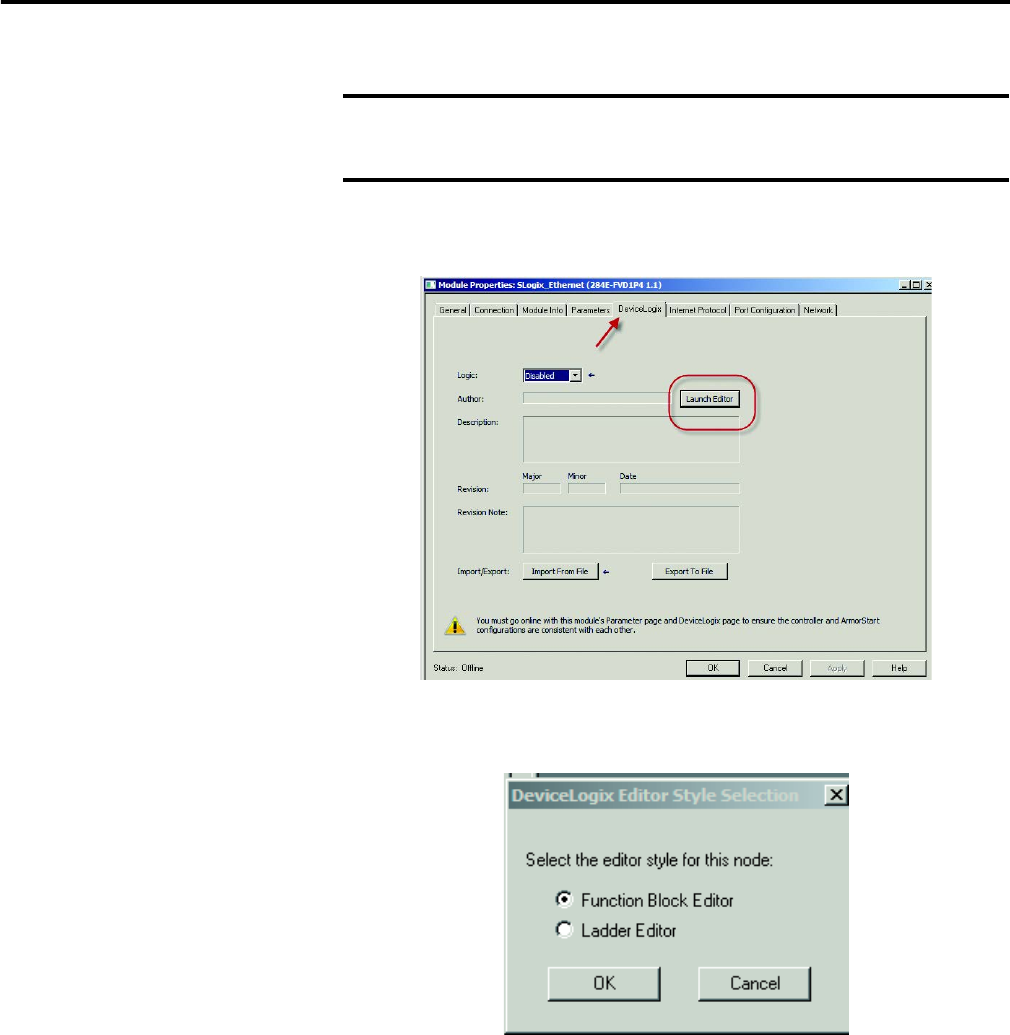

1. While in the AOP, click on the DeviceLogix tab. Click the Launch Editor
button.
2. Select Function Block or Ladder editor. Note that once selected you are
not able to switch back without recreating the logic.
IMPORTANT
Before programming logic, it is important to decide on the conditions under which the
logic will run. As defined earlier, the conditions can be defined by setting parameter 8
(Network Override) and parameter 9 (Comm. Override) to the desired value.
