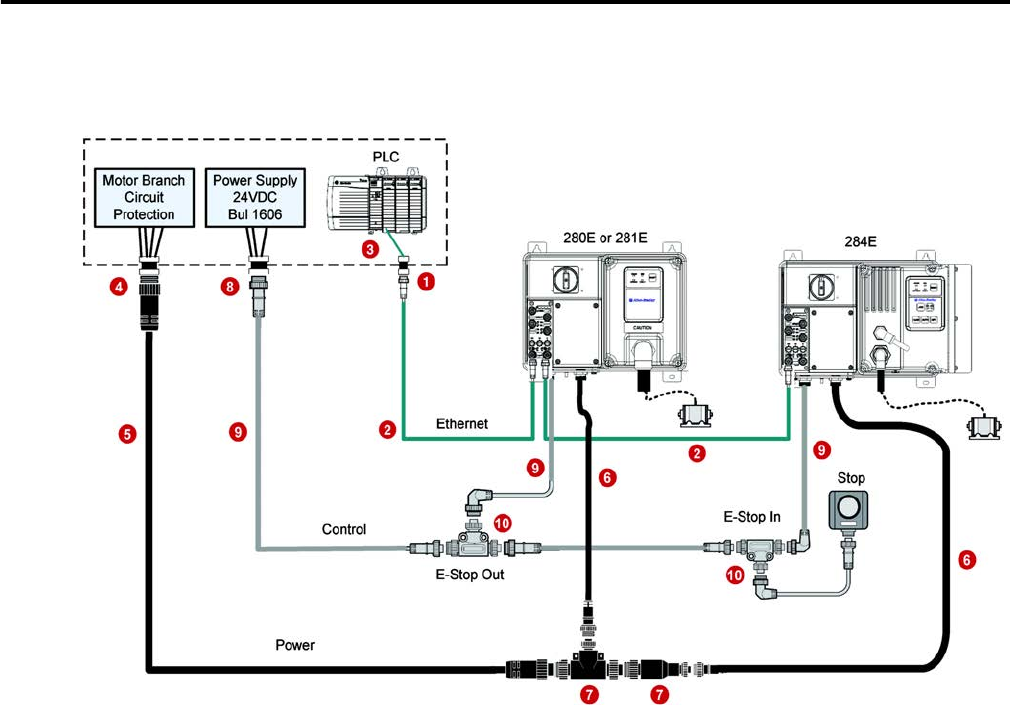

Figure 24 - Ethernet Media System Overview
Connections:
➊ CAT5e Bulkhead Connector and Receptacle – Example Cat.No. 1585A-DD4JD
➋ CAT5e Patchcord, IP67, M12 D-Code, Male Straight, Male Right Angle – Example Cat.No. 1585D-M4TBDE-*
➌ CAT5e, Patch Cable, IP20, RJ45 Male to RJ45 Male – Example Cat.No. 1585J-M4TB-*
➍ Three-Phase Power Receptacles -
Female receptacles are a panel mount connector with flying leads – Example Cat. No. 280-M35F-M1
➎ Three-Phase Power Trunk- Patchcord cable with integral female or male connector on each end –
Example Cat. No. 280-PWR35A-M*
➏ Three-Phase Drop Cable- Patchcord cable with integral female or male connector on each end –
Example Cat. No. 280-PWR22A-M*
➐ Three-Phase Power Tees and Reducer –
Tee connects to a single drop line to trunk with quick change connectors – Cat. No. 280-T35
Reducing Tee connects to a single drop line (Mini) to trunk (Quick change) connector – Cat. No. 280-RT35
Reducer connects from quick change male connector to mini female connector – Cat. No. 280-RA35
➑ Control Power Receptacles - Female receptacles are a panel mount connector with flying leads –
Cat. No. 888N-D65AF1-*
➒ Control Power Media Patchcords – Patchcord cable with integral female or male connector on each end –
Example Cat. No. 889N-F65GFNM-*
➓ Control Power Tees - The E-stop In Tee (Cat. No. 898N-653ST-NKF) is used to connect to the Bulletin 800F On-
Machine E-Stop station using a control power media patchcord. The E-stop Out tee (Cat. No. 898N-653ES-
NKF) is used with cordset or patchcord to connect to the ArmorStart Distributed Motor Controller.
