Rockwell Automation Publication 280E-UM001B-EN-P - July 2012 53
Installation and Wiring Chapter 2
Ethernet and I/O Connections
ArmorStart EtherNet/IP utilizes a sealed D-coded M12 (micro) style
Ethernet connector.

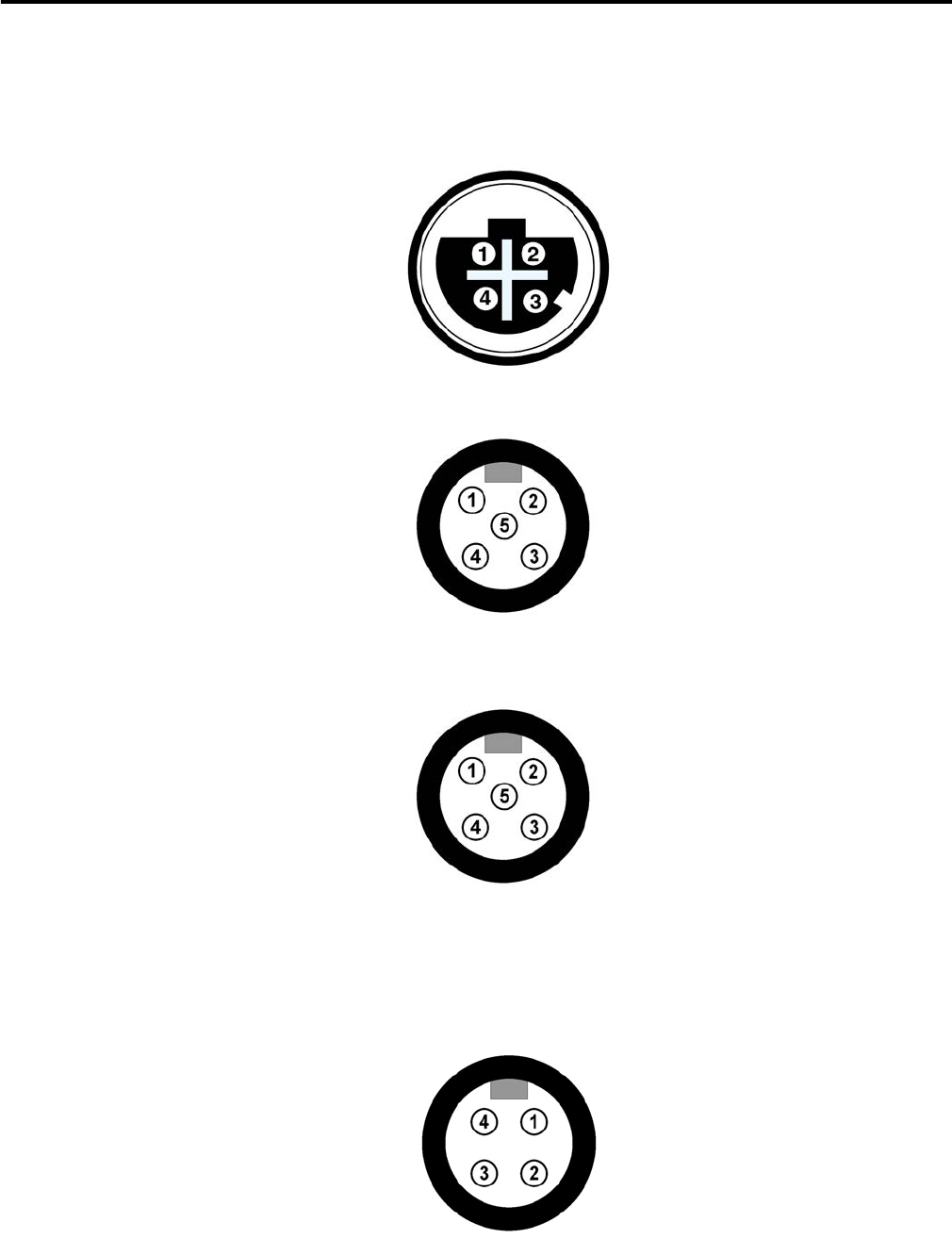

Figure 29 - Ethernet/IP Connector
Figure 30 - I/O Receptacle Input Pin Out (M12)
Figure 31 - I/O Receptacle Output Pin Out (M12)
Power Connections
Figure 32 - External Connections for Motor Connector – Bulletin 284E - 5 Hp and
Bulletin 280E/281E - 3 Hp or less (M22) at 480V AC
M12 Female Ethernet Connector
(view into connector)
Pin 1 - Tx+
Pin 2 - Rx+
Pin 3 - Tx–
Pin 4 - Rx–
Pin 1 - +24V (A3 pwr)
Pin 2 - Input 0
Pin 3 - Common
Pin 4 - Input 1
Pin 5 - NC (no connection)
Pin 1 - NC (no connection)
Pin 2 - NC (no connection)
Pin 3 - Common
Pin 4 - Output +24V DC (A1 pwr)
Pin 5 - NC (no connection)
Pin 1 - T1 (black)
Pin 2 - T2 (white)
Pin 3 - T3 (red)
Pin 4 - Ground (green/yellow)
