76 Rockwell Automation Publication 280E-UM001B-EN-P - July 2012
Chapter 4 Product Commissioning
From this screen you can change the Ethernet Configuration. For example
in the above image the default IP address was changed from 192.168.1.1 to
10.10.10.101. To access the webpage after a power cycle, the new address must
be used.
Parameter Configuration
ArmorStart Ethernet/IP embedded web server provides the user the ability
to view and modify the device configuration without having to access
RSLogix 5000. To view the device configuration from the web server, select the
Parameters folder. For the parameter configuration, the user will login through
the Administrative Settings, or when prompted.

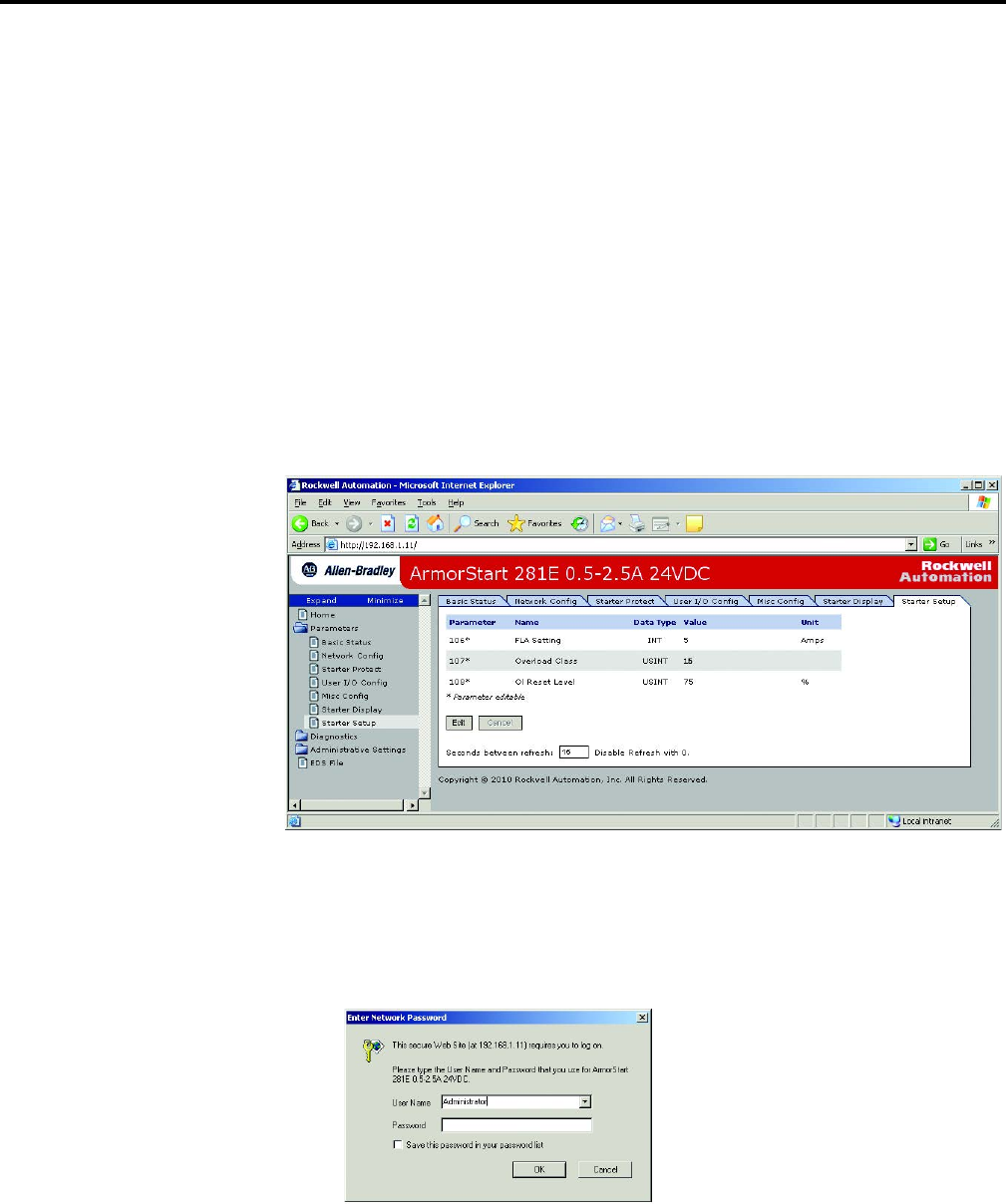

Figure 60 - Starter Setup
In the figure above the Starter Setup parameters are viewed. The user can view
all parameters from this screen. To modify a parameter the user will click the
“Edit” button.
Figure 61 - Enter Network Password
The user will be prompted to enter the default User Name (Administrator).
There is no password set by default. The user is expected to change the User
Name (Login) and Password to avoid unauthorized access to the device
configuration.
