Coordinate System Offsets
Chapter 11
11-12
Example 11.4
Changing the External OffsetThrough G10 Programming
Program Block Comments
G10L2P1O1X-15.Z-10.; defines work coordinatesystem zero
point to be at X-15, Z-10 from the
machine coordinate system zeropoint
G90;
G10L2P0O1X-15.Z-20.;
sets externaloffset of X-15, Z-20moving
work coordinatesystem zero point to be
at X-30, Z-30 from the machine
coordinate system zero point
G90;
G10L2P0O1X-30.Z-30.;
sets externaloffset of X-30, Z-30moving
work coordinatesystem zero point to be
at X-30, Z-30 from the machine
coordinate system zero point
Important: This modification is permanent. The new table values for the
work coordinate systems are saved even when control power is turned off.

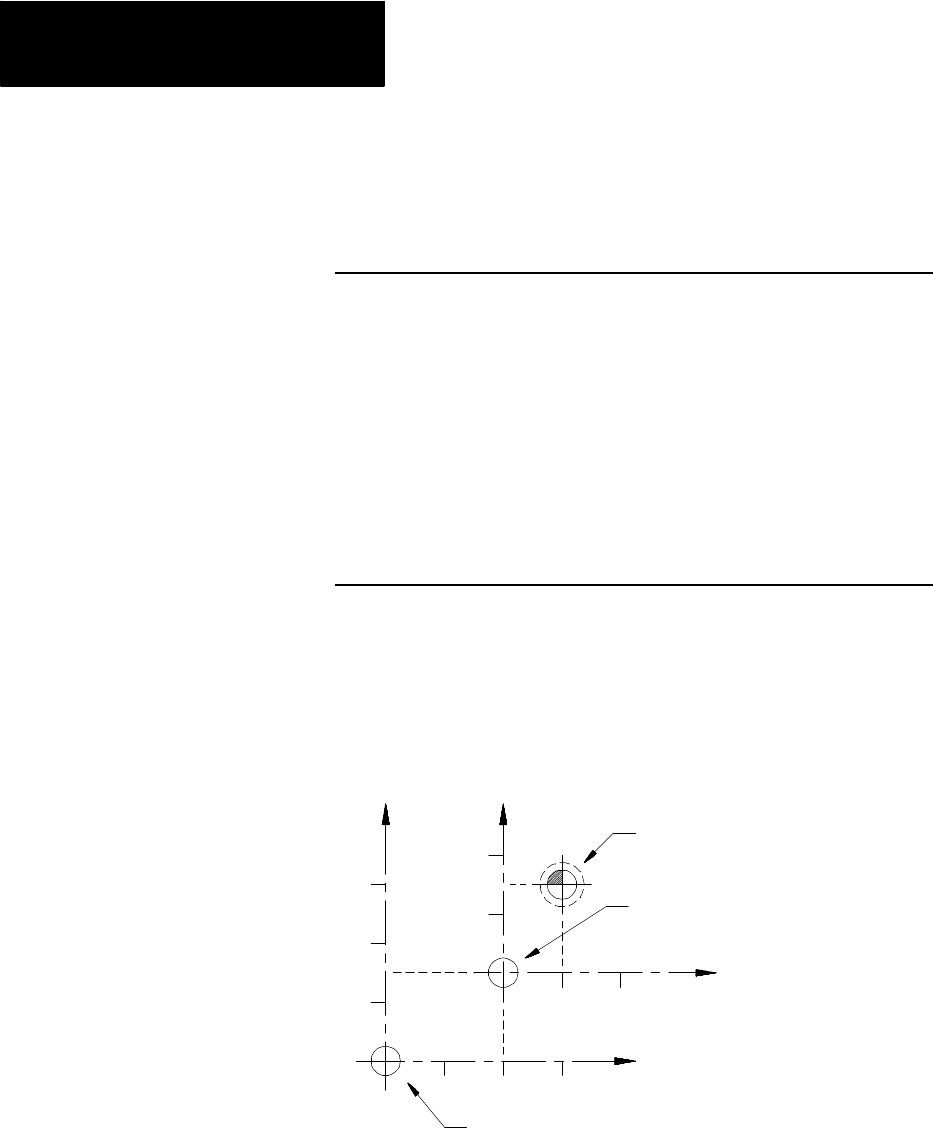

Figure 11.9
Results of Example 11.4
Machine coordinate system
zero point
Workcoordinate system
zero point as defined in
table to be X-15., Z-10.
Workcoordinate system zero point after
execution of the block G10L2P0X-15.Z-20.;
10 20 30
10 20
20
10
20
10
30
X X
Z
Z
