Coordinate System Offsets
11-15

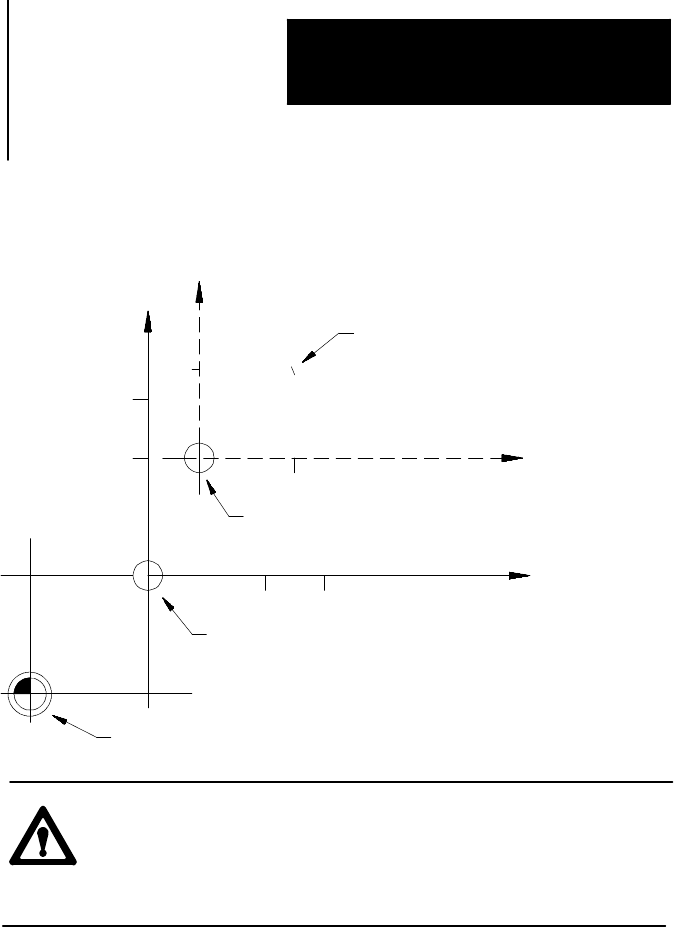

Figure 11.10
Results of Example 12.5
Machine coordinate system zeropoint
Zero point for the G54
work coordinatesystem
New zeropoint established
by theG92 block
10
20 30
10
30
20
Tool position
Z
Z
X
X
CAUTION: G92 offsets are global. Changing from one
coordinate system to another does not cancel the offset. Do not
specify a change in coordinate systems (G54-G59.3) unless the
effects of the offset have been considered.
Example 11.6 shows the effect of changing work coordinate systems while
the G92 offset is active.
