Manual

Chamfering and Corner Radius
Chapter 16
16-3

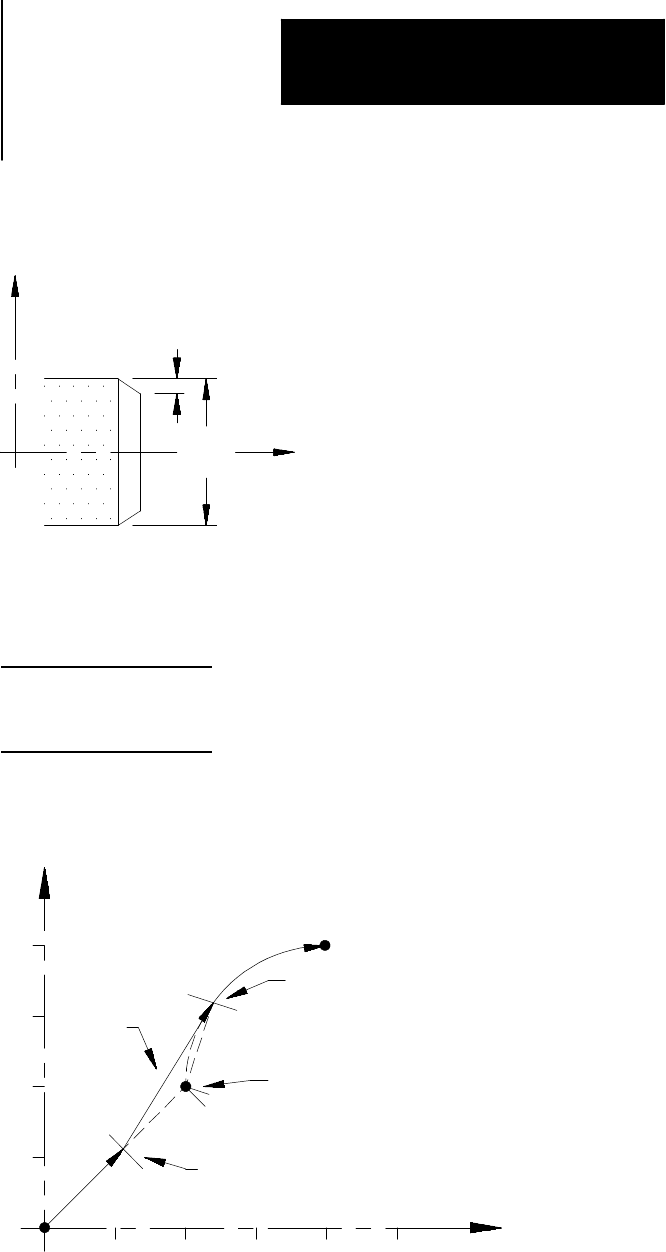

Figure 16.1
Results of Chamfering Using ,C from Example 16.1
X
Z
2.0
20.0
Example 16.2
Linear to Circular Motions with Chamfer
N10X0.Z0.F.1;
N20X10.Z10.,C5;
N30G02X20.Z20.R10;
Figure 16.2
Results of Linear to Circular Motions with Chamfer, Example 16.2
Actual start point of
block N30and end
point of chamfer block
Programmed end point
of block N20
Actual endpoint of block N20and
start point of chamfer block
C
C (chordlength)
N30
Chamfer
block
N20
252015105
20
15
10
5
X
Z
