Manual

Chamfering and Corner Radius
Chapter 16
16-5

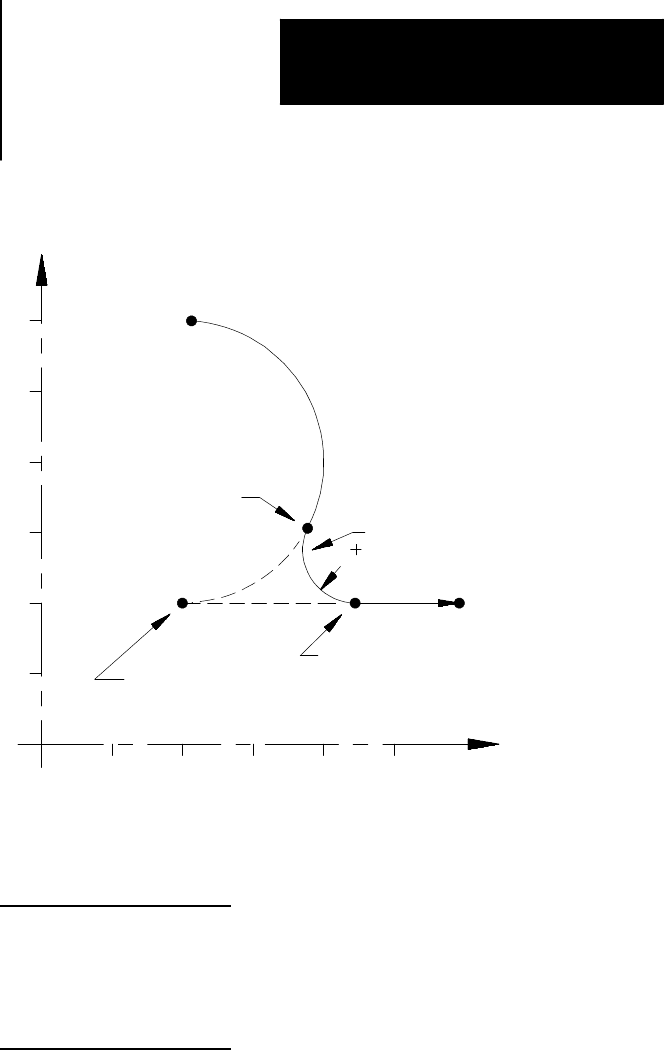

Figure 16.3
Results of Radius for a Circular Path into a Linear path, Example 16.3
Z
X
30
25
20
15
10
5
252015105
Actual start point of
block N30and end
point of corner block
Programmed end
point of block N20
Actual endpoint of
block N20and start
point of corner block
Corner block
R
N20
N30
Example 16.4
Radius and Chamfer with QuickPath Plus
N10Z25.X0.F.1;
N20G01A90,C2.;
N30Z15.X20.A180,R5.;
N40X40.;
N50Z5.;
