Manual

Tool Tip Radius Compensation (TTRC)
Function
Chapter 21
21-42

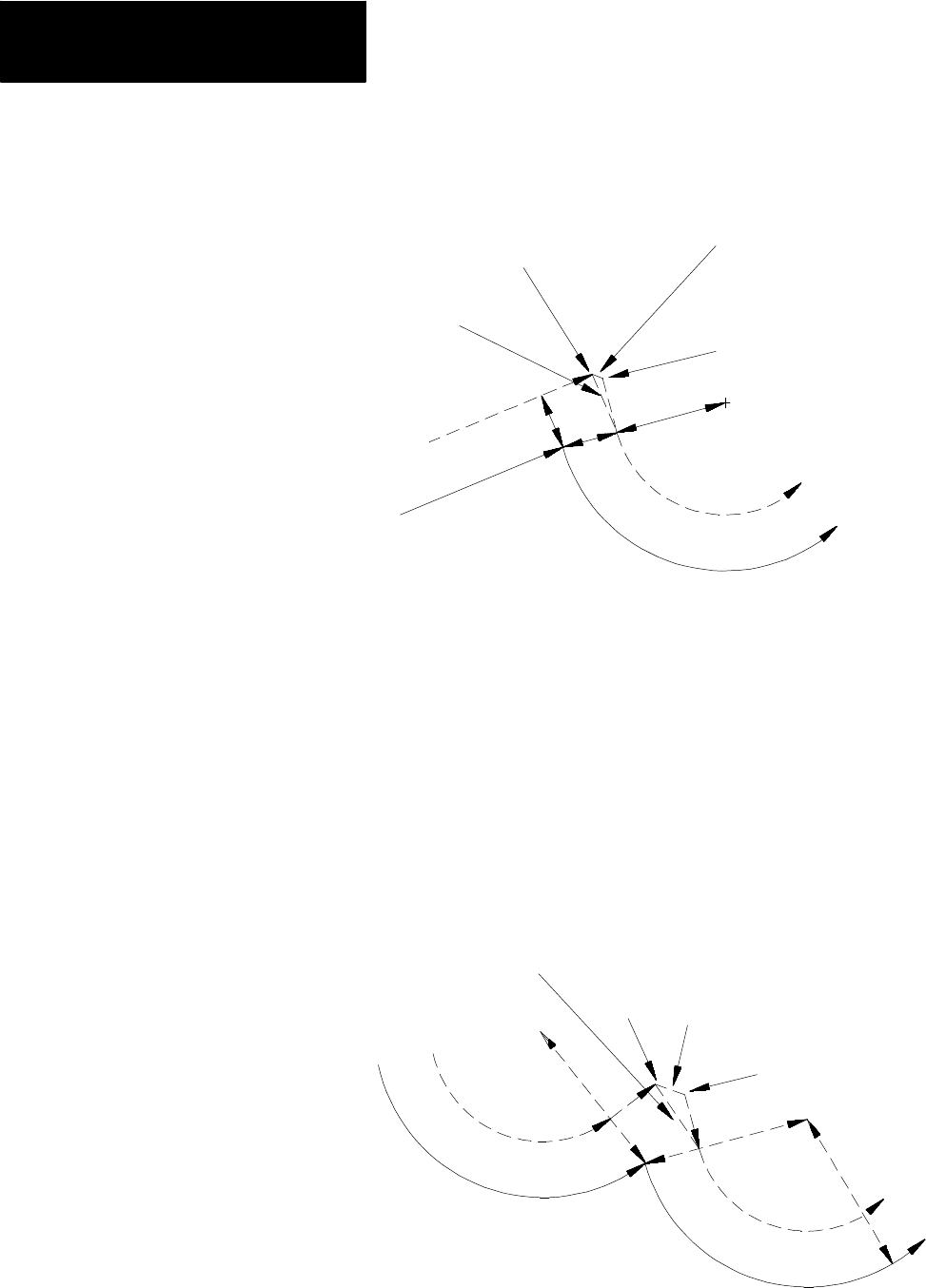

Figure 21.37
Compensation Corner Movement for Two Generated Blocks
This blockis eliminatedif both
hX
1
-X
2
hand hZ
1
-Z
2
hare
less thanAMP parameter
X
2
Z
2
New blockif block
is eliminated
X
1
Z
1
Compensated
Programmed
When the control generates 3 motion blocks, the length of the second
generated block is checked against a minimum allowable length,
determined in AMP by your system installer. The amount of motion of the
second move on the two axes in the compensation plane is compared to the
minimum allowed value for each axis. If both are less than the allowed
value, then the control does not execute the second generated block. The
path of the third generated block is then altered to position the cutting tool
along a linear path to the original end-point of the third generated block.
See Figure 21.38 for a pictorial representation.
Figure 21.38
Compensation Corner Movement for 3 Generated Blocks
New blockif block from X
1
Z
1
to X
2
Z
2
is eliminated
This blockis eliminatedif both
| X
1
-X
2
| and| Z
1
-Z
2
| are
less thanAMP parameter
X
1
Z
1
X
2
Z
2
+
+
