The control is executing a threading- or multiple-pass turning cycle.
Important: Your system installer may have written PAL to disable the use
of the {FRONT PANEL} softkey to change modes. If this is the case, then
changing modes can be performed by using only <MODE SELECT> on the
MTB panel.
Manual mode
To operate the machine manually,
select MAN or MANUAL under <MODE SELECT>
or
press the {FRONT PANEL} softkey.
Use the left/right arrow keys to change the mode select options if using
{FRONT PANEL}.
For details on Manual Mode operation, see chapter 4.

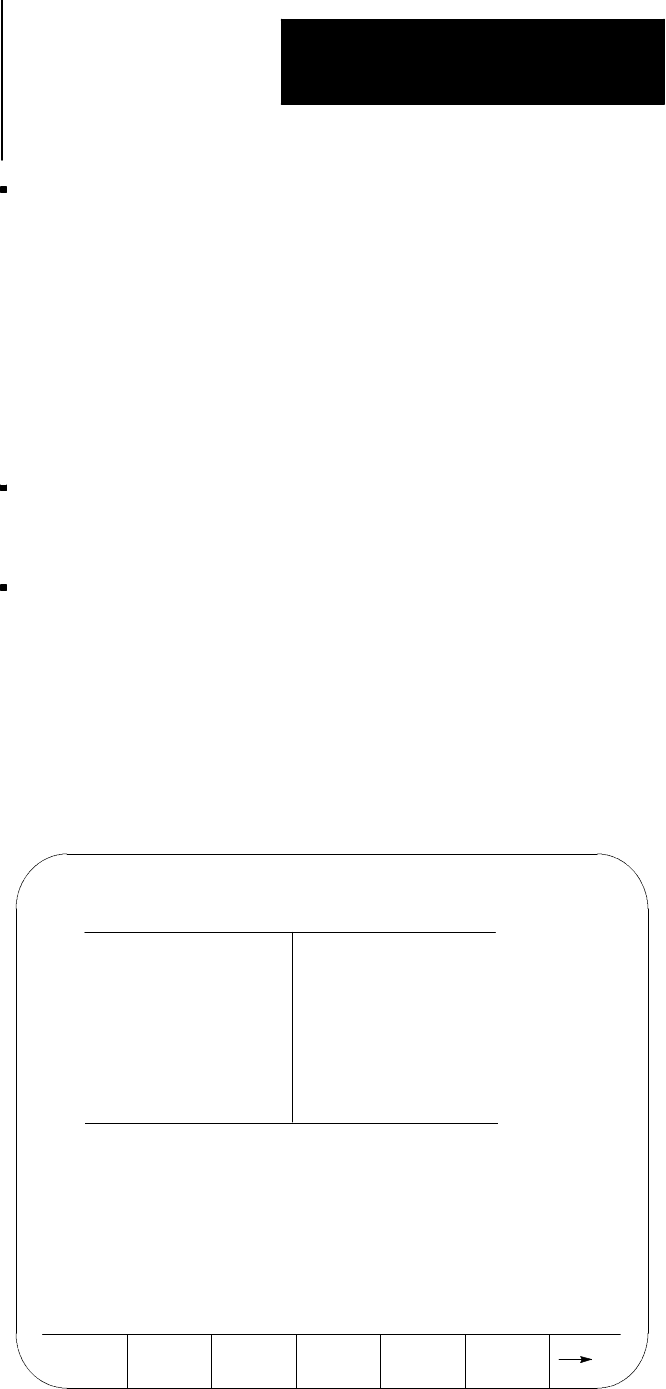

Figure 2.6
Manual Mode Screen
PRGRAM
MANAGE
OFFSET MACRO
PARAM
PRGRAM
CHECK
SYSTEM
SUPORT
E-STOP
PROGRAM[ MM ] F 00000.000 MMPM
Z 00000.000 S 0
R X 00000.000 T 1
C 359.99
MEMORY MAN STOP N 99999
(First 4 blocks of
program shown here)
(PAL messages)
