Single-PassTurning Cycles
Chapter 22
22-10
Example 22.3
StraightFacing Cycle
G90G00X30.Z22.;
G24X10.Z15.F10.
Z13.;
Z11.;
G00;

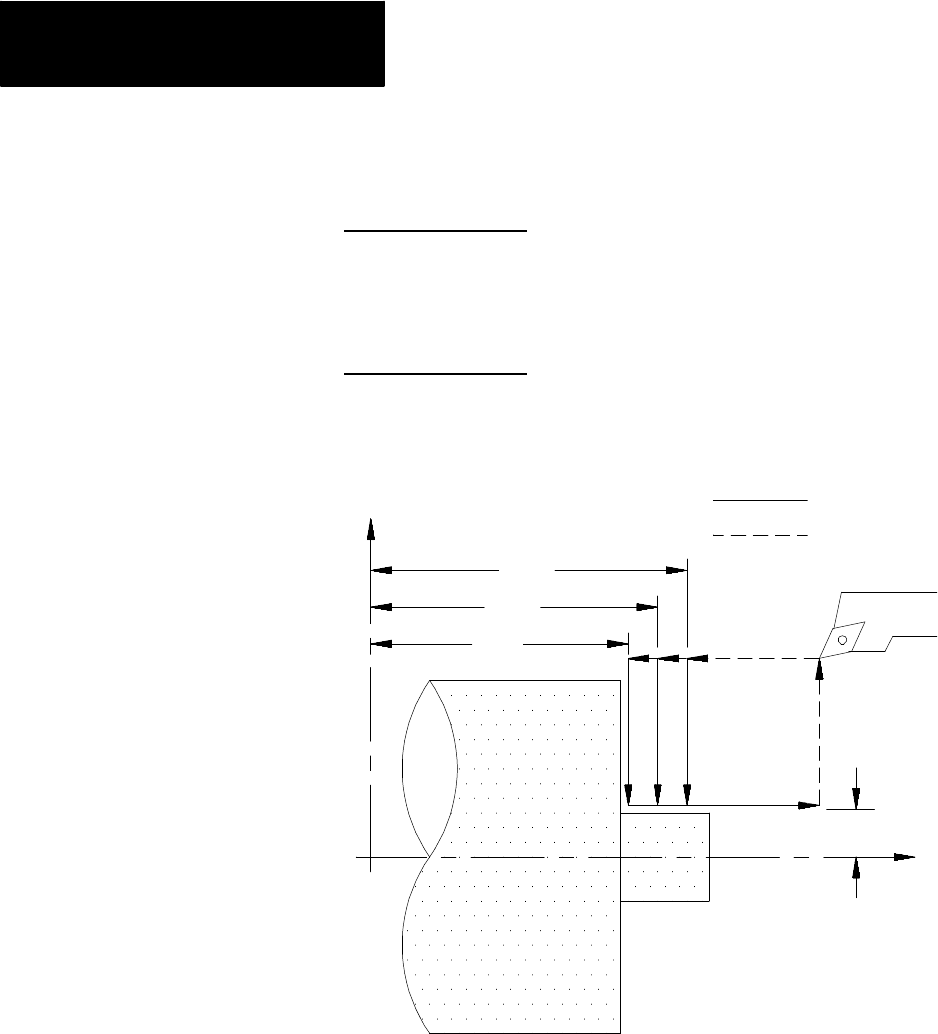

Figure 22.7
Results of Example 22.3
Cutting feed
Rapid feed
15
13
11
X
Z
10
