Grooving/Cutoff Cycles
Chapter 23
23-8

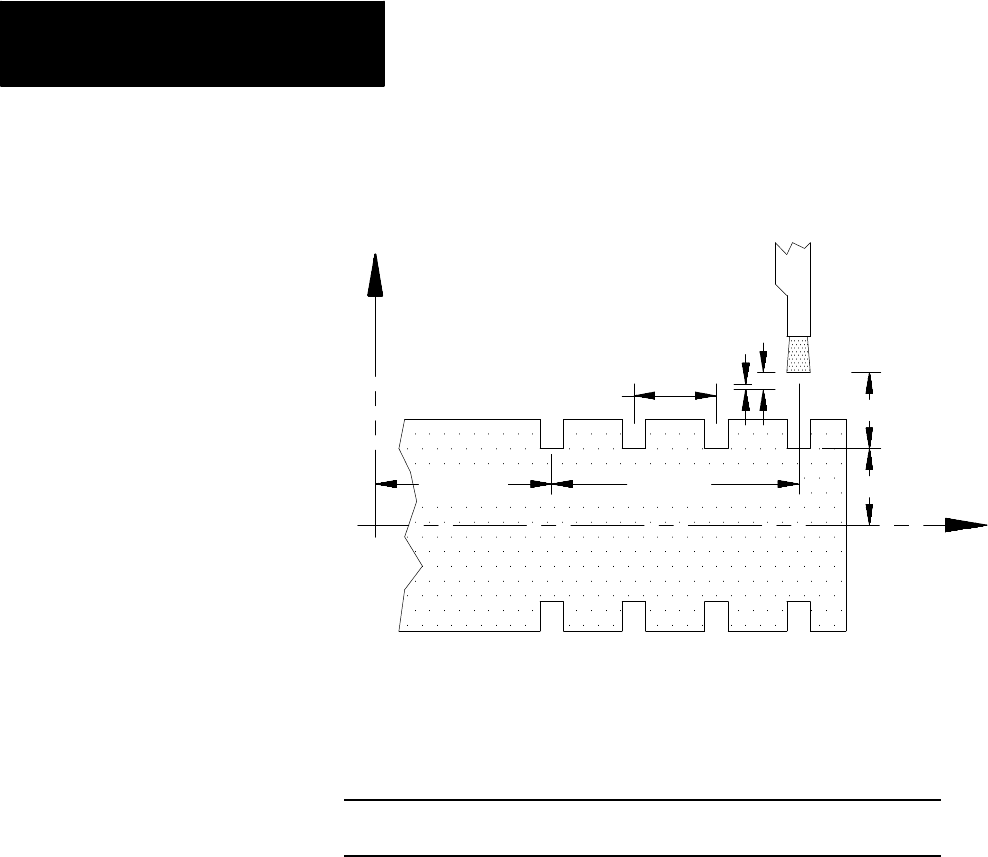

Figure 23.5
G77 O.D. & I.D. Grooving Cycle Parameters
X
I
e
K
Z abs. Z inc.
Z
X inc.
X abs.
Example 23.2
G77 O.D. & I.D. Grooving Cycle Used As a Cutoff Cycle
Absolute Programming Incremental Programming
G00G90X42.Z56.; G00G91X-36.Z-9.;
G77X19.Z21.I-8.K-14.D2.; G77X-23.Z-35.I-8.K-14.D2.;
