The programmable zone feature prevents tool motion from entering or
exiting a designated area. For details on programmable zones, refer to
chapter 12.
This table contains the values for programmable zones 2 and 3. These
values define the boundaries for the programmable zones and are
referenced from the machine coordinate system.
Important: These values may also be entered in AMP by the system
installer. Programmable zone 3 table values may also be
modified by programming a G22 command. Refer to
chapter 12.
To display or alter the values in the programmable zone table, follow these
steps:

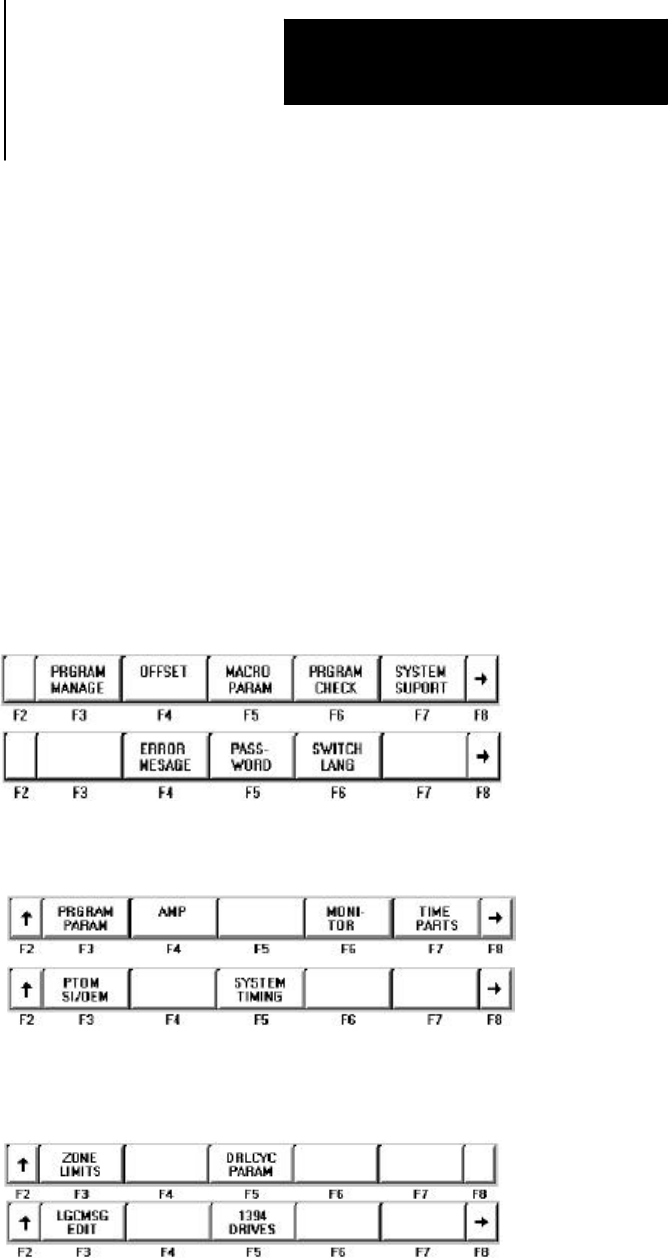

1. Press the {SYSTEM SUPORT} softkey.
(softkey level 1)
2. Press the {PROGRAM PARAM} softkey.
(softkey level 2)
3. Press the {ZONE LIMITS} softkey to display the programmable zone
table as shown in Figure 3.11.
(softkey level 3)
3.5
Programmable Zone Table
