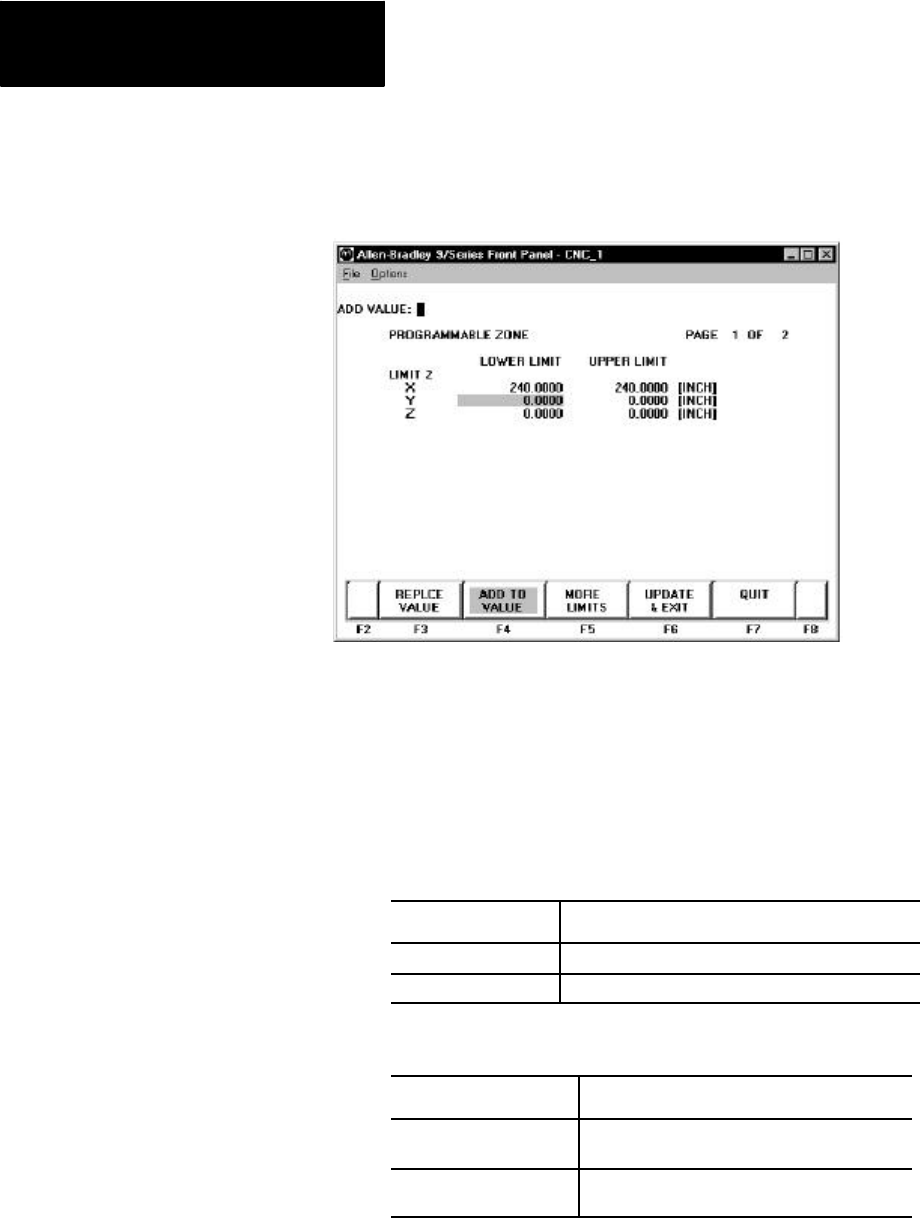

Figure 3.11
Programmable Zone Table
Important: Depending on the currently active program mode,
programmable zone coordinates are displayed in inches or
millimeters for a liner axis and in degrees for a rotary axis.
4. Use the up or down cursor keys to move the block cursor to the data
to be changed. Data located at the cursor appears in reverse video.
Press the {MORE LIMITS} softkey to change pages.
5. You can replace data or add to it.
Press This Softkey: Then:
{REPLCE VALUE} type inthe newvalue. Press [ENTER].
{ADD TO VALUE} type in the new number. Press [ENTER].
6. Complete editing the inhibit zone parameters in two ways:
Press This Softkey: To:
{UPDATE & EXIT} storethe changesmade tothe parametersand
leave the inhibit zone screen.
{QUIT} delete all changes madeto theinhibit zones
this sessionand leavethe inhibit zonescreen.
