SA3100 Drive Configuration and Programming
Step 3. Use the Configure Parameters option to access the Parameter Entry
screens. For the Vector with Constant Power regulator, you must access the
Power Module Data, Motor Data, Feedback Data, and Meter Port Selection
screens (see figure 2.3). For the Volts per Hertz regulator you must access
the Power Module Data, Configuration Data - Setup, Volts/Hz Characteristic,
Feedback Data, and Meter Port Selection screens. An additional screen is
used for configuring Flex I/O. Each of these screens is described in detail in
the following sections.
Note that the AutoMax slot number of the UDC module is shown at the top of
the screens. The screens prompt for specific information depending upon the
item that is being configured.
Step 4. When you have made entries for the drive parameters on all of the parameter
entry screens, you should select the “Verify” option displayed at the bottom of
the screen. If any of the values you entered are invalid or out of range, the
parameter that is invalid will be highlighted so that you can change the value.
When you have finished entering drive parameters, select “Save” to save the
values to the database.
.

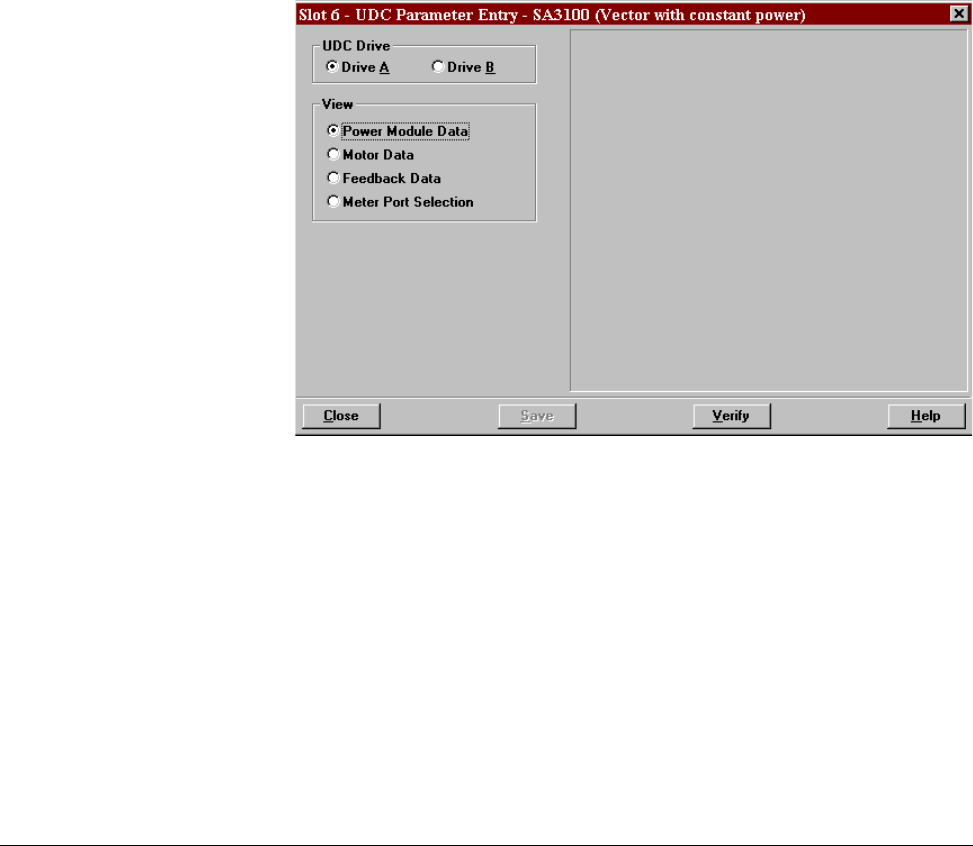

Figure 2.3 – Drive Parameter Entry Screen (Vector with Constant Power)
(This area contains specific parameter data
about the selected device.)
