Dimensions Guide

1
A4817LM
(Metal Levers)
A4817XM
(Cross Handles)
FEATURES COLORS/FINISHES WARRANTY
www.rohlhome.com
• A4917XM has cross handle on volume control and
metal lever on temperature control
• Exposed thermostatic valve with volume control
• Inlets ¾” female NPT
• Inlets 8” center-to-center
• 16 GPM at 45 PSI
• Integrated service stops with screens included
• Must order 1560 or 1565 riser to connect to outlet
• If PEX is utilized, oversize the supply line to 1” for
full flow capacity
Polished Chrome
Polished Nickel
Satin Nickel
Tuscan Brass
Inca Brass
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
Limited Lifetime*
* No Warranty on Tuscan
Brass Finish (TCB)

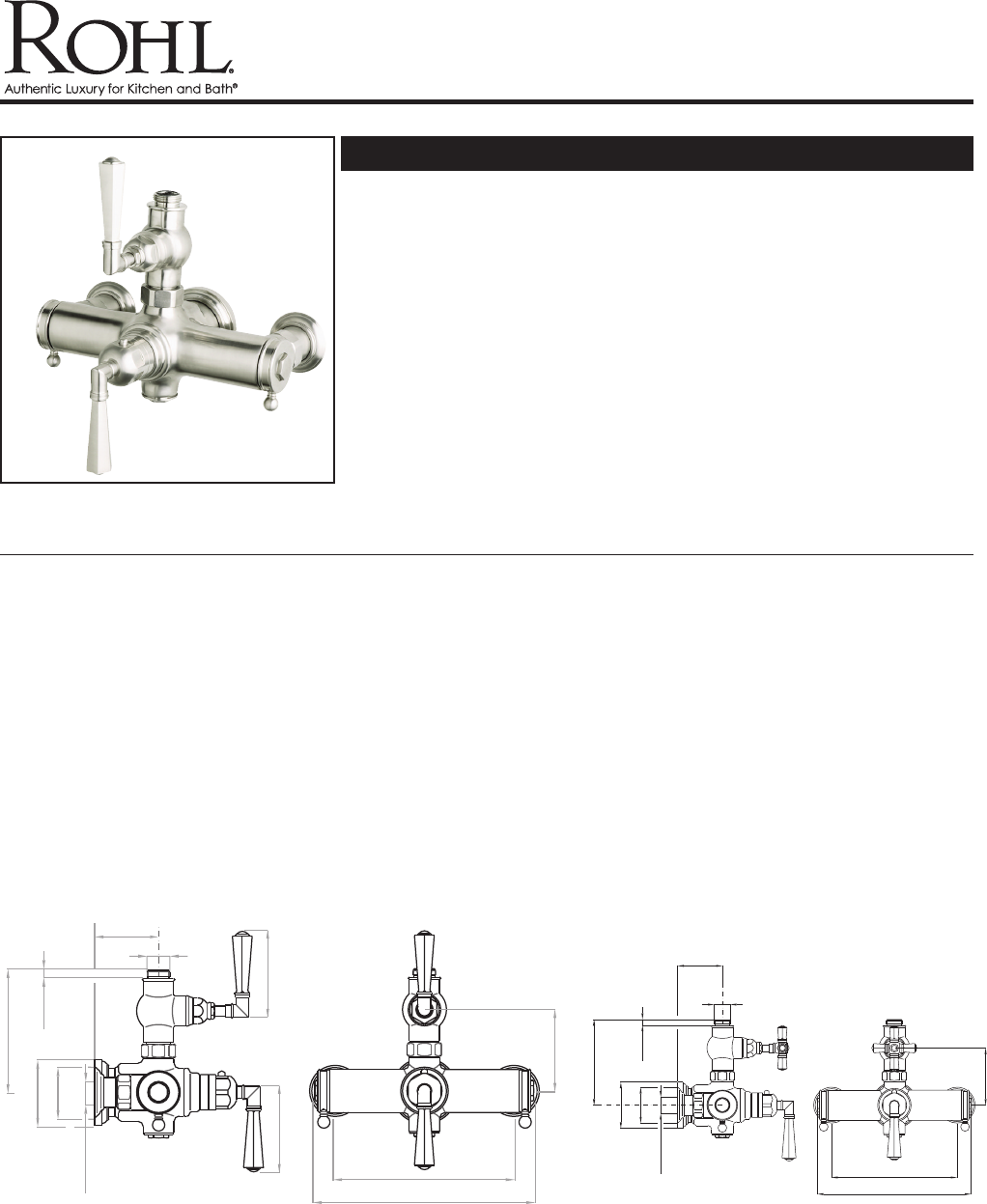

PALLADIAN EXPOSED THERMOSTATIC MIXER
Rohl Country Bath Collection
A4817LM A4817XM
3 2 1 / 3 2 "
8
"
9 1 3 / 1 6 "
F E M A L E
3 / 4 " N P T
2 9 / 3 2 "
2 6 1 / 6 4 "
5 3 1 / 6 4 "
3 / 8 "
G 3 / 4 "
2 7 / 8 "
3 7/8”
3 7/8”
2 7/8"
G 3/4"
3/8"
5 31/64"
Ø2 61/64"
Ø2 9/32"
FEMALE
3/4" NPT
8"
9 13/16"
3 21/32"

Summary of content (10 pages)
