User`s manual

INSTALLATIONS
8 MB770 User’s Manual

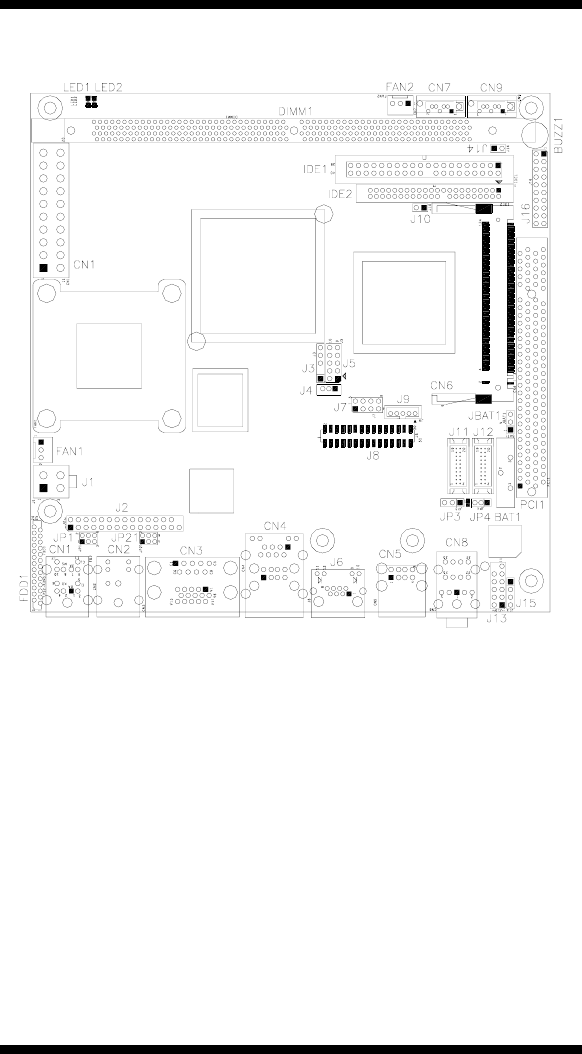

Jumper Locations on MB770
Jumpers on MB770................................................................... Page
JP1: COM3 RS232 +5V / +12V Power Setting.............................. 9
JP2: COM4 RS232 +5V / +12V Power Setting.............................. 9
JP3: LCD Panel Power Selection....................................................9
JP4: LCD Panel Channel Selection ................................................9
J10: Secondary IDE UDMA Selection......................................... 10
JBAT1: Clear CMOS Setting ....................................................... 10
