User`s manual
INSTALLATIONS
12
MB770 User’s Manual

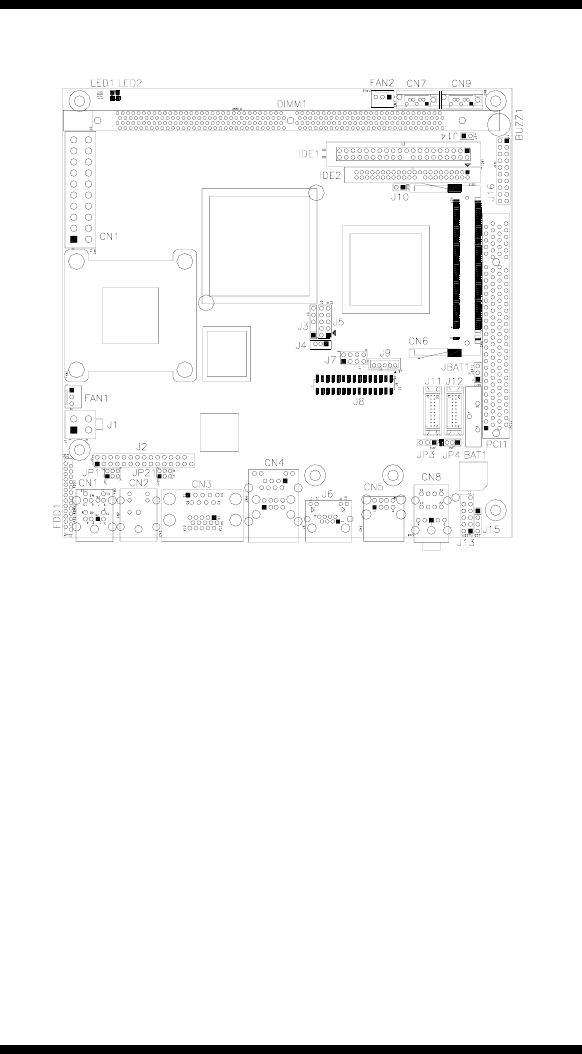

Connector Locations on MB770
Connectors on MB770..............................................................................................................Page
Connector Locations on MB770 ..................................................................................................12
PS2-KBMS: PS/2 Keyboard and PS/2 Mouse Connectors..........................................................13
CN2: TV out RCA and S-Video Connector.................................................................................13
CN3: COM1 and VGA Connector ...............................................................................................13
CN4: 10/100 RJ-45 and USB1/2 Ports.........................................................................................14
CN5: USB3/4 Ports ......................................................................................................................14
J6: Gigabit LAN RJ-45.................................................................................................................14
CN7, CN9: Serial ATA Connectors .............................................................................................14
CN8: Line Out, Line In, Mic Connector ......................................................................................14
FAN1: CPU Fan Power Connector ..............................................................................................14
FAN2: System Fan Power Connector ..........................................................................................14
IDE1, IDE2: Primary and Secondary IDE Connectors................................................................15
FDD1: Floppy Drive Connector...................................................................................................16
J2: Serial Ports ..............................................................................................................................16
J3: IrDA Connector ......................................................................................................................17
J4: Wake On LAN Connector ......................................................................................................17
J5: Digital I/O ...............................................................................................................................17
J7: USB5/6 Port Pin Header.........................................................................................................17
J8: GDVP (DVI) Port Connector .................................................................................................18
J9: LCD Inverter Output...............................................................................................................18
J11, J12: LVDS Connectors (1st channel, 2nd channel) .............................................................18
J13: External Audio Connector ....................................................................................................19
J15: CD-in Connector...................................................................................................................19
J16: System Function Connector..................................................................................................19
CN1: ATX Power Supply Connector...........................................................................................21
CN6: Mini PCI Connector............................................................................................................21
PCI1: PCI Slot (supports 2 Master)..............................................................................................21
