User`s manual

INSTALLATIONS
14 MB770 User’s Manual
[[[[

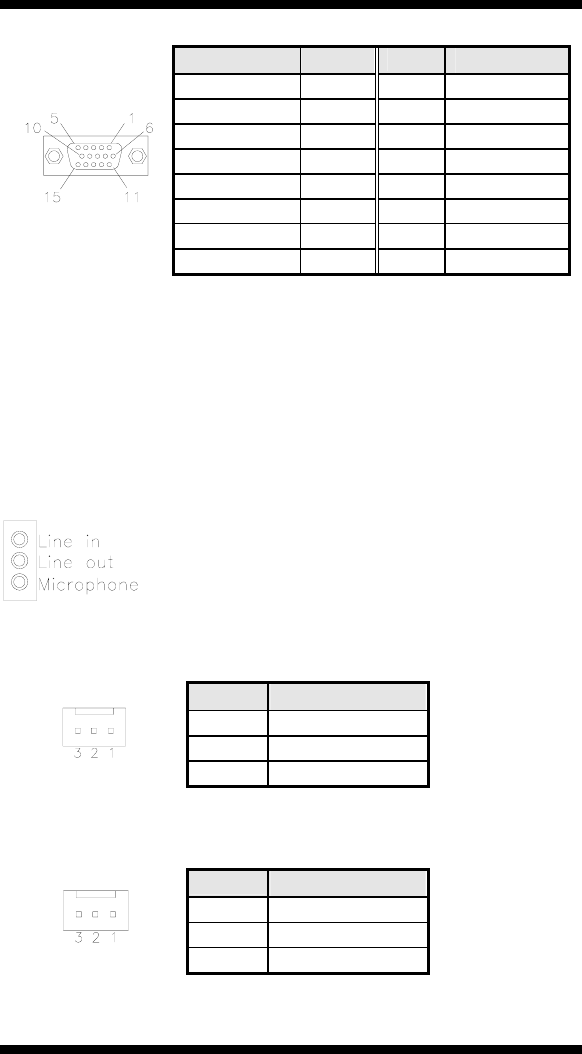

Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
NC 15
CN4: 10/100 RJ-45 and USB1/2 Ports
CN5: USB3/4 Ports
J6: Gigabit LAN RJ-45
CN7, CN9: Serial ATA Connectors
CN8: Line Out, Line In, Mic Connector
FAN1: CPU Fan Power Connector
FAN1 is a 3-pin header for the CPU fan. The fan must be a 12V fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
FAN2: System Fan Power Connector
FAN2 is a 3-pin header for system fans. The fan must be a 12V fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
