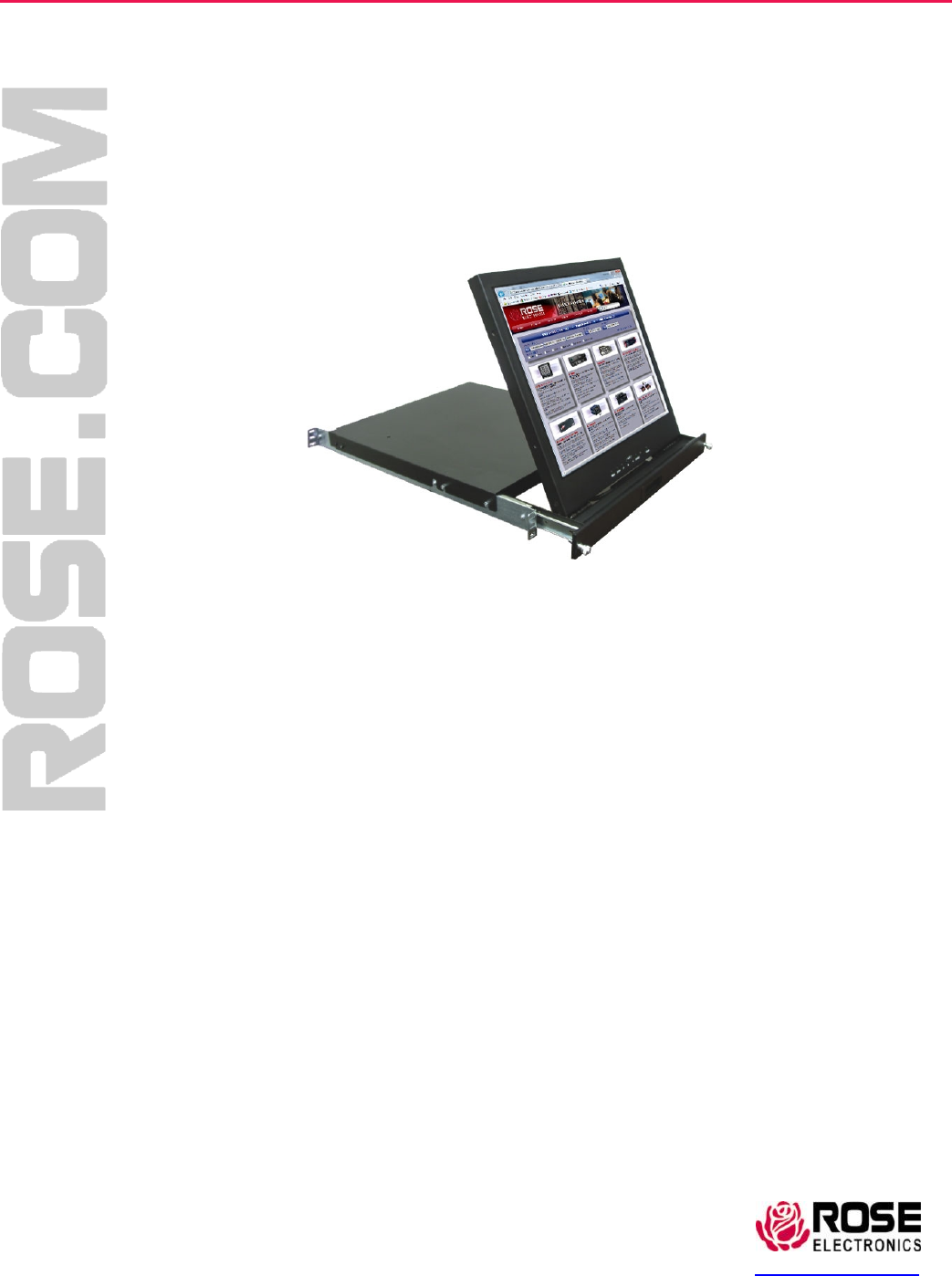

Rackview LCD Monitor INSTALLATION AND OPERATIONS MANUAL Rackview LCD Monitor 17” Rackview LCD Monitor 19” Rackview LCD Monitor 20” Rackview LCD Widescreen Monitor 17” (1080p) Rackview LCD Widescreen Monitor 17” (1920 x 1200) Rackview LCD Widescreen Monitor 19” Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Phone (281) 9337673 WWW.ROSE.
.
LIMITED WARRANTY Rose Electronics warrants the Rackview Product to be in good working order for one year from the date of purchase from Rose Electronics. Should this product fail to be in good working order at any time during this oneyear warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced parts become the property of Rose Electronics.
Table of Contents Safety Instructions Page 5 Pre-Installation and Package Contents Page 6 Rackview Layout Diagram and Dimensions Page 7-9 Installation Page 10-11 OSD (On-Screen Display Control Panel) Operation Page 12-13 PIP and PBP Page 14-15 Product Options Page 16-17 Video Format Page 18 Specifications Page 19 Product Codes Page 19 Technical Support Page 20 Page 4 Rackview LCD Monitor WWW.ROSE.
Safety Instructions Please read all of these instructions carefully before you use the device. Save this manual for future reference. • • • • • • • • • • • Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth. Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
Pre-Installation and Package Contents Before Installation: It is very important to mount the equipment in a suitable cabinet or on a stable surface. Make sure the mounting location has good ventilation, is out of direct sunlight, and away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking: The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition.
Rackview LCD Monitor - Layout Diagram & Dimensions Layout for Rackview LCD Monitor (17”, 19”, 20”) 6 3 Model Product Dimension (W x D x H) approx Packing Dimension (W x D x H) approx Net Weight Gross Weight RV1-LCDA17 441.6 x 500 x 44 mm 17.4 x 19.7 x 1.73 inch 588 x 758 x 120 mm 23.1 x 29.8 x 4.7 inch 10.5 kg 23 lb 16.5 kg 36 lb RV1-LCDA19 441.6 x 500 x 44 mm 17.4 x 19.7 x 1.73 inch 588 x 758 x 120 mm 23.1 x 29.8 x 4.7 inch 12.5 kg 28 lb 18.5 kg 41 lb RV1-LCDA20 439.6 x 650 x 44 mm 17.
Rackview LCD Chassis Dimensions Unit: mm 1mm = 0.03937 inch Rackview LCD Monitor 17” and 19” Page 8 Rackview LCD Monitor Rackview LCD Monitor 20” WWW.ROSE.
Rackview LCD Widescreen Monitor 17” Page 9 Rackview LCD Monitor Rackview LCD Widescreen Monitor 19” WWW.ROSE.
Installation of Rackview LCD Monitor 17” and 19” (including Widescreen) STEP 1 Insert the Left and Right rear-mounting slides into the Rackview Console Drawer. STEP 2 Measure the depth of the front and rear rack rails. Align each rear-mounting slide to a suitable length (depth). STEP 3 Complete the Installation. Fix the Rackview Console Drawer into the Rack using the screws, cage nuts and cup washers provided. Page 10 Rackview LCD Monitor WWW.ROSE.
Installation of Rackview LCD Monitor 20” STEP 1 Attach the left and right mounting brackets to the 19” rack rails. Adjust the mounting brackets to fit the rack. STEP 2 Insert the LCD tray into the mounting bracket. Pull and hold the left and right black arrow buttons on the rails. Return the LCD tray to the park position. STEP 3 Fix the rear kit to the mounting brackets using the screws provided. STEP 4 Complete the installation Fully tighten all screws, front and back, left and right.
On-Screen Display Operation ( OSD ) Rackview 17”, 19” and 20” Standard and Widescreen Models Page 12 Rackview LCD Monitor WWW.ROSE.
Rackview 17” Widescreen models only Page 13 Rackview LCD Monitor WWW.ROSE.
Picture In Picture and Picture By Picture Modes (PIP and PBP) Rackview 17” Widescreen models only 1. Picture-In-Picture (PIP) 2. Screen Size Note, the Rackview 17”/DWS/HD supports up to 1920x1080p. The Rackview 17”/FHD supports up to 1920 x 1200 Page 14 Rackview LCD Monitor WWW.ROSE.
3. Picture-By-Picture (PBP) 4. PIP / PBP Source Page 15 Rackview LCD Monitor WWW.ROSE.
Options for Rackview LCD Monitor, Standard and Widescreen Models a) b) c) d) HDMI - HDMI 1.1, CEA-861-D Audio - 3.5mm analog audio jacks, 2W +speakers AV - S-Video + Composite, BNC (Standard 17”/19”/20” and Widescreen 19” only) 3G/SDI - 3G/HD/SDI video (Widescreen 17” and 19” models only) Select either DVI or HDMI connector. Back panel of the Rackview LCD Monitor showing standard and optional connectors. Back panel of the Rackview LCD Monitor showing standard and optional SDI connectors.
Touchscreen Options a) Resistive and Capacitive Touchscreens Rackview 17”, Widescreen High Resolution (1920x1200) and 19” models only a) Resistive Touchscreens Rackview 17” Widescreen 1080p model Back panel of Rackview LCD Touchscreen Monitor, showing the location of the connectors. Note: For the touchscreen option, the Rackview LCD chassis depth will be extended by approximately 70mm (2.75”) more than the standard chassis depth. A bundled software setup disc is included with this option.
Video Format Rackview LCD Monitor 17”, 19”, 20” DVI-D / VGA Input Rackview LCD Monitor, 17” and 19” Rackview LCD Monitor, 20” Resolution/Refresh Rate Resolution/Refresh Rate --- 1600 x 1200 x 60Hz --- 1440 x 1050 x 60Hz --- 1440 x 900 x 60Hz --- 1360 x 768 x 60Hz 1280 x 1024 x 60Hz / 75Hz 1280 x 1024 x 60Hz / 75Hz 1280 x 960 x 60Hz 1280 x 960 x 60Hz 1280 x 760 x 60Hz / 75Hz 1280 x 760 x 60Hz / 75Hz 1152 x 864 x 75Hz 1152 x 864 x 75Hz 1024 x 768 x 60Hz / 70Hz / 75Hz 1024 x 768 x 60Hz /
Rackview LCD Monitor - Specification Rackview LCD Monitor Dimensions (in) W x D x H (mm) Weight Size Resolution Brightness c d/m2 Backlight Colors Contrast Ratio Viewing Angle H/V Active Area (mm) Screen Surface Response Time - ms PIP Function Touchscreen-USB Video Signal Shock 17” LCD 17” WS LCD 17” HI-RES LCD 19” LCD 19” WS LCD 20” LCD 17.4x19.7x1.73 441.6 x 500 x 44 17.4x 18.9x1.73 441.6 x 500 x 44 17.4x 18.9x1.73 441.6 x 500 x 44 17.4x19.7x1.73 441.6 x 500 x 44 17.4 x18.1x1.73 441.
Technical Support If you are experiencing problems, or need assistance in setting up, configuring or operating your product, consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose Electronics Technical Support Department at: Phone: (281) 933-7673 E-Mail: techsupport@rose.com Web: www.rose.com Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday through Friday.
