[ RX81U-ES Series ] 2.

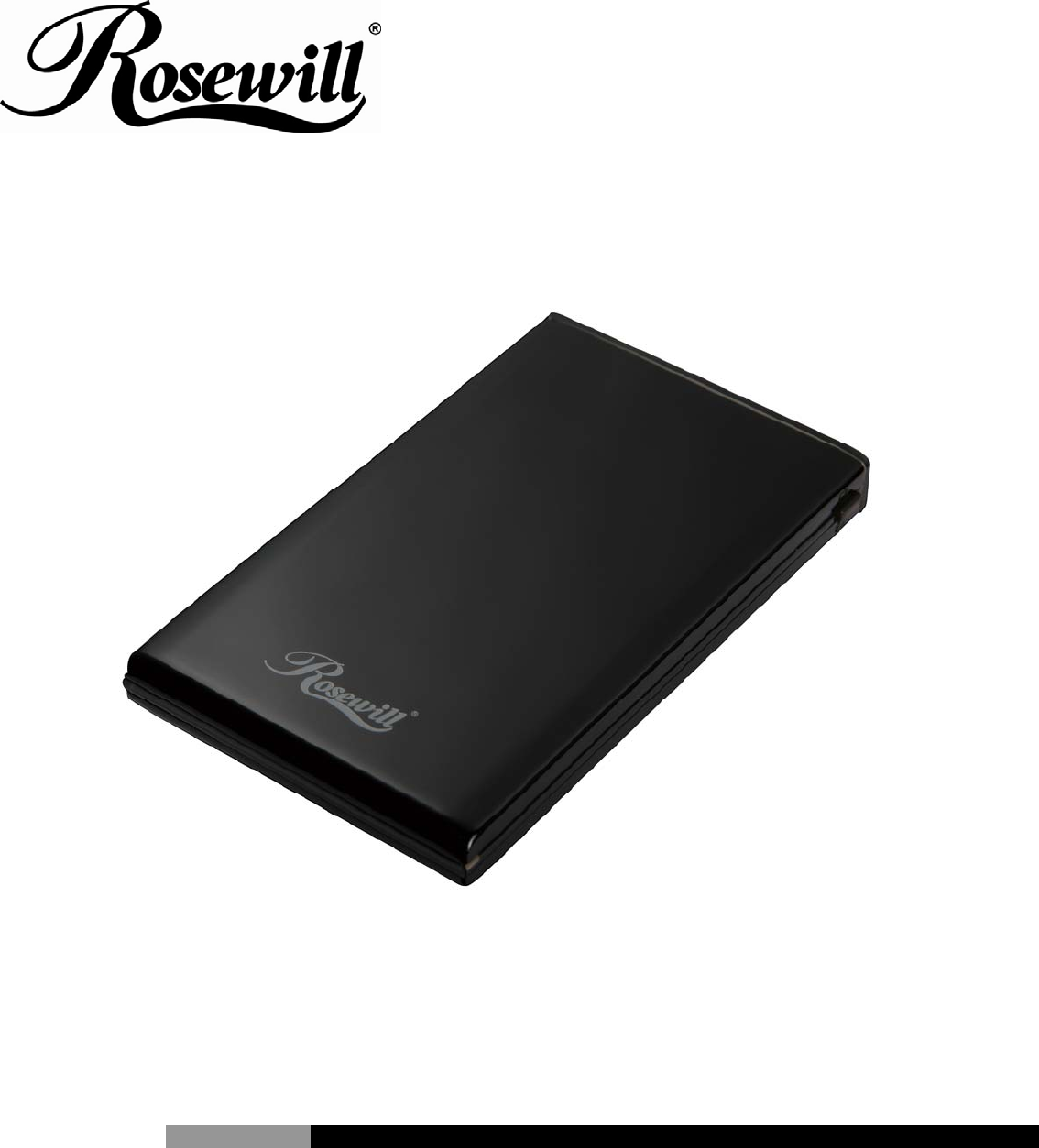

.5” External Enclosure [ RX81U-ES Series ] User Manual Introduction: The enclosure provides a fast and easy way to add more storage space to your Desktop or Notebook computer. The USB 2.0 interface allows reading and writing large files up to 480Mbps per second, and the device is also backward compatible with USB 1.1 connections. System Requirements: - Hardware : A USB-enabled PC - Software : Win98/98SE/ME/2000/XP/Vista. Mac OS 9.
2.5” External Enclosure [ RX81U-ES Series ] User Manual Hardware Installation: 1. Press and slide out the cover to the enclosure 2. Carefully connect the hard drive to the connector from the internal board. Fasten hard drive onto the slide tray with four screws included 3. Connect USB Y cable (main A /B) to an available port on your computer. *When Main A can not supply enough power to initiate hard drive, please connect Aux. A to get extra power. 4.
2.5” External Enclosure [ RX81U-ES Series ] User Manual Disconnecting the hard drive enclosure Windows 98SE Simply unplug the USB cable connecting the enclosure to the host computer Windows ME/2000/XP/Vista 1. Right click on the removable storage icon located in the task bar. Windows XP/Vista: When the safely Remove Hardware message appears, click on it with the left mouse button. Windows ME/2000: When the unplug or eject hardware message appears, click on it with the left mouse button 2.
2.5” External Enclosure [ RX81U-ES Series ] User Manual RX81U-ES-25A : Specifications Hard Drive support 2.5” SATA Connectors USB mini B Female Drive Capacity support 250GB, 5400RPM Maximum Data Transfer Rate 480Mb/s Chipset JM20329 Operation System support Windows 98SE/ME/2000/XP/Vista Mac OS 9.2 or higher Dimensions 130*75*15mm Weight 100g Regulatory Certifications CE,FCC, ROHS RX81U-ES-25B : Specifications Hard Drive support 2.
