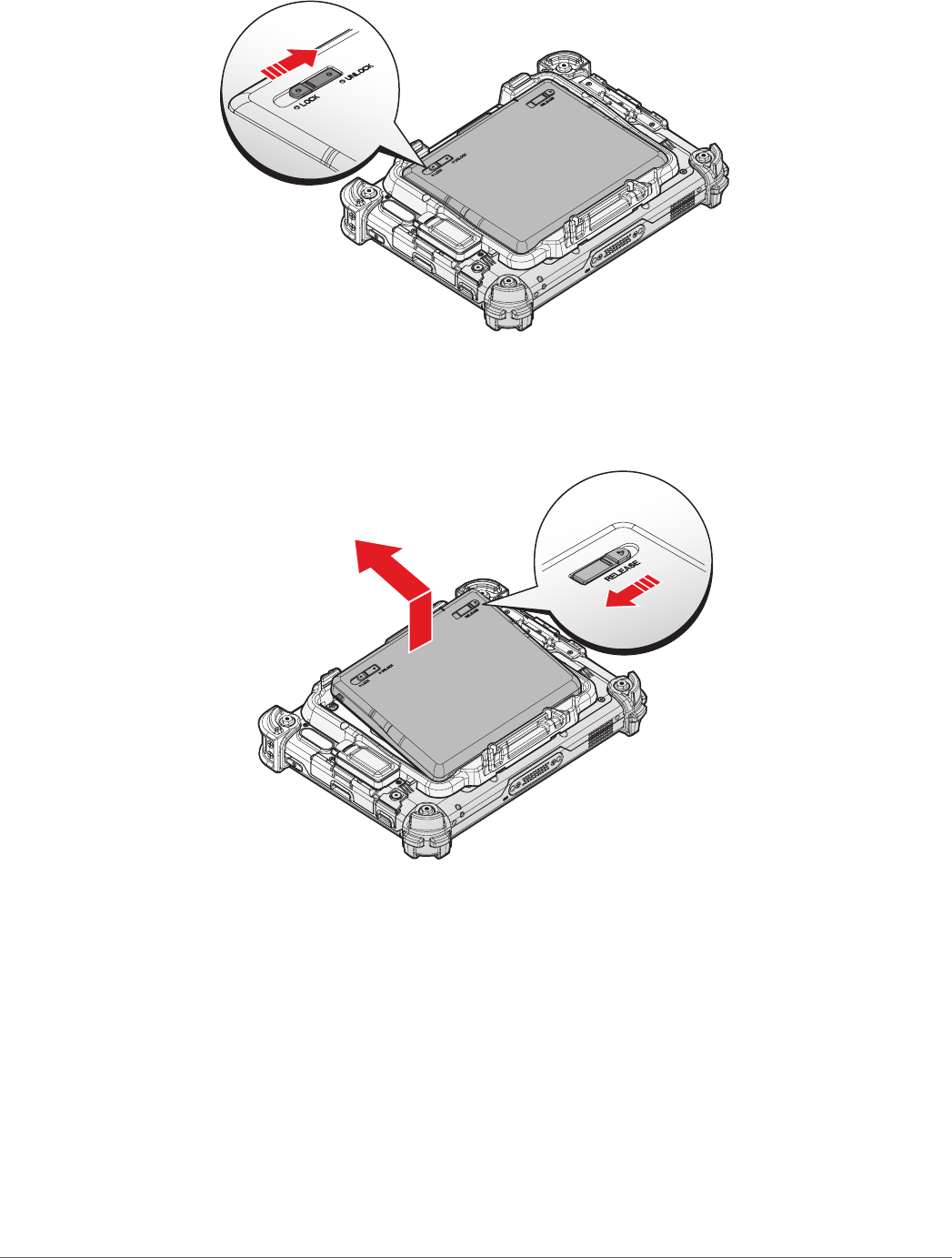

Operation Removing the External Battery 1. Press the locking switch on the top-left side to the unlock position. Figure 66. Unlock the External Battery 2. Press and hold the release button as shown in the image to release the battery. 3. Hold the battery and angle the top side up to remove. Figure 67.
Operation 4. Flip the connector cover up to remove it from the cover placeholder. Figure 68. Removing the External Battery Connector Cover 5. Remove the screws securing the external battery bracket. Figure 69. Removing the Screws 6. Push the external battery bracket forward the bottom of the PM-311B to release the bracket. Figure 70.
Operation 7. Remove the external battery bracket. Figure 71. Removing the External Battery Bracket 8. Install the connector cover in the external battery compartment to protect the battery connector. Figure 72.
Operation Magnetic Stripe Reader and Barcode Scanner The Magnetic Stripe Reader (MSR) and Barcode Scanner modules are optional components. Contact your representative for ordering information. Installing the Module 1. Power off the PM-311B. See “Powering Off the Device” on page 20. 2. Remove the snap-on module connector cover. See “Removing the Snap-on Module Connector Cover” on page 31. 3. Align the module correctly. The barcode scanner sensor must be facing the rear of the device. 4.
Operation Removing the Module 1. Power off the PM-311B. See “Powering Off the Device” on page 20. 2. Remove the screws securing the module. Figure 75. Removing the Screws 3. Grasp the module from both sides and gently pull the module off. 4. Remove the module. Figure 76. Removing the Module 5. Replace the snap-on module connector cover. See “Replacing the Snap-on Module Connector Cover” on page 32.
Operation 4. In Settings, tap the Network icon to display the Networks connection settings. 5. The Wi-Fi menu displays. By default, the Wi-Fi menu is set to Off. Tap the bar next to Off to toggle Wi-Fi to On. This enables the Wi-Fi option. 6. Once Wi-Fi is enabled a listing of all available wireless networks displays. The wireless networks with the strongest signal are atop the list. 7. Select the network you want to connect, and tap the Connect button.
Using BIOS Setup Utility Chapter 4.
Using BIOS Setup Utility Due to the device’s fast boot up and boot down time, there is only a small time frame of a few seconds between the release of the Power button and the opportunity to press the Windows Home key. The App Menu displays. Figure 79.
Using BIOS Setup Utility Installation an Operating System Setting Up a Windows 10 Installation Environment There are several settings in BIOS that must be modified before you can install a Windows 10 operating system. Use the following guidelines to prepare the BIOS environment: Step 1: Enable CSM Support 1. Access the BIOS Setup Utility, see “Accessing the BIOS Setup Utility” on page 52. 2. Navigate to APP Menu > Main > Boot Features. 3.
Using BIOS Setup Utility Step 2 Enable Legacy Boot 1. Access the BIOS Setup Utility, see “Accessing the BIOS Setup Utility” on page 52. 2. Navigate to APP Menu > Main > Boot Features. 3. Locate the Legacy Boot setting and tap on the menu to select On enable legacy boot. Figure 81. Main > Boot Features Step 3: Advanced > Miscellaneous Configuration Save the Settings After you configure BIOS, you will need to save the settings. 1. Navigate to APP Menu > Exit and tap Exit Saving Changes.
Using BIOS Setup Utility BIOS Passwords Setting Up a Supervisor Password To setup a supervisor password, follow the procedure as described: 1. Go to APP Menu > Security > Account’s Password Status. 2. Tap the Enter icon next to Setup the Supervisor Password to access the virtual keyboard. Figure 83. Security > Account’s Password Status 3. Tap the password to use for the Supervisor profile and tap Enter. Figure 84.
Using BIOS Setup Utility 4. Verification of the password is required. Tap the same password again and tap Enter to confirm the new password. 5. Navigate to APP Menu > Exit. Figure 85. Exit Screen 6. Tap Exit Saving Changes to display the confirmation screen. 7. Tap Yes to save the new configuration settings. After setting the Supervisor password, the password is required to access the BIOS Setup Utility. Changing a Supervisor Password 1.
Using BIOS Setup Utility EC and BIOS Updating BIOS This procedure allows you to update and reflash the system BIOS. Both procedures follow the same steps as described in the following. Make sure to protect your device from power loss during the BIOS update procedure to prevent irreparable damage to your system’s mainboard. For this procedure, it is highly recommended to connect the device to the AC adapter to prevent a sudden loss of power during the BIOS updating process. 1.
Using BIOS Setup Utility 6. Tap UPDATE & SECURITY. Figure 87. UPDATE & SECURITY 7. From the UPDATE & SECURITY menu, tap Recovery to continue. Figure 88.
Using BIOS Setup Utility 8. From the RECOVERY screen, tap Restart now. Figure 89. Restart Now 9. Tap Use a device to select a boot up preference. Figure 90.
Using BIOS Setup Utility 10. From the Use a device menu, tap Internal Shell to open the command screen. Make sure connect the PM-311B to the AC adapter to prevent a sudden loss of power. Figure 91. Internal Shell 11. In the command screen, enter fs1: to select the USB device already connected to the device. The command directs you to the USB device’s root menu. Figure 92. Internal Shell Command Screen 12. If the BIOS file is in a folder and not in the root directory, navigate to the target folder. 13.
Using BIOS Setup Utility Updating EC Connect the PM-311B to the AC adapter to prevent a sudden loss of power. 1. Updating EC requires the use of the Internal Shell Command menu, refer to steps 1 to 12 of “Updating BIOS”. 2. Enter the EC source file folder. 3. In the source folder, enter f. 4. Do not turn off your device or interfere with the reflash process until the process is complete. The system reboots once the process is completed.
Using the DashON Utility Chapter 5. Using the DashON Utility Overview The DashON resident program is designed to provide near-instant access to your device’s settings and configuration within a single, easy to use interface. The following information illustrates and describes the various settings available for configuration through the DashON menus. Important: Do not terminate or remove the DashON program manually or the ambient light sensor and the function buttons will be malfunction. Figure 93.
Using the DashON Utility Function Description Power Plan Manage how your tablet uses power. Info Viewer View system specifications. The menu is for display only. Display Switch Choose a display mode when connect to another output device. Button Setting Pre-defined functions settings. Supports function button customizing. Camera Use the rear camera to take photos and videos.
Troubleshooting Chapter 6. Troubleshooting Use the troubleshooting tables in this section to fix problems with the Wi-Fi connection, 802.1x security, or general problems with operating the computer. If you send the computer in for service, it is your responsibility to save the computer data and configuration. RuggON is responsible only for ensuring that the hardware matches the original configuration when repairing or replacing the computer.
Troubleshooting Troubleshoot Operating the Computer Use this section to troubleshoot problems that may prevent you from being able to operate the computer. Q. A. Q. A. You press the Power button and nothing happens. Make sure that power is connected to the computer. The computer appears to be locked up and you cannot enter data. Restart the computer. Call Product Support Simple instructions please contact the dealer, contact ruggon representative, or leave a message visit the RuggON website at www.
Maintenance Chapter 7. Maintenance Cleaning the Device Danger to electric shock when cleaning or maintaining the PM-311B. To avoid electric shock, turn the PM-311B off and disconnect it from the power supply before cleaning or maintaining it. Housing The housing of the PM-311B is best cleaned with a damp cloth. Use compressed air, a high-pressure cleaner or vacuum cleaner may damage the surface.
