String Trimmer Operator's Manual

ManualsBrandsRyobi Outdoor ManualsTrimmerCS30, SS30, BC30

1

2

3

4

5

6

7

8

9

Page 8

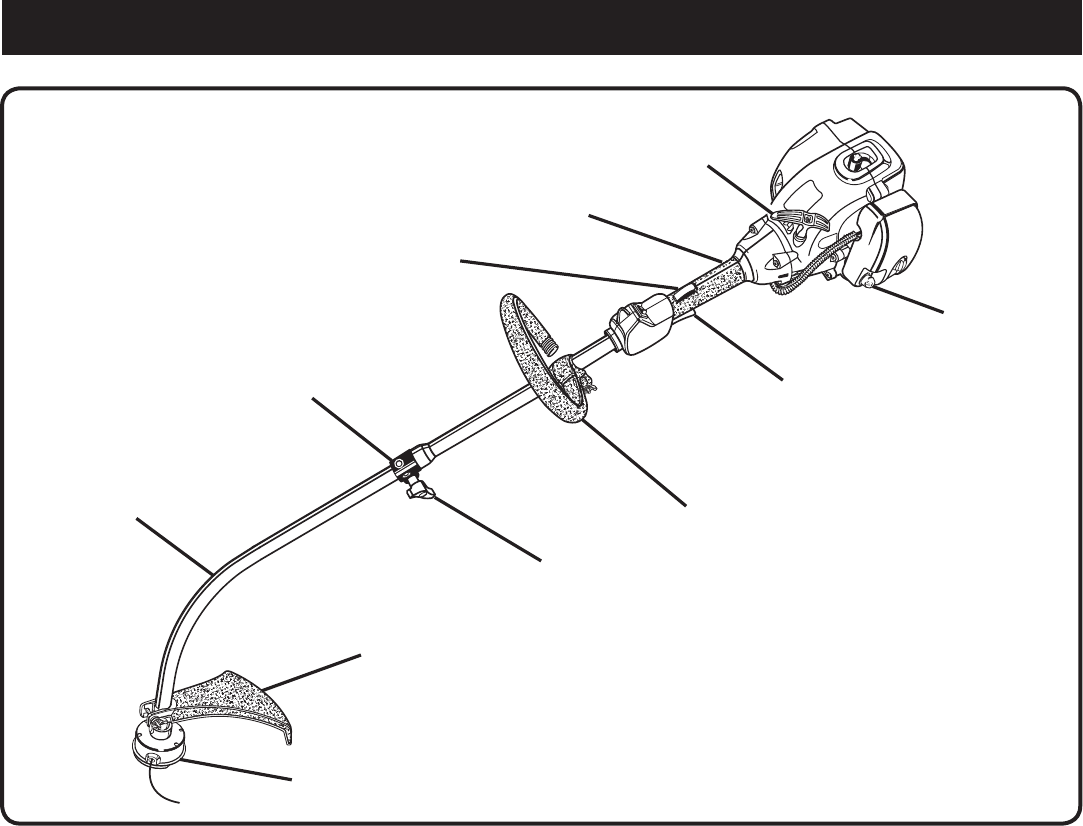

FEATURES

Fig. 1a

THROTTLE TRIGGER

STARTER

GRIP AND

ROPE

FRONT HANDLE

COUPLER

DRIVE SHAFT

HOUSING

STRING HEAD

CURVED SHAFT GRASS

DEFLECTOR

PRIMER

BULB

KNOB

CS30

(RY30020, RY30023)

REAR HANDLE

TRIGGER

LOCK
