INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
(OVER)
P/N 75-5044
1994-2002 Dodge
Ram 2500 & 3500
5.9L Cummins Turbo Diesel
PARTS LIST
QTY DESCRIPTION QTY DESCRIPTION
1 (P) Intake Tube 1 (E) # 80 Hose Clamp
1 (H) Air Box 3 (K) # 72 Hose Clamp
1 (I) Air Box Adapter 1 (M) # 64 Hose Clamp
1 (D) Air Filter 2 (J) 5/16-18 SS Screw
1 (Q) Hump Adapter 1 (C) Clear Lid
1 (N) Step Adapter 5 (B) SS Concave Washer
3 (F) 1/4-20 Lock Nut 5 (A) SS 10/24 Phillips Screw
3 (L) M6 Lock Nut 3 (G) Fender Washer
3 (R) Rubber Spacer
TOOLS REQUIRED
10mm Wrench or Socket
13mm Wrench or Socket
5/16” Nut driver or
Flat Blade Screwdriver
Phillips Screwdriver
Your S&B Air Filter P/N
KF-1035 is factory oiled
and ready to use.
When serviced it will
require 87g (main body)
plus 17g (top) of S&B
Filter Oil.

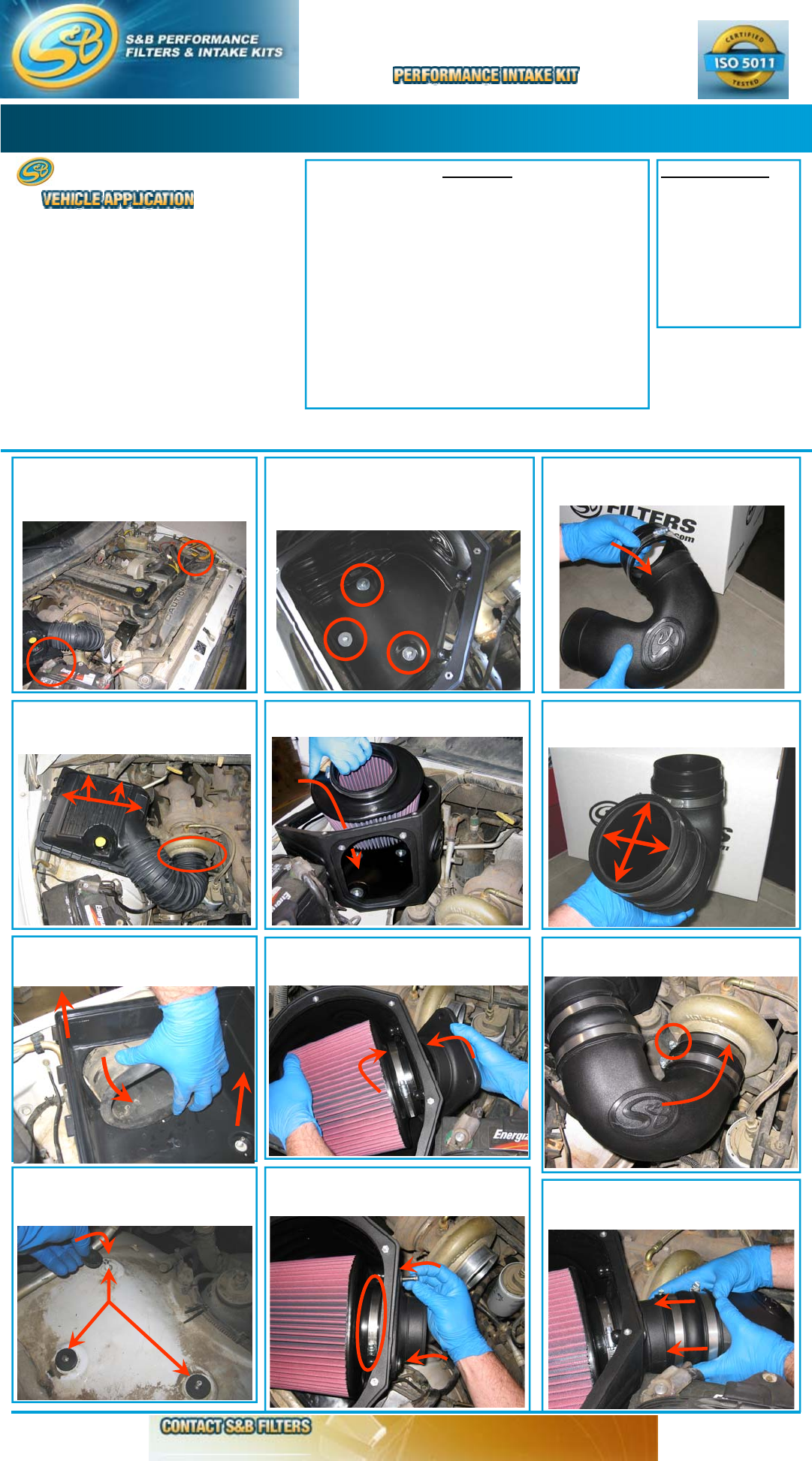

1. With the ignition switched off, place
vehicle in Park and or set Parking Brake.
Then disconnect both negative battery
cables.
2. Loosen the hose clamp at the turbo inlet,
then unclip the air box top and remove the
OE intake tube and air filter.
3. Remove the restrictive factory air inlet
from the inner fender then pull up to remove
the air box from the vehicle.
4. Place a rubber spacer (R) over each of
the factory studs on the inner fender, then
set the S&B air box (H) in place over the
studs.
6. Place the S&B air filter (D) into the S&B air
box (H).
5. Determine whether your vehicle has SAE or
Metric threaded studs and use the appropriate
1/4-20(F) or M6(L) lock nuts supplied and fender
washers to secure the S&B air box (H) to the
inner fender.
7. Attach the S&B Filter Adapter (I) to the S&B
Air box (H) while slipping the air filter over the
flange at the same time.
8. Secure the adapter using the 5/16 screws
(J) provided.
Then tighten the # 80 hose clamp
to secure the filter to the adapter (I).
10. Slide the Hump Adapter (Q) over the large
end of the S&B Intake Tube (P) until almost
flush with the end of the tube.
11. Install the S&B air intake tube (P) to the
turbo inlet, secure the # 64 hose clamp (M).
12. Slide the S&B Hump Adapter (Q) over the
filter adapter (I), center over the gap between the
tubes and secure the #72 Hose Clamps (K).
∗ Kit may not fit vehicles with the following
Aftermarket Parts installed.
∗ Body Lift
∗ Custom Hood
∗ Turbo Upgrade
∗ Intercooler Upgrades
[phone] Phone [phone] FAX
www.sbfilters.com
9. Slide the Step Adapter (N) over the small
end of the S&B Intake Tube (P) and secure the
# 72 Hose Clamp (K).
