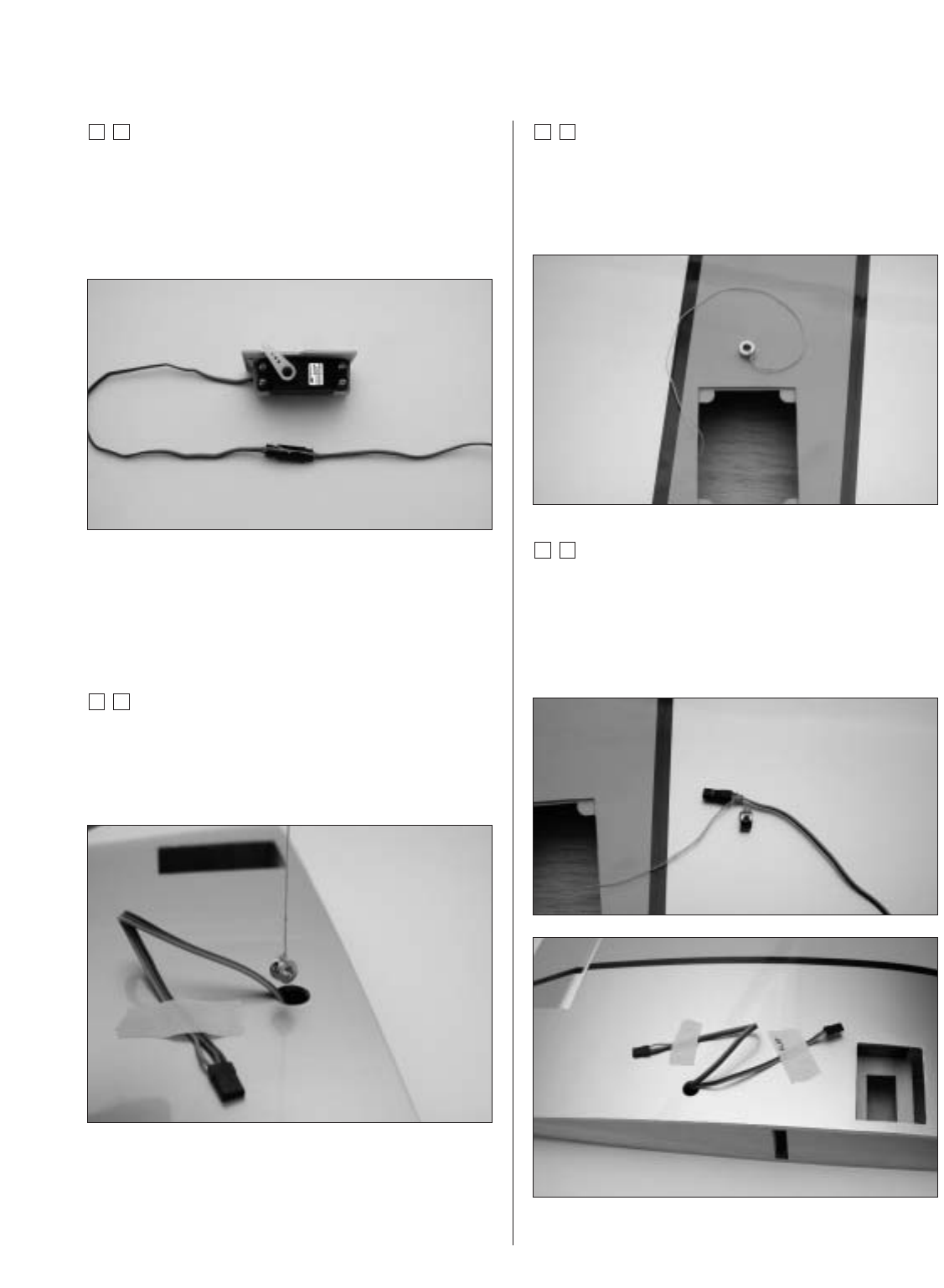

Section 5: Flap Servo Installation
Step 7
Connect a 6" Servo Lead extension (JRPA094) to the
servo lead. Secure the connectors by tying them in a
knot using dental floss (as shown) or by using a
commercially available connector clamp to prevent
the servo leads from becoming disconnected.
Note: It is always a good idea to secure the
servo connector and servo extension together
to prevent the wires from becoming unplugged
inside the wing.
Step 8
Use a piece of string with a small weight (such as a
wheel collar) attached as a device to pull the servo lead
through the wing. Lower the weight through the opening
at the root of the wing as shown.
Step 9
Stand the wing on the tip and allow the weight to drop
through the wing until it appears in the opening for the
servo leads. It may require a little help to pass by the
wing ribs in the form of slightly shaking the wing.
Step 10
Tie the string onto the servo extension. Gently pull the
extension through the wing using the string. Untie the
string when the servo lead has been pulled through. Use
tape to secure the servo lead to the wing to prevent it
from falling back into the wing panel.
