4C Horizontal Mailboxes – 3700 Series
REAR LOADING Installation Instructions
U.S.P.S. APPROVED
With its high-security design and quality construction, Salsbury’s 3700 series USPS approved 4C horizontal mailboxes will provide years of
maintenance free service. These units meet all the requirements of USPS-STD-4C, the new high-security standard developed by the United
States Postal Service.

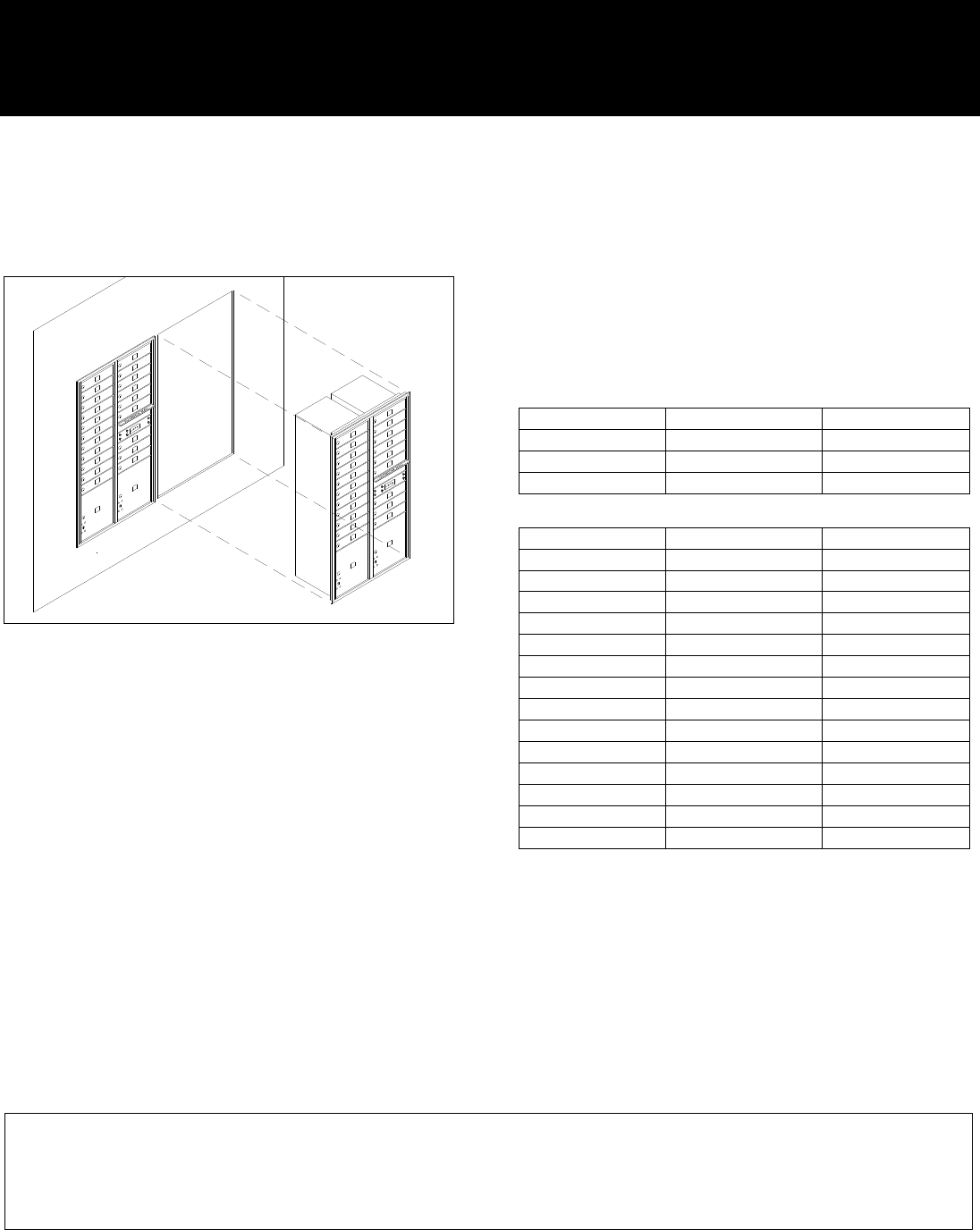

Illustration 1 - Typical Installation
Preparatory Steps
1. Have mailboxes and instructions on hand before starting wall
construction.
2. Unpack and review contents of shipping cartons.
3. Gather tenant and parcel locker keys and store in a secure place.
4. Read installation instructions document thoroughly.
5. Determine rough opening size(s).
6. Determine rough opening location above finished floor.
7. Determine framing configuration and location.
8. Procure materials for wall construction.
Rough Opening Dimensions
Each unit requires a separate opening. Each pair of units will have a
2x4 stud and (2) 2x2 studs separating them. The trim frames cannot
be butted together. There will be a space between edges of trim
frames of approximately 3/4”
Calculation Of Space Required for Multiple Units
For overall width of the installation, add all of the stud spacings and
subtract ¾”. For overall height of units, see chart in next column.
Dimensions – REAR LOADING
WIDTHS
1 COLUMN
2 COLUMN
Overall
16-3/8”
31-1/8”
Rough Opening
15-5/8”
30-3/8”
Stud Spacing
17-1/8”
31-7/8”
HEIGHTS
OVERALL
ROUGH OPENING
Maximum Height
56-3/4”
56”
15 Doors High
55”
54-1/4”
14 Doors High
51-1/2”
50-3/4”
13 Doors High
48”
47-1/4”
12 Doors High
44-1/2”
43-3/4”
11 Doors High
41”
40-1/4”
10 Doors High
37-1/2”
36-3/4”
9 Doors High
34”
33-1/4”
8 Doors High
30-1/2”
29-3/4”
7 Doors High
27”
26-1/4”
6 Doors High
23-1/2”
22-3/4”
5 Doors High
20”
19-1/4”
4 Doors High
16-1/2”
15-3/4”
3 Doors High
13”
12-1/4”
Wall Construction
Particular attention must be paid to wall framing to provide a strong
and secure attachment of the mailbox units. Stud spacing must be
accurate to ensure that there is minimum space between the studs
and the mailbox frame and minimum mailbox frame distortion when
the fasteners are tightened between the frame and the studs. Studs
must be installed plumb and square to further ensure proper fit of the
mailboxes.
