MDR8 System Set-Ups

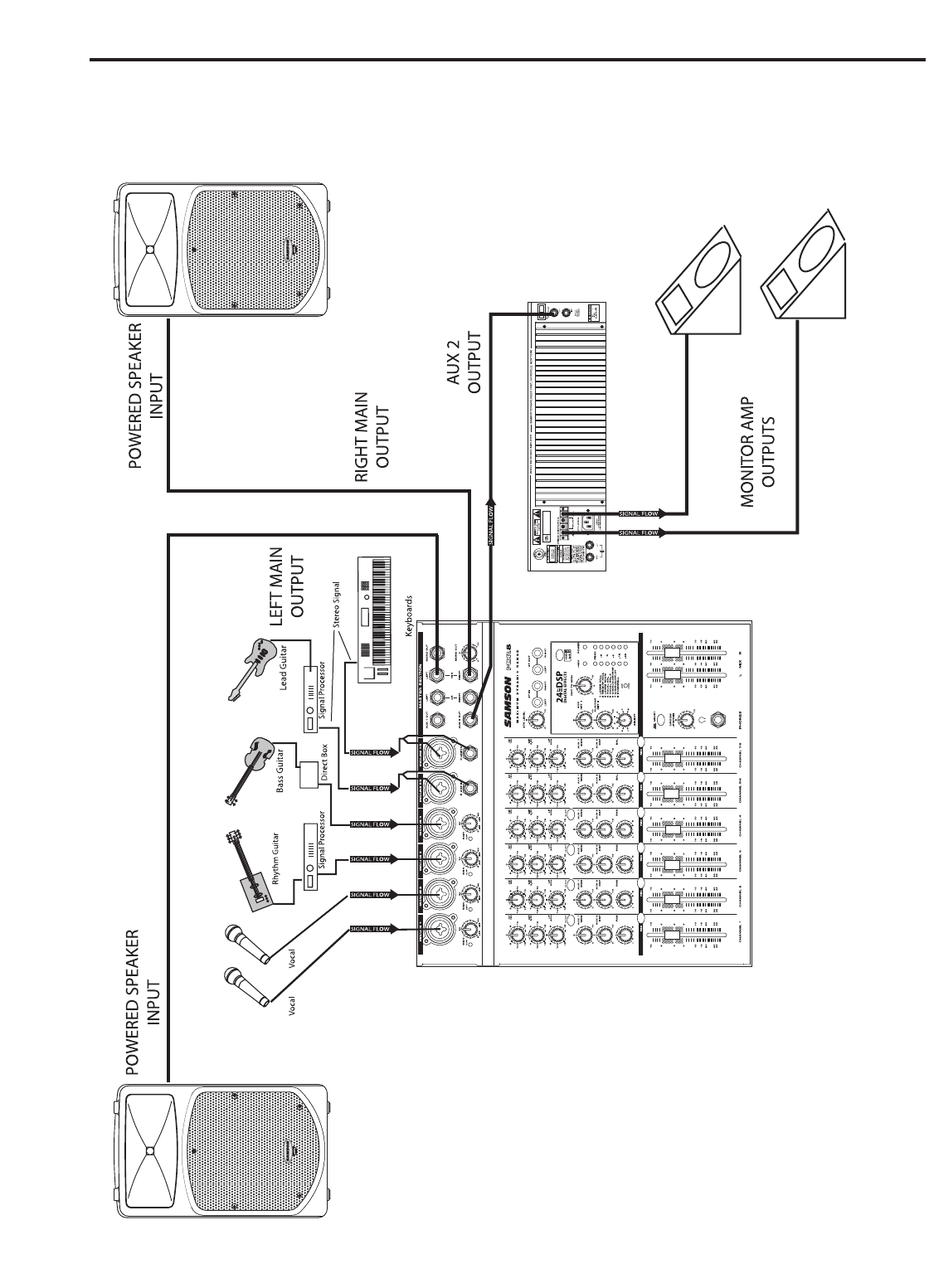

This system shows the

MDR8 connected to a pair

of powered speakers like

the SAMSON Expedition

EX20. The MONITOR OUT

is connected to an exter-

nal power amp, which is

driving 2 monitor speak-

ers. For inputs, two micro-

phones are connected to

channels 1 and 2’s low-

impedance inputs, and

the output of the Bass

Direct Box is also connect-

ed to the low-impedance

input on channel 4. The

Keyboards, as well as the

Lead and Rhythm Guitar

signal processor's’ out-

puts, are connected to the

MDR8’s line inputs.

MDR8’s AUX OUT con-

nected to an external

monitor amp.

MDR8 LIVE SOUND SET-UP
