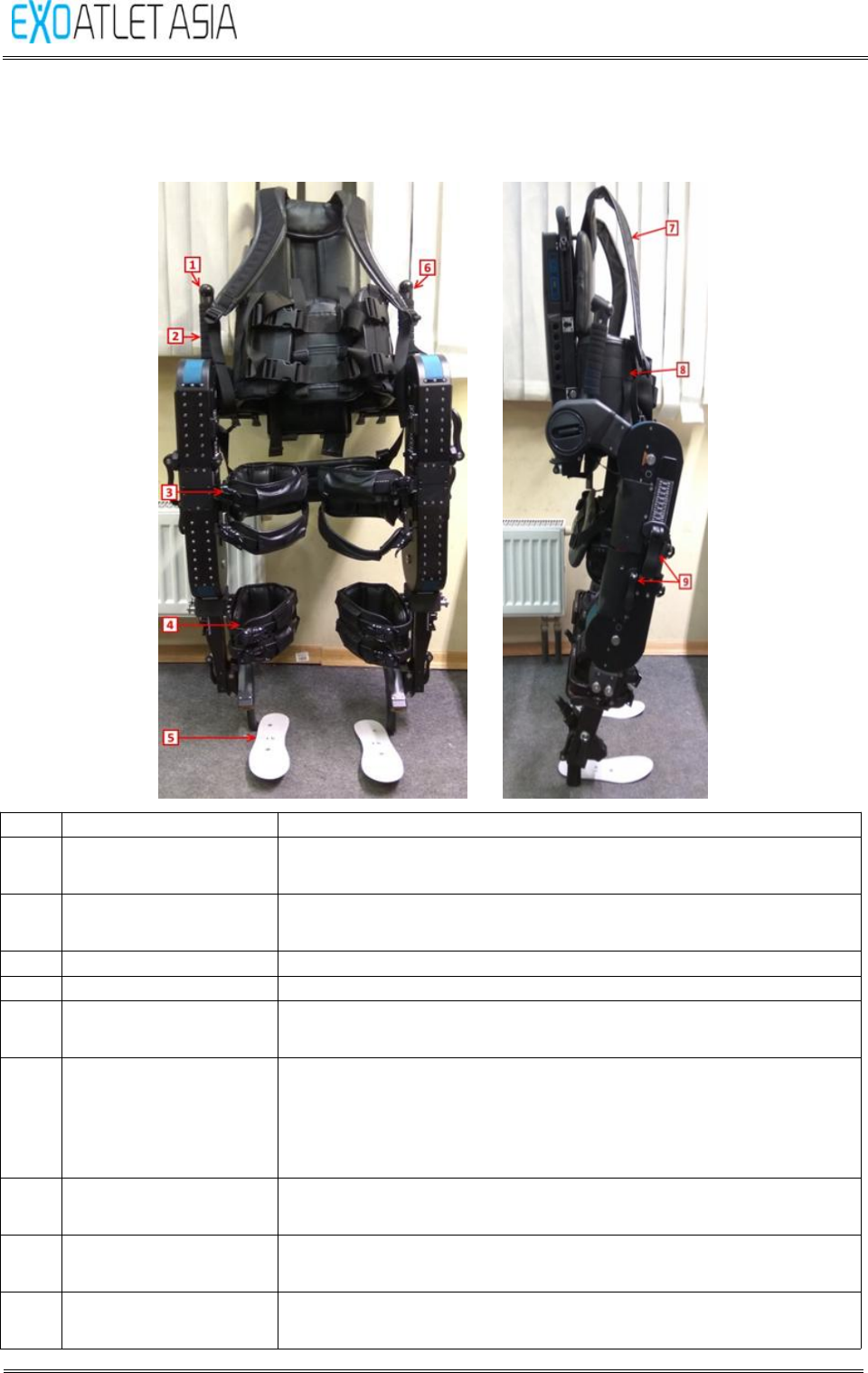

3.8. Appearance and function
3.8.1. Main Body
No.
Name
Function
1
Emergency
stop
button
In
the
event
of
an
emergency,
the
button
can
be
used
to
stop the operation of the device.
2 Handle
It
is
a
handle
that
an
assistant
can
hold
when
supporting
the product.
3
Thigh
fastener.
It
is
a
device
that
can
fix
the
user's
thighs.
4
Shank
binding.
It
is
a
device
that
can
fix
the
user's
calf.
5 Insole
Secure
the
shoes
with
the
sole
that
is
adjusted
to
fit
the
foot size of the pilot.
6 Stop button
When
the
button
is
pressed
during
operation
with
the
button for temporarily stopping the operation of the
machine, the machine stops in the state where both feet
are standing upright.
7 Shoulder straps
It
is
worn
on
the
shoulder
with
a
strap
that
can
fix
the
user's upper body.
8 Corset
It
is
worn
on
the
body
as
a
belt
that
can
fix
the
body
of
the user.
9 Cam levers
Adjust
the
thigh,
calf
and
pelvic
size
to
the
correct
position for your body and turn the lever to fix it.
