7.2.2. Main training screen
Main training screen consists of the sections:
- Information: describes the current doctor and pilot that were chosen, vital values
that were input and statistics of the training.
- Training – consists of the motion buttons, different settings buttons and remote
control switch.
- Events – shows the log of the events that were performed during training.
Before pressing “Start training” button all the buttons are unavailable. Press “Start
training” to start training session and get access to the motion buttons.

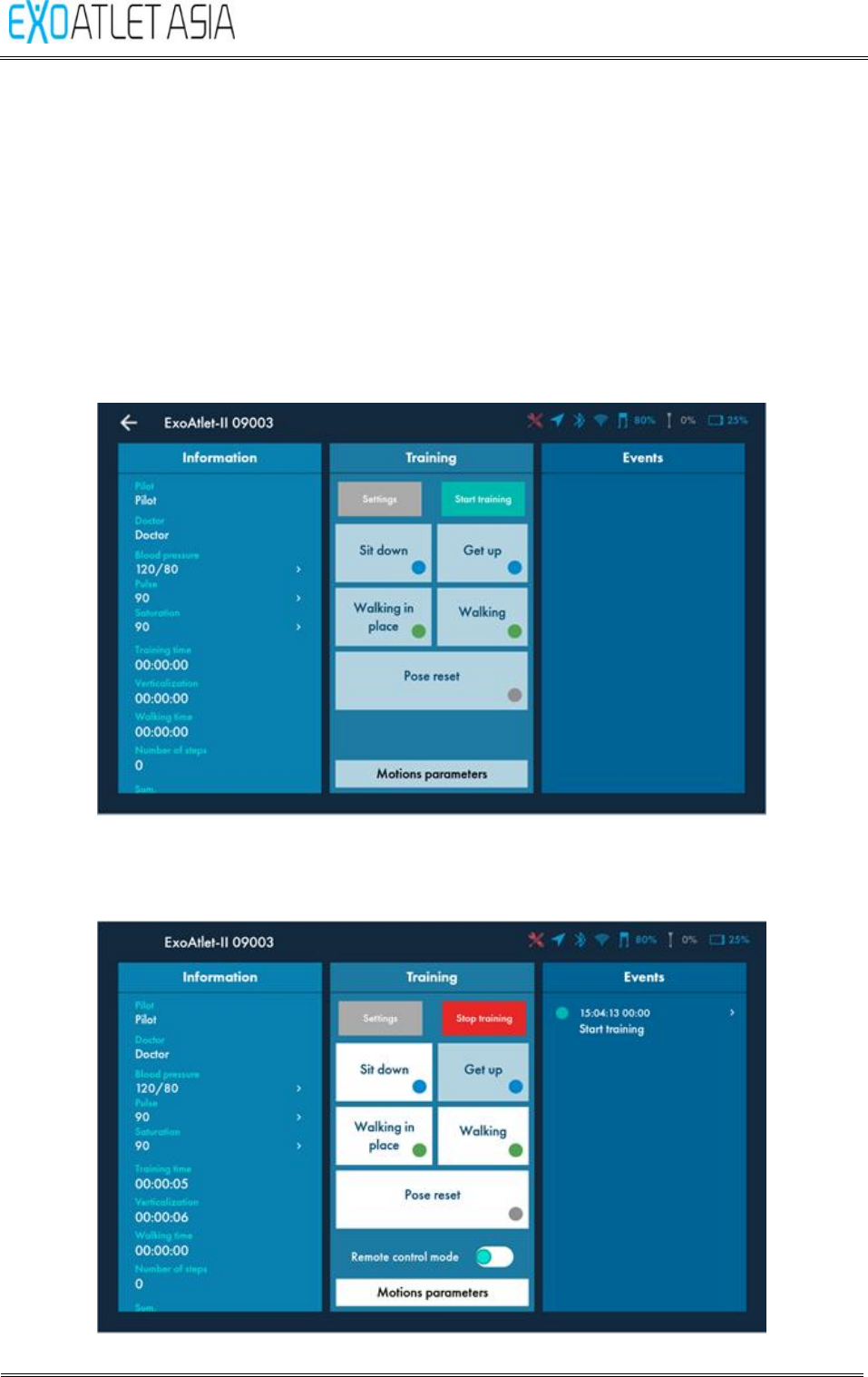

Figure 49
After pressing “Start training” button main buttons will become available (see
Figure 50).
Figure 50
