④ Sit down
In accordance with the selected settings (more details in 8.2.4.4) after pressing
“Sit down” button exoskeleton will perform 3 beeping sounds and then will get
into sitting pose. When finished, it will beep one more time to show that
device is ready for the next motion.
⑤ Getup
In accordance with the selected settings (more details in 8.2.4.3) after pressing
“Get up” button exoskeleton will perform 3 beeping sound and then will bend

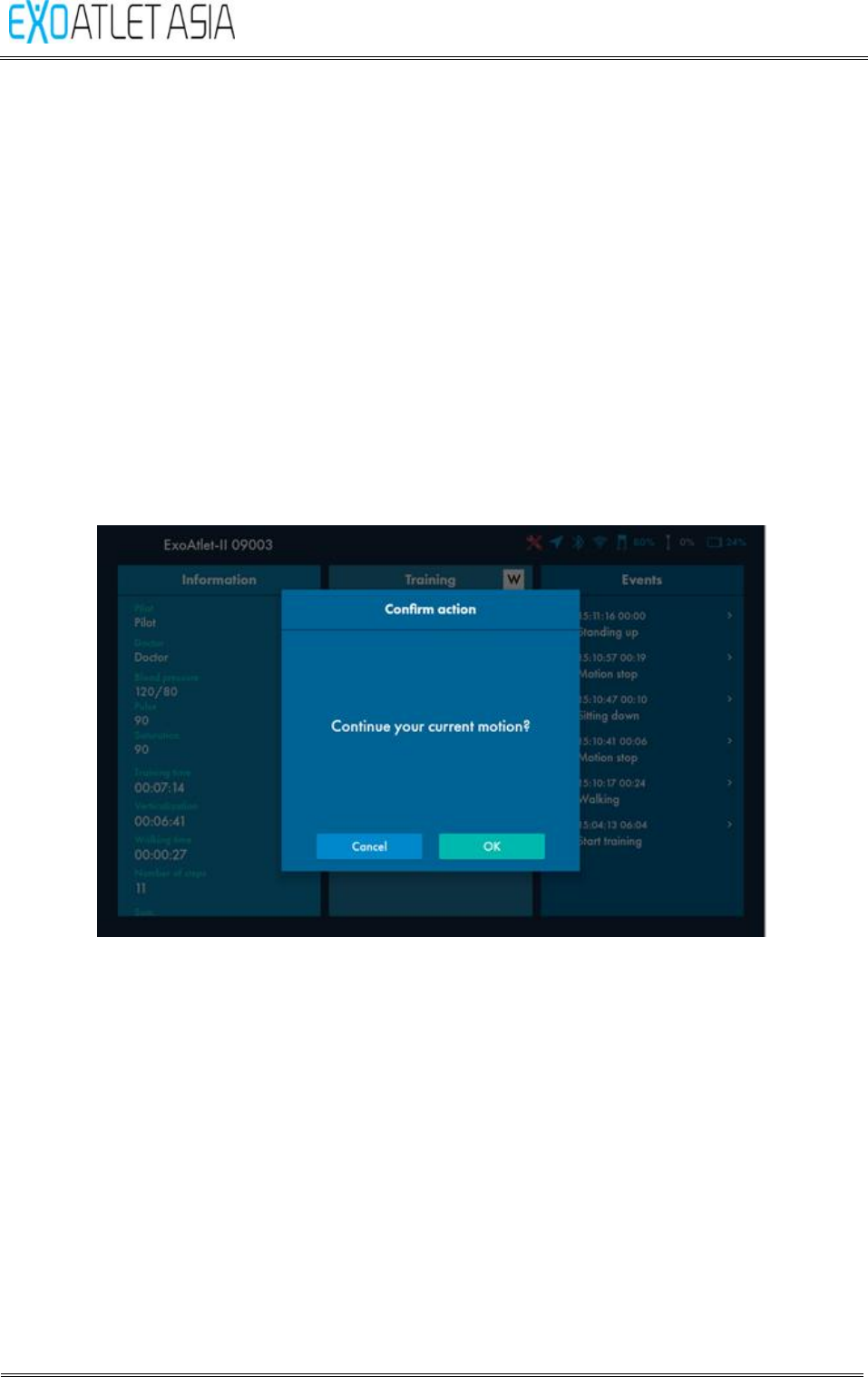

its legs (first left, then right) and then the “Confirm action” window will appear
(see Figure 56). Only after pressing “OK” button and after 3 beeps standing up
will be initiated and exoskeleton will get into standing position. When finished,
it will beep one more time to show that device is ready for the next motion.
Figure 56
If you will press “Cancel” exoskeleton may get into undetermined pose or
sitting pose (depending on the chosen settings).
⑥ Walking
In accordance with the selected settings (more details in 8.2.4.1) after pressing
“Walking” button exoskeleton will perform 3 beeping sound and then will
initiate the chosen mode.
Warning: before initiating walking carefully read the “Motion setting” clause.
