“BACK” button of Menu Buttons will back.

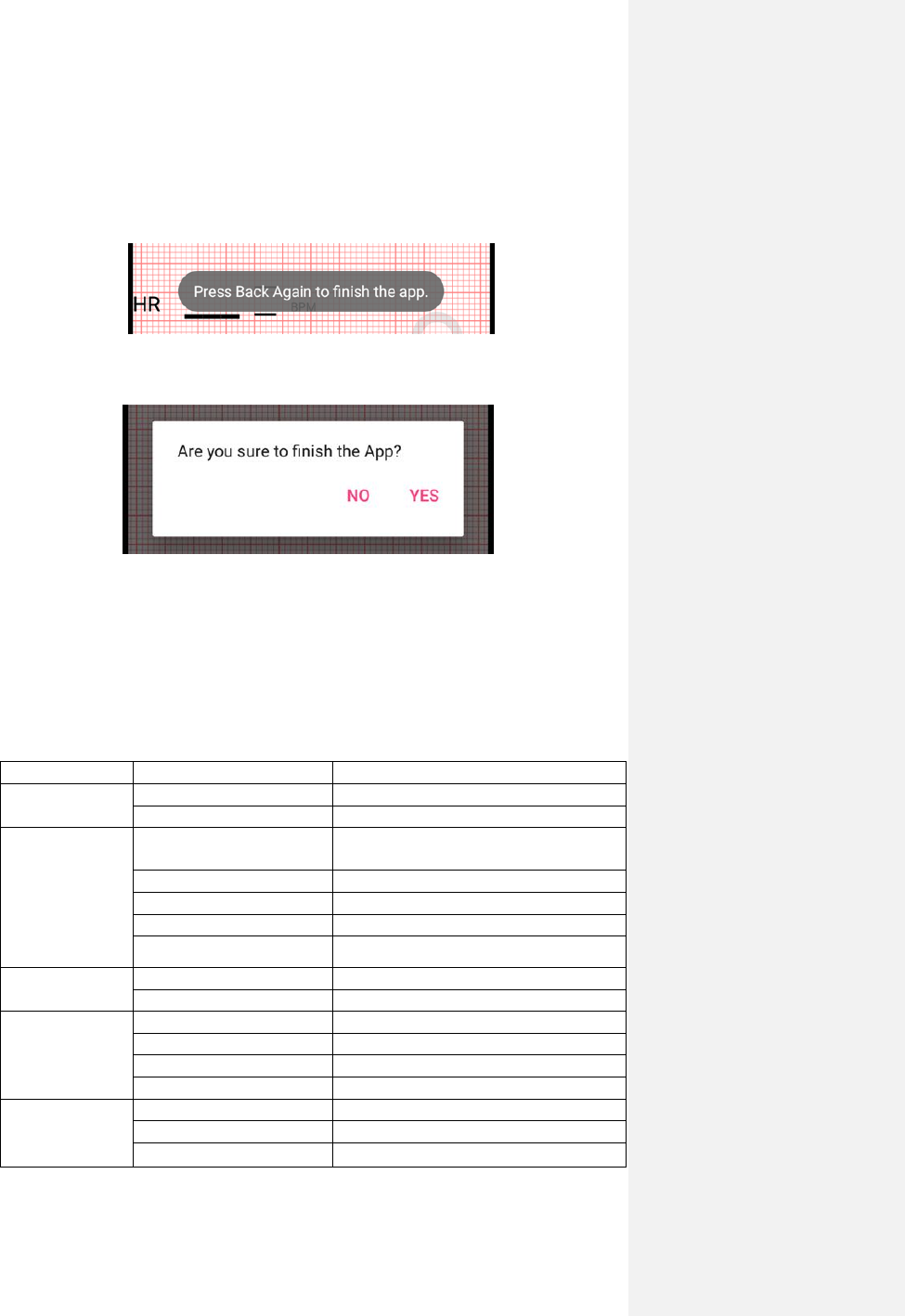

14) To finish S-PATCH app, push “BACK” button of Android device.
To prevent unintended finish, below message is shown.
If “BACK” button is pressed again during 1 second, one more confirmation is required.
“YES” will terminate the app. “NO” will not.
In case of using iOS, just push “HOME” button.
4.2 Specifications
4.2.1 S-PATCH3 Specifications
Classification
Name
Description
Performance
Type
CF-Type
Channel
Single channel
Circuitry
Communication with
Mobile device
Bluetooth
DC Offset Tolerance
+/- 300mV
ADC Resolution
12 bits
ADC Sampling Rate
1000 Samples/Second
Input Impedance
>100 MΩ
Power
Requirements
Power Supply
DC 3V , Coin Battery ( CR2032 )
Battery Life
>48 Hr.
Software
F/W version
V1.00
CPU
S1SBP6A (Cortex-M4F microprocessor)
BLE
Dialog DA14583(ARM Cortex-M0)
App(Android)
Kitkat(API19) or later
Physical
Characteristics
Weight (Exc. Battery)
6g
Dimension(Main Body1,2)
38*27*5 (mm), 38*27*3 (mm)[W*D*H]
Dimension(Connect Cable)
110 ± 5 (mm)
