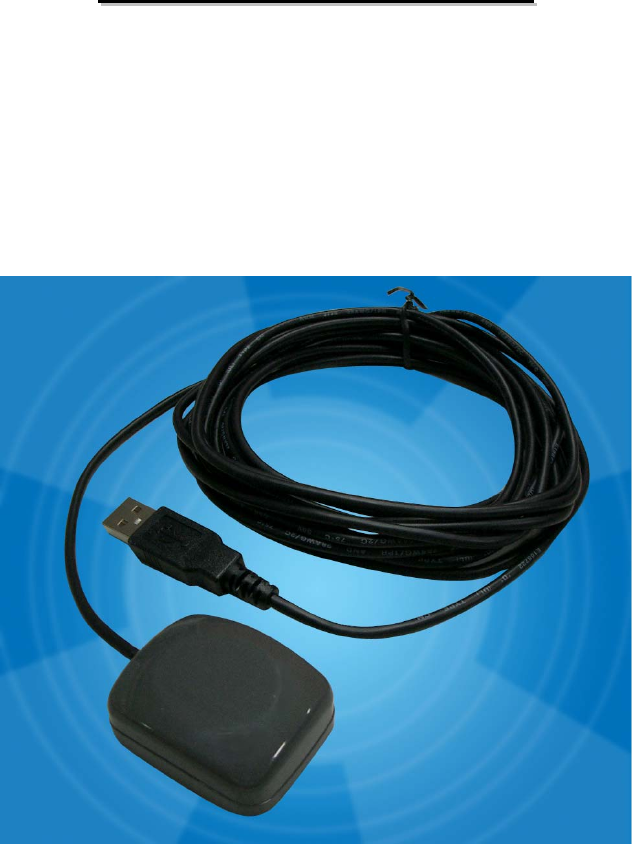

® GM-158-USB < USB > GPS MOBILE LOCATOR USER’S MANUAL
Contents INTRODUCTION & APPLICATIONS…...…………………………...….………..3 PACKAGE CONTENTS…………………………………………………………….4 GETTING STARTED.……………………………………………………….………5 OPERATING PROCEDURE……………………………………..…………………6 SPECIFICATION………………………………………………………...…………..7 APPENDIX …………………………………………...………………………………8 WARRANTY……………………………………………………….………………….
Introduction Welcome to GM-158-USB GPS Mobile Locator user’s manual. Congratulation on your purchase of the GM-158-USB® Mobile Locator GPS receiver/antenna. This is the latest in Plug-Navigate-Position innovation from SANJOSE Navigation, manufacturer of OEM GPS receiver & antenna around the world. This new concept of Mobile navigation solution is using the devise to integrate with your Personal Computer and map software to display your real time location on the monitor.
Package Contents After opening your package, make sure that the following items are not missing or damaged.
Getting Started This section will introduce you to simply outfit your new GM-158-USB® GPS Mobile locator to your PC. GM-158-USB® is a compact GPS receiver/antenna design for general purpose navigation and position locating when integrated with a computing device for mapping display (Notebook PC, PDA or Palmtop).
Operating Procedure Caution DO NOT TRY TO DO STEPS, WHILE VEHICLE IS IN MOTION. AND KEEP YOUR EYES ON THE ROAD Step 1: Before installing the USB driver to your computer, please don’t plug your GPS USB product to your computer. Step 2: Place the CD attached in the package into your CD-ROM drive. Step 3: Browse it and choose USB Driver/Windows 95-98-2000-XP folder. Step 4: Click the setup file and press “ Next” Step 5: Choose the Remove option to remove the previous version of the driver if there’s any.
Specifications PHYSICAL CONSTRUCTION PERFORMANCE Dimension L46.2mm*W38mm*H16.1mm Built-in Antenna Highly-reliable ceramic patch Weight without cable 70 gram Sensitivity -158dbm SBAS 1 channel (WAAS, EGNOS, MSAS) Receiving frequency 1575.42MHZ; C/A code Receiver architecture 32 parallel channels Enclosure Highly impact; corrosion-proof Start-up time 1 sec. typical (hot start) 35 sec. typical (warm start) 41sec.
APPENDIX Troubleshooting Tips 1. No updated display in your PC while moving. ‧ Check cable connections and COM port setting AT Control Panel/System Properties/Device Manager/Com-Port. ‧ Check raw data by using Window Terminal 4800bps 2. No ASCII NMEA data when running terminal program in COM-n,4800 8N1 ‧ Check Control Panel/System Properties/Device Manager/Com-Port. 3.Navigational software does not auto detect the GPS receiver ‧Check Installation & If the USB connecter connects to PC 4.
Limited Warranty GM-158-USB® is a GPS receiver as part of navigational aids, and is not intended to replace other means of navigation or aids. SANJOSE NAVIGATION, INC. warrants this GPS receiver and accessories to be free of defect for a period of 12 months from the date of original purchase. THIS WARRANTY APPLIES ONLY TO ORIGINAL PURCHASE.
