User Manual HD Radio Component Tuner HDT-1/HDT-1X

Advanced Information

Long press INFO button for 2 seconds to enter Advanced Information.

Press and release INFO button will cycle through information of RESET,

LCD Contrast Adjust, Backlight Brightness Control, (For HDT-1X:

Stereo/Mono Mode, Analog Mode, Split Audio Mode), Bit Error Rate,

The carrier to noise ratio, FUSE Bit Check , Transmission Mode,

Station ID and Software version.

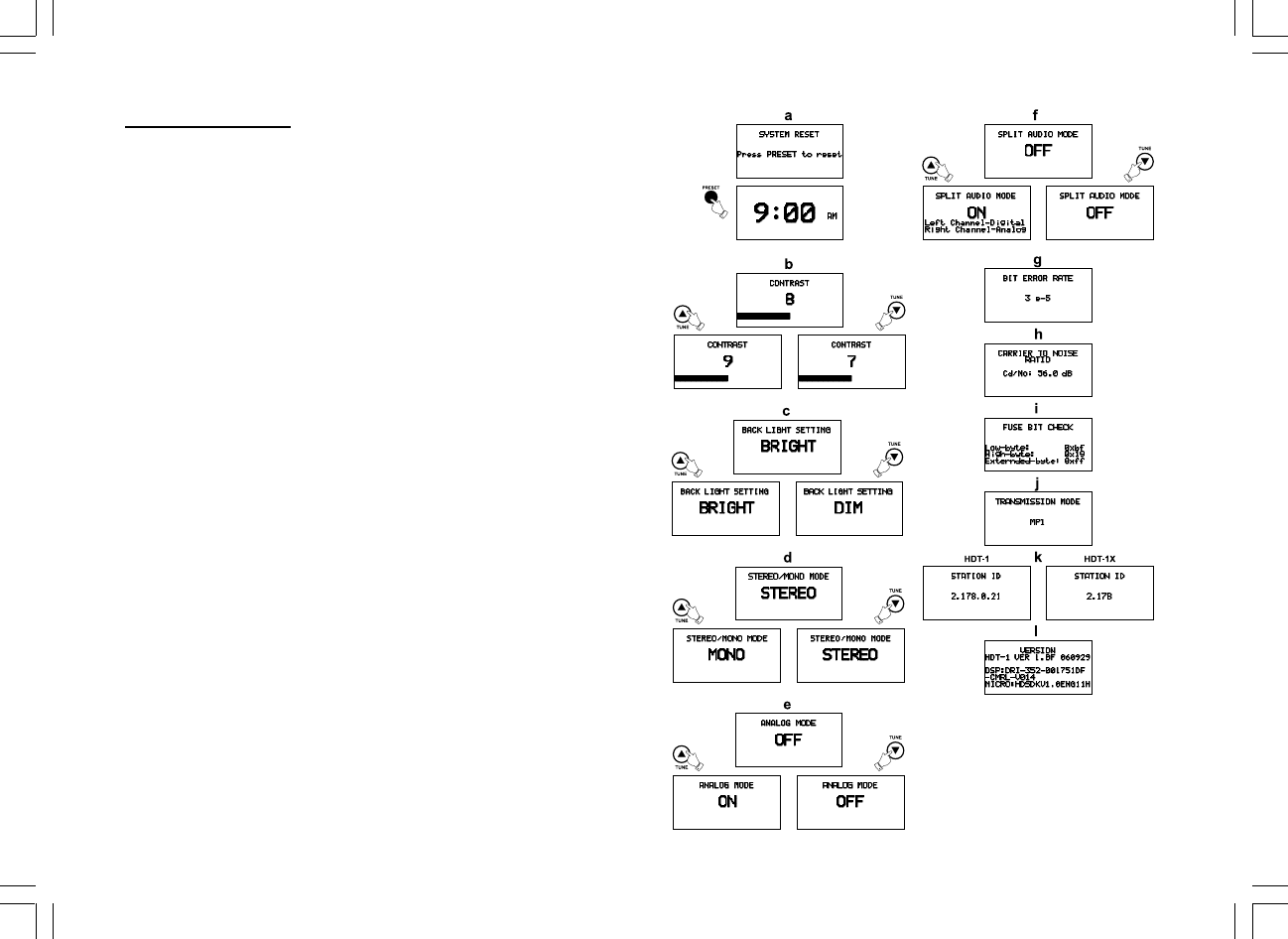

a. RESET –

in RESET mode, press PRESET button to RESET the tuner.

The tuner setting will be reset to its initialized factory setting.

b. LCD Contrast –

pressing TUNING UP or DOWN button to adjust LCD contrast.

c. Back Light Setting –

pressing TUNING UP or DOWN button to adjust Back Light.

(for HDT-1X only)

d. Stereo/Mono Mode –

pressing TUNING UP or DOWN button to adjust Stereo/mono.

(only for HDT-1X )

e. Analog Mode –

pressing TUNING UP or DOWN button to turn on/off HD.

(for HDT-1X only)

f. Split Audio Mode –

pressing TUNING UP or DOWN button to split audio on/off.

(for HDT-1X only)

g. Bit Error Rate

h. The carrier to noise ratio

i. Fuse Bit Check

j. Transmission Mode ,

k. Station ID and HDT-1/HDT-1X

l. Software version are for factory and after sales service reference.
