Menu Setting Procedures
This displays information related to the digital video recorder’s interface.
CONTROL
This shows the type of interface being used to control
the digital video recorder.
• RS-232C: Control by RS-232C
• RS-485: Control by RS-485
DATA SPEED
This shows the RS-232C or RS-485 communication
speed.
• 2400/4800/9600/19200(bps)
STATUS INFO
For RS-485 communication, this specifies whether
status information is to be transmitted or not.
• ON: Status information is to be transmitted.
• OFF: Status information is not to be transmitted.
ALARM INFO
For RS-485 communication, this specifies whether
alarm information is to be transmitted or not.
• ON: Alarm information is to be transmitted.
• OFF: Alarm information is not to be transmitted.
ADDRESS
This shows the address when RS-485 has been
selected.
• Valid settings range from 0 to 127.
This enables the warning buzzer to sound as necessary. Select “ON” or “OFF” for the menu item settings.
ALARM (Default setting: OFF)
This causes the buzzer to sound when there is an
alarm.
DISK FULL (Default setting: ON)
This causes the buzzer to sound a warning when the
free space remaining in the hard disk recording reach a
preset value. (See p. 11)
DISK ERROR (Default setting: ON)
This causes the buzzer to sound a warning if a hard
disk error has occurred.
LOCK WARNING (Default setting: ON)
This causes the buzzer to sound a warning if an
unauthorized operating button is pressed when the
security lock is on.
The buzzer sounds twice during a 0.5-second cycle.
KEY IN (Default setting: OFF)
This causes the buzzer to sound a key operation beep
when an operating button is pressed.
NON REC (Default setting: OFF)
This causes the buzzer to sound a warning when
recording stops.
Click [SAVE] to complete the BUZZER menu settings (or changes) that are displayed on the screen.

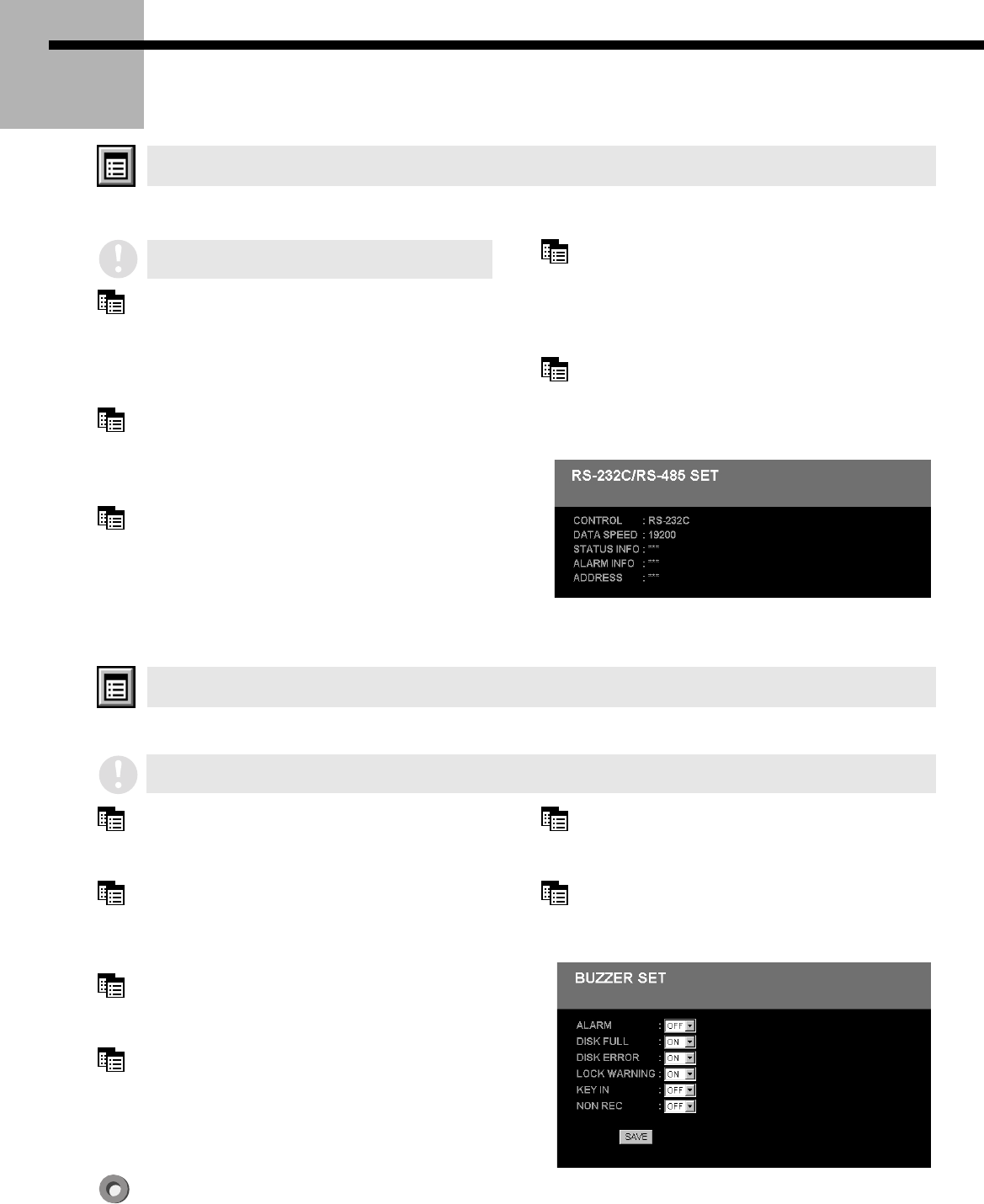

12. RS-232C/RS-485 SET
This menu only lets you check the settings; it
cannot be used to change the settings.
13. BUZZER SET
These settings only cause a buzzer to sound at the digital video recorder. They do not cause a buzzer to sound at the
computer.
