ASSY, PWB, Digital disassemble (AA5501)
Refer to mechanical disassemblies.

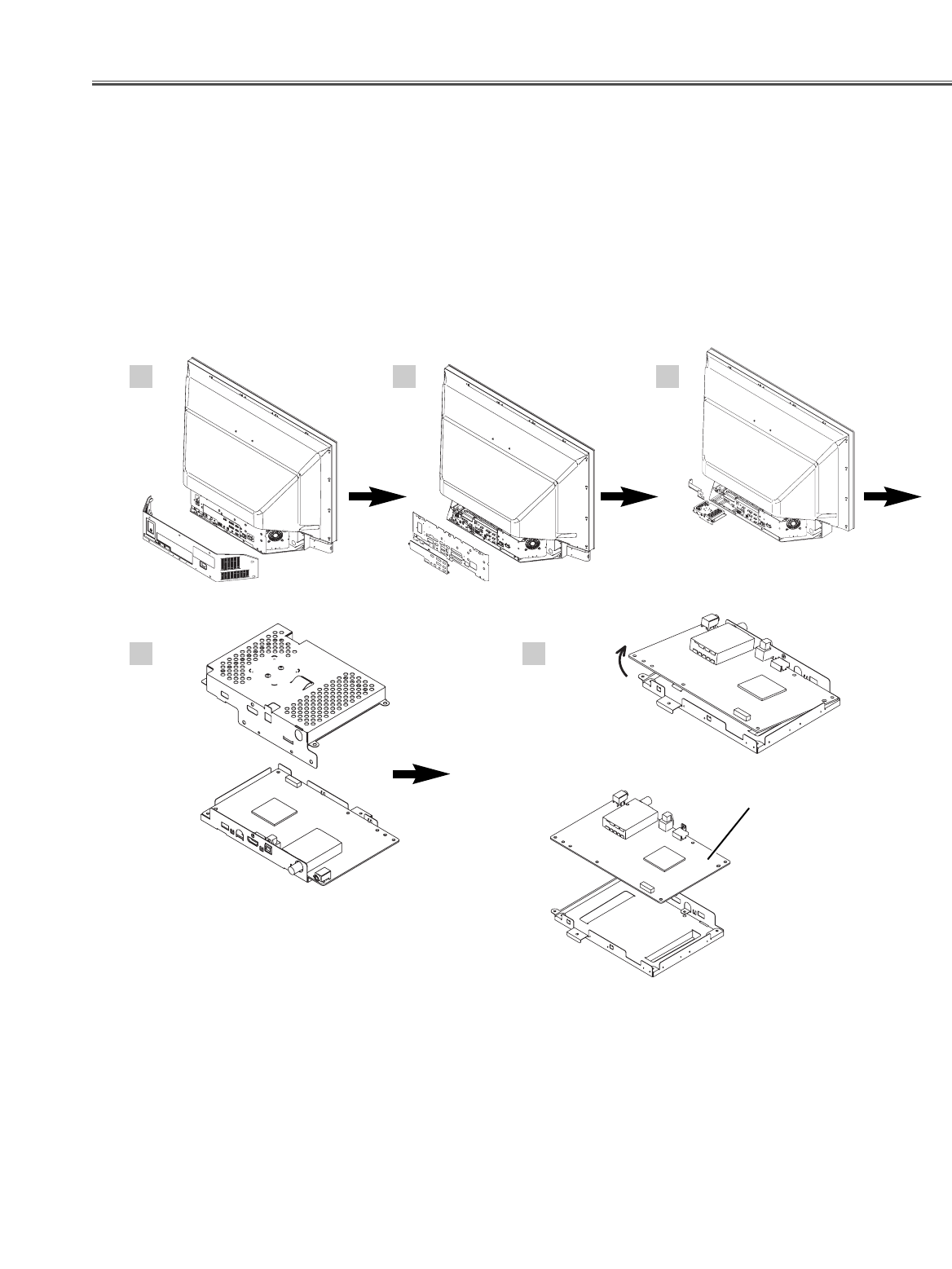

Step 1. Mechanical disassembly 1 P15 (Remove the Cabinet bottom cover.)
2.Mechanical disassembly 2 P16 (Remove the Holder bracket back.)
3.Mechanical disassembly 5-1 P20 (Remove the Digital tuner unit.)
4.Mechanical disassembly 5-2 P-21 (Remove the Digital tuner board.)
1 2
4 5
3
Digital tuner board
ASSY,PWB,DIGITAL (AA5501)
