Appendix

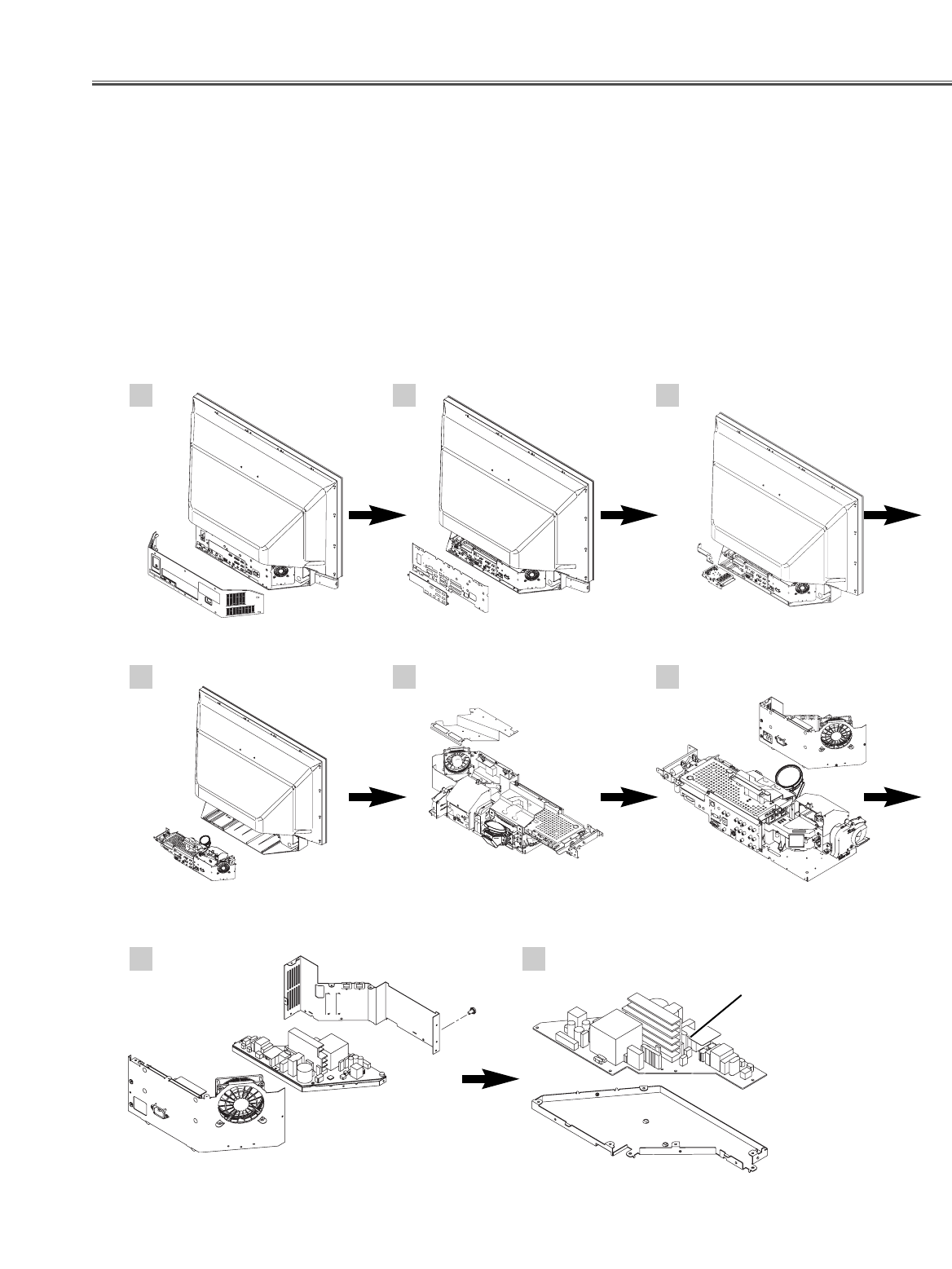

ASSY, PWB, POWER disassemble (AA601)

Refer to mechanical disassemblies.

Step 1 Mechanical disassembly 1 P15 (Remove the Cabinet bottom cover.)

2 Mechanical disassembly 2 P16 (Remove the Holder bracket back.)

3 Mechanical disassembly 5-1 P20 (Remove the Digital tuner unit.)

4 Mechanical disassembly 6 P22 (Remove the Optical / chassis unit.)

5 Mechanical disassembly 13 P28 (Remove the AC shield top.)

6 Mechanical disassembly 14 P28 (Remove the AC Power unit.)

7 Mechanical disassembly 15-1 P29 (Disassemble the AC Power unit.)

8 Mechanical disassembly 15-4 P29 (Remove the Power board.)

7 8

1 2 3

4 5 6

Power board

ASSY,PWB,POWER (AA601)
