ASSY, PWB, LED disassemble (A2801)
Refer to mechanical disassemblies.

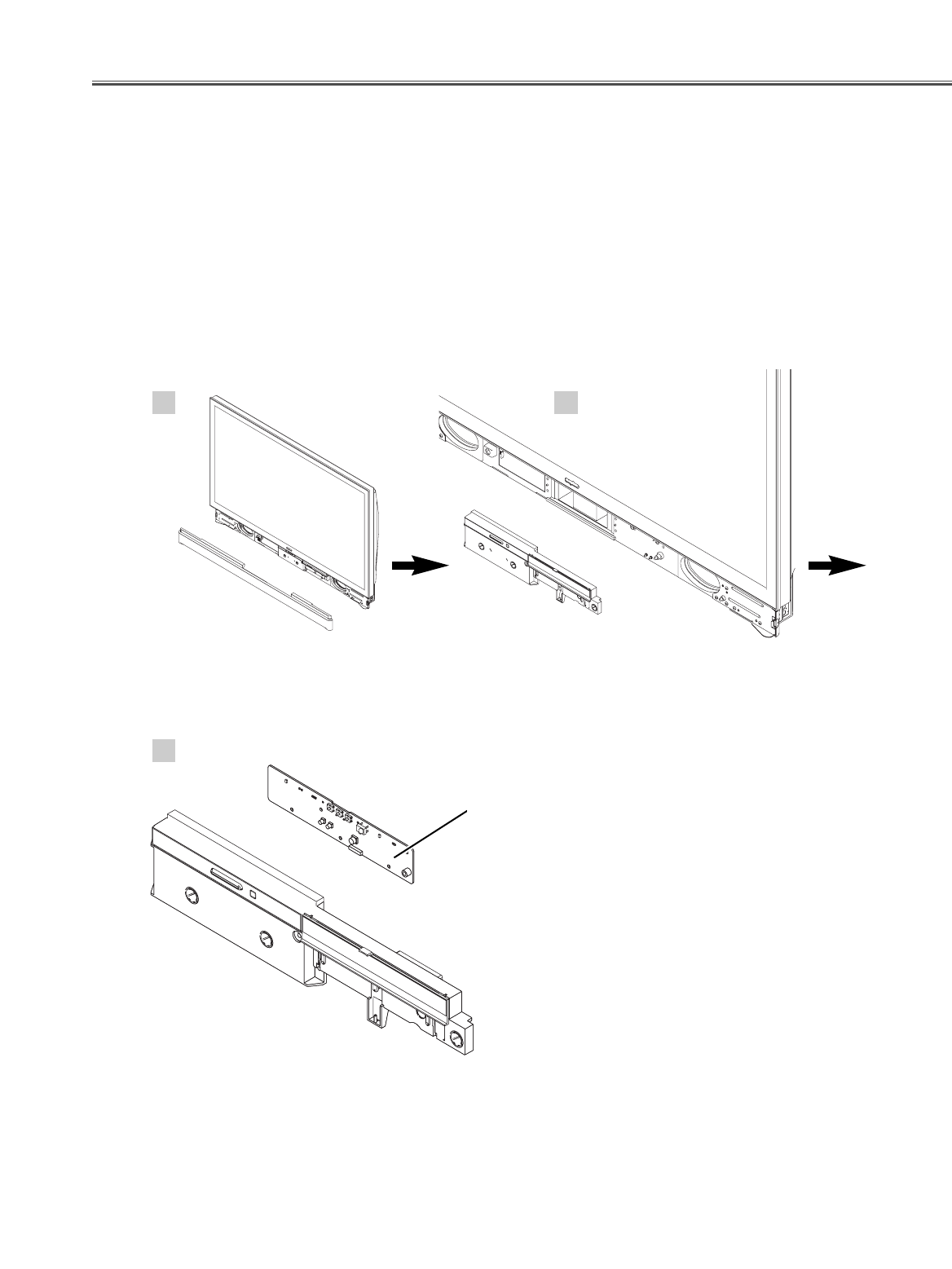

Step 1. Mechanical disassembly 3 P17 (Remove the Front cover.)
2.Mechanical disassembly 33 P46 (Remove the Front panel unit.)
3.Mechanical disassembly 34 P47 (Remove the LED board.)
1
3
2
LED board
ASSY,PWB,LED (A2801)
