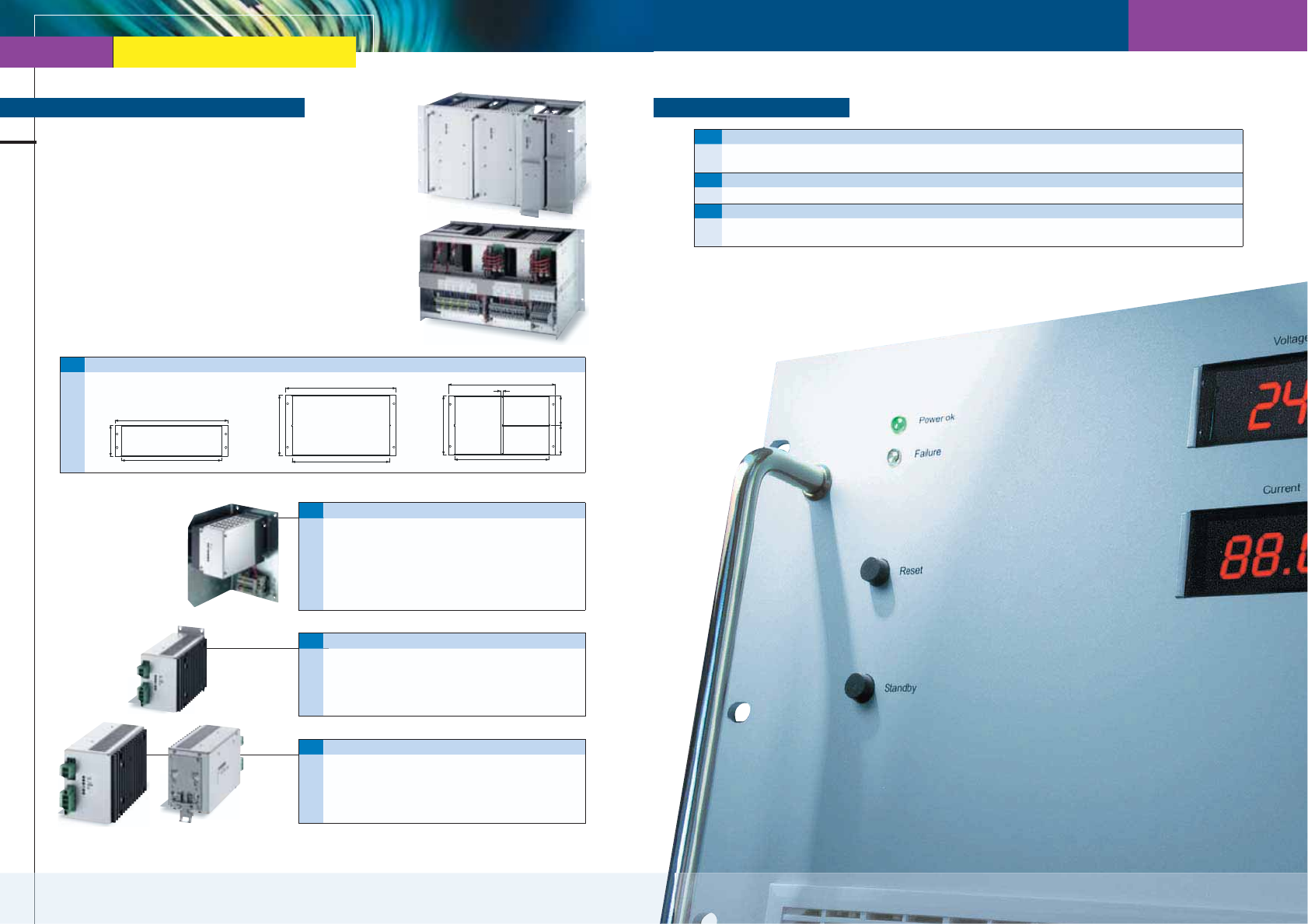

Options & Accessories Options & Accessories
for Switch Mode Units
Mechanics
t tropical protection
The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and on components to achieve 99%
RH, non condensing.
c extended temperature range
The circuit is designed and tested for operation at an ambient temperature as low as – 40°C.
ms increased mechanical strength
Screws are secured with Loctite and heavy components are fastened by ties and / or glue. Modules with the „ms“ are build acc. to
EN 61373 regarding shock and vibration.
Environment
As standard, all of the modules are designed and manufactured for insertion into 19”
sub-racks. Higher power modules are already constructed in 19” format.
Optionally, 19” sub-racks are available and can be configured as 3U or 6U allowing any
mix of units and can be upgraded in accordance to the customers’ requirements, e.g.
■
mating connectors wired to a terminal block
■
fuses or circuit breakers
■
hot swappable configuration upon request
■
analog or digital meters
■
switches
■
fans
■
filters
■
decoupling diodes
■
provisions for keying the modules to ensure module / slot designation
19“ Sub-Racks
6U = 266 mm
19" = 483 mm
84TE = 426.7 mm
19" = 483 mm
6U = 266 mm
2TE = 10 mm
3U = 132.5 mm3U = 132.5 mm
84TE = 426.7 mm
3U = 132.5 mm
19" = 483 mm
84TE = 426.7 mm
w wall mount
Modules, which have the wall mount option, are typically fixed
to a structure or within a cabinet. Depending on the size of the
module, this may be done with a flat or angled plate (see pho-
to). The load connections are typically through a terminal block.
Should the application not require a pluggable module / rack
solution, wall mounting presents an alternative option for the
customer to choose from.
cha chassis mount
Module is designed for installation to a structure or within a cabi-
net. Screw type mating connectors are supplied with the module.
Due to the limited number of connector pins this option is not
available for modules with dual AC input. Option is avalaible for
currents up to 60Amps.
din DIN rail mount
Module is designed for DIN rail mounting to a structure or within
a cabinet. Screw type mating connectors are supplied with the
module. Due to the limited number of connector pins this option
is not available for modules with dual AC input. Option is avalai-
ble for currents up to 60Amps.
