Conext™ Battery Monitor

975-0691-01-01 Revision B 2-13

4. Remove the front panel plate from the Battery Monitor.

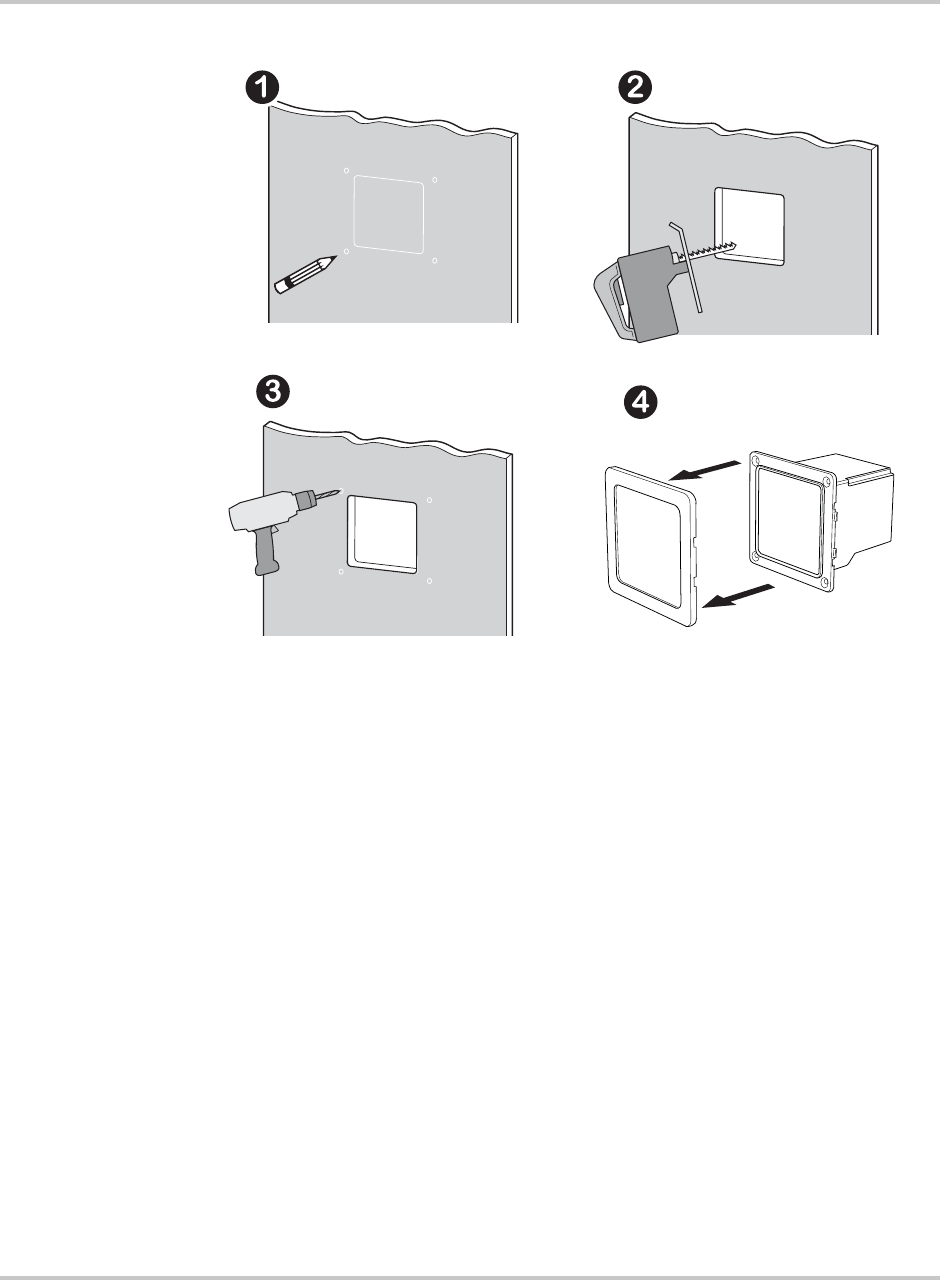

Figure 2-4 Panel mounting the Battery Monitor
