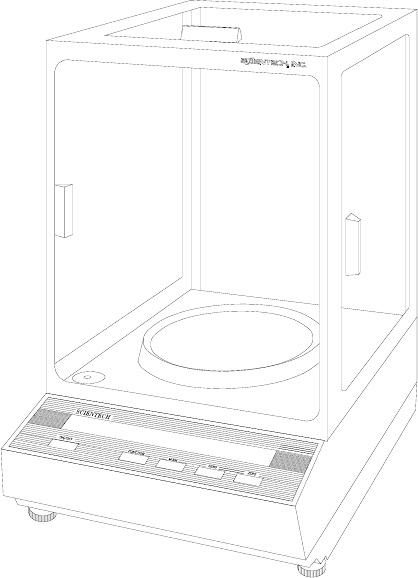

SCIENTECH® Series 10000 Electronic Balance Setup and Operating Procedures PN10597K
Thank you for choosing a Scientech Electronic Balance. Scientech, an ISO9001 registered company, and its employees are pleased to provide you with a balance designed and manufactured for years of reliable service and proudly made in the U.S.A. The attractive quality of Scientech balances has been demonstrated by being certified to carry the “CE” mark of conformity. Please read this manual completely before using your balance.
Environmental Requirements:...................................................................................................................................................................... 22 CE Mark: ..................................................................................................................................................................................................... 22 Specifications for SM Semi Micro Balances: ..............................................................
Choose the Proper Environment: The environment in which your balance is used is very important. Air movement, temperature changes, vibrations, direct sunlight, etc. influences the performance of high precision balances. Therefore, place your balance on a solid, sturdy surface that is free of air currents and vibration and not in direct sunlight. The surface should not be magnetic and should be located away from doors, windows, heaters, air conditioners and fans.
Connect to an Electrical Outlet: The balance is supplied with a 115/220, 50/60 Hz automatic switching, remote power supply. This power supply will work with most electrical outlets, however, before making any connections, verify that the power (VAC) requirement shown on the remote power supply is compatible with the AC power outlet to which the balance will be connected. Note: Note: First plug the round DIN connector into the balance’s rear panel receptacle.
Environment: 1. 2. 3. 4. 5. The more stable your environment, the better your measurement results. Changes in temperature, pressure, and humidity affect balance performance and weight stability. Ideal room conditions are 20º C with a relative humidity between 45% and 60%. Fluctuations in temperature should not exceed 1º C per hour. Humidity fluctuations should not exceed 10% per hour. Balances should not be placed in close proximity to anything that shakes, vibrates, or stirs violently.
The RANGE/FUNCTION Button: Single Range Balance Models: Pressing the RANGE/FUNCTION button begins the following menus cycle: • PCS – Front panel parts counting • HI OK LO – Checkweighing • CAL 1 – Autocalibration • CAL 2 – Linearity • • T – Live animal weighing % - percent weighing To select the desired function, press the MODE button when it appears on the display. Note: Front panel parts counting is not available with bi-directional RS-232 enabled.
Balance Functions and Features: Autocalibration – To Calibrate the balance to an External Weight: This procedure calibrates your balance to an external calibration weight. If your balance has a motorized internal calibration weight (9000-INT), please use the procedure for Autocalibration Using 9000-INT Motorized Internal Calibration Weight. Note: Note: Note: Note: Dual range models must be placed in HI range before starting the calibration procedure.
Autocalibration – To Calibrate the Balance and its Motorized Internal Calibration Weight to an External Weight: This procedure is only for SA and SM balances with an optional 9000-INT motorized internal calibration weight installed. This procedure first calibrates the balance to an external calibration weight then recalibrates the internal calibration weight to the external weight.
(PCS) Front Panel Parts Counting: Note: 1 2 3 4 5 6 7 8 Access to the PCS function via the front panel is disallowed if bi-directional RS-232 is enabled. RS-232 is enabled by selecting local control (LC) oFF (see RS-232 Front Panel Configuration section for details). Local control ON means the front panel controls the balance. User Action Press the FUNCTION button (or MODE and RANGE buttons simultaneously for dual range models). Press the MODE button when PCS appears on the display.
(%) Percent Weighing: 1 2 3 4 5 User Action Place an empty container on the weighing pan and press the ZERO button. Place the sample which represents 100% in the weighing container. Press the FUNCTION button (or MODE and RANGE buttons simultaneously for dual range models). Press the MODE button when CAL 100 appears on the display. If you want to exit the percent weighing mode, press the MODE button. Balance Response Zeros are displayed.
Capacity Tracker: The capacity tracker provides a graphic display of the used and unused portions of the weighing range and is shown in Figure 4. Each segment represents 10% of the balance's total capacity. As 5% of that portion of the capacity is approached the segment will begin flashing and will become fully (solid) illuminated when 10% of that portion of the capacity is used.
Below Balance Weighing: Note: Please use care when installing Below Balance Weighing. The suspension can be damaged if over tightened. The overload protection which is built into the pan assembly is not available at the below balance hanging device. Therefore, care must be taken to avoid side shocks or pulling too hard on the hanging device. For applications requiring suspension of weighings below the balance, a 6-32 threaded screw is provided. To access the set screw, proceed as shown.
RS-232 Interface: Note: Scientech balances are DTE (computer) devices. If communicating to another DTE device (ie computer), a Scientech RS-232 cable, PN10697, or normal null modem cable is required. If you are communicating to a DCE device (printer), a serial cable is required. Scientech offers a serial cable for your convenience. Your balance is equipped with a bi-directional RS-232 compatible interface. The interface is uni-directional (balance send only) when the local control is set to ON.
4 5 6 7 8 9 10 11 User Action LOCAL CONTROL SELECTION (LC on is default). “LC on” means that the front panel switches control the balance. To enable a computer to control the balance, “LC oFF” must be selected. Balance Response Press the MODE button. OK and the current front panel control setting , LC on or LC oFF is displayed. Press the SEND button to choose between on or off. Then press the ZERO button. PROTOCOL or HANDSHAKE SELECTION (Pr on is default).
Using Bi-Directional Communications: Scientech electronic balances, interfaced to a computer via the RS-232 port, can be controlled by a computer program in the same way an operator would control the balance using a PDA. Any programming language with access to the RS-232 interface can be used to program this control. The balance expects ASCII character instruction strings and responds with ASCII character data strings.
Command [decimal number]_CAL[CR] Response None Purpose [integer]_PIECES[CR] None [Decimal number]_ENTER_[integer] _PIECES[CR] None [register number]_RCL_[(CONVERT) (CAL) (PIECES)][CR] TAVG[CR] RESET_TAVG[CR] REG XXX :[register contents][MULT.] Loads a computed number based on the entered number, as a "last front panel units" relative multiplier, into the PIECES register and enters the PIECES mode. The display must be non-zero when this command is issued.
Type 3 Commands – Balance Output Functions: Command SEND[CR] [register number]_RCL[CR] Response See the RS-232 Balance Message Formats section. REG XXX:[register contents][current units or 'MULT.'] [CR] [LF] RCL_TARE[CR] REG 091:[TARE register contents] [current units][CR][LR] REG XXX:[contents of specified register][MULT.
RS-232 Balance Message Formats: The balance will respond to a SEND command by transmitting a message in one of three formats depending on how the SEND command was issued. The following discussion defines four types of SEND commands and the three message formats. 1. 2. 3. 4. The first case typically applies to a balance with RS-232 connected to a printer and an external print switch.
Format B - Balance in normal weighing mode: 1 15 X _ 2 16 X Y 3 17 X Y 4 5 6 7 8 9 10 11 12 13 14 X X ...CR LF X X _ _ _ Y Y Y _ Display shows 5.15 g and balance in high range Message is _ _ _5.
Troubleshooting Guide: Note: Many problems such as the balance remaining in the turn on sequence, "weird" characters on the display or "garbage" on the display are caused by connecting the power supply to the balance incorrectly. The proper procedure is to connect the round DIN connector on the power supply cable to the balance then plug the power supply into the wall outlet.
Environmental Requirements: This product is intended for indoor use at altitudes up to 2000 meters, Pollution Degree 1 or 2 in accordance with IEC 664 and transient overvoltages according to Installation Categories (Overvoltage Categories) I, II and III. For mains supply, the minimum and normal category is II.
Specifications for SA Analytical Balances: Model SA 80 SA 120 Weighing Mode Capacity SA 210 SA 310 SA 410 SA 510 Single Range 80g 120g 210g Readability 310g 410g 510g .0001g Tare Range 0-80g 0-120g 0-210g 0-310g 0-410g 0-510g Repeatability (Standard Deviation) Linearity .0001g .0001g .0001g .00015g .00015g .
Specifications for SP Precision Balances: Model SP150 SP250 Weighing Mode Capacity SP350 150g 0-150g 250g 350g SP404D 500g 1000g 1500g 40g 400g 0-250g 0-350g 0-500g 0-1000g 0-1500g 0-400g 0-400g 0.001g ±0.0015g Stabilization Time Weighing Speed Display Update Interval Data Interface Pan Size Operating Temperature Relative Humidity Power Supply Housing (WxDxH) Weight SP1500 0.
Specifications for SL Laboratory Balances: Model SL400 SL600 SL1000 Weighing Mode Capacity 400g 0-400g 600g 1000g 2000g 0-600g 0-1000g 0-2000g 0.01g ±0.015g Stabilization Time Weighing Speed Display Update Interval Data Interface Pan Size Operating Temperature Relative Humidity Power Supply Housing (WxDxH) Weight SL5000 SL6000 3000g 5000g 6000g 0-3000g 0-5000g 0-6000g 0.
Specifications for SG General Balances and SE Gem Balances: Model Weighing Mode Capacity Readability Tare Range Repeatability (Standard Deviation) Linearity Stabilization Time Weighing Speed Display Update Interval Data Interface Pan Size Operating Temperature Relative Humidity Power Supply Windscreen Calibration Weight Housing (WxDxH) Weight SG3000 3000g SG5000 SG8000 SG12000 Single Range 8000g 12000g 5000g 0.1g 0-3000g 0-5000g 0-8000g 0.1g ±0.15g 0-12000g SE250 SE2500 250g 0.001g 0-250g 0.
Limited Warranty: All Scientech Series 10000 Electronic Balances and their accessories are warranted against defects in materials and workmanship within North America for three (3) years and all other areas for two (2) years from the date of delivery. During the warranty period, Scientech will repair, or at its option replace at no charge, components that prove to be defective. The equipment must be returned, shipping prepaid, to Scientech's product service facility.
Quick Setup Guide: 1 UNPACK BALANCE 3 LEVEL BALANCE Adjust the FRONT FEET to level the balance by centering the LEVEL INDICATOR. Thumbwheel turns but stays in the same position against bottom of case. The shaft moves in and out but does not rotate. 4 6 TURN ON BALANCE Press the ON/OFF switch and make sure the balance goes through the following sequence. Rotating thumbwheel('s) as shown causes Shaft to extend out of case and RAISES front of balance. UNLOCK CLAMPING SCREW 1. Remove the paper tag.
