MDT5N25 & MDT5N40
May 2001
Page 17
DISPENSE AREA SANITATION
The dispense area; spouts, sink, grill and splash
panel will need periodic cleaning and maintenance.
1. The ice chute may be pulled down to remove it
from the ice dispenser. Wash and sanitize it.
2. The sink grill may be removed for washing and
sanitizing.
3. The sink should be flushed with hot water and
wiped clean with sanitizer.
4. The splash panel requires special attention to
clean it.
·
Push and release the Splash Panel Cleaning
switch located to the left of the water spout. This
disables the Touch Free sensors so the splash
panel may be cleaned without vending ice
and/or water.
·
Wash the splash panel and wipe with with
sanitizer.
·
Re-push the clean switch or allow 2 minutes to
pass for the Touch Free system to reset.

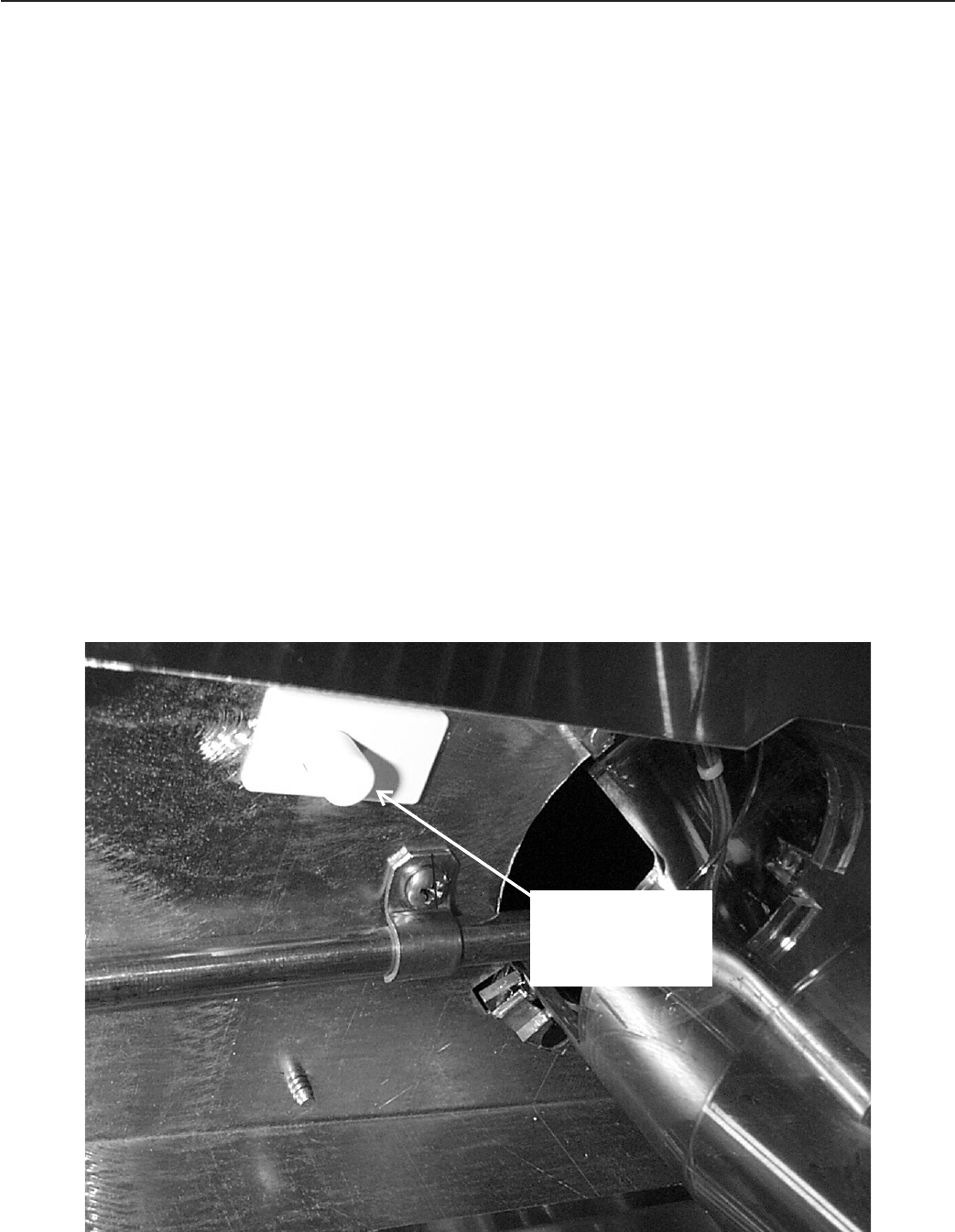

Splash Panel
Cleaning or Touch
Free Disable Switch
Push and Release
