Service Manual

Compressor Package
Compressor packages are similar in layout, they
only differ in compressor and charge.
Major Components:
CPR Valve - limits refrigeration pressures
inside the dome of the compressor.
Condenser By Pass Valve - opens during
harvest to allow discharge gas to flow to the
vapor line.
Headmaster - maintains a minimum
discharge pressure during freeze
Liquid Inlet Valve - Normally Open, closes
during harvest.
Receiver - stores liquid refrigerant for
freeze and provides vapor for harvest
Suction Access Valve - provides a place to
attach a refrigeration manifold for diagnostics
and recovery.
Prodigy Eclipseä 1200, 1400, 1800, 2000
August 2008
Page 15

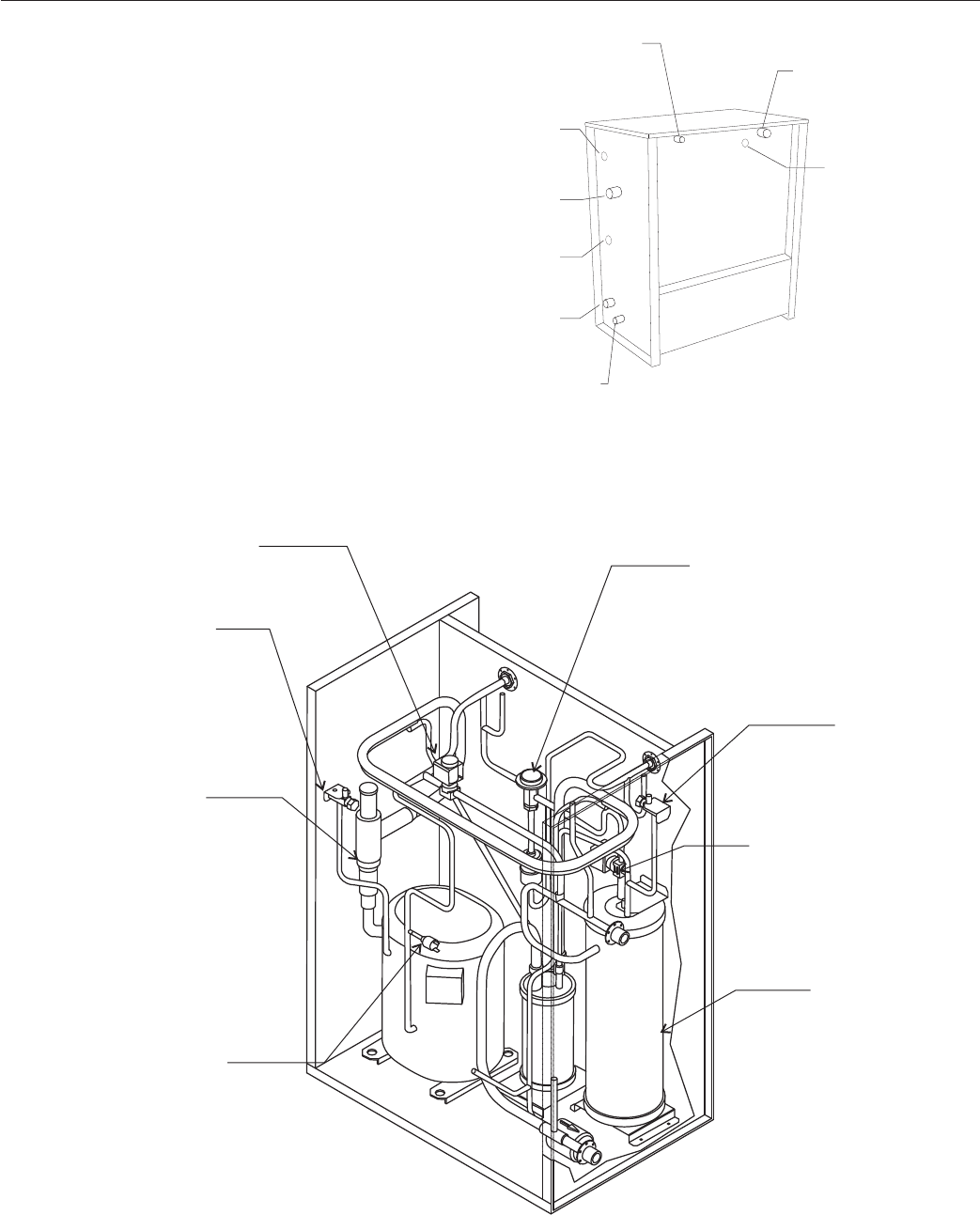

CP Unit Refrigeration Connection ID
Power
Routing Hole
Vapor Line
Connection
24 volt comm line
Routing Hole
Liquid Line
Connection
Suction Line
Connection
Liquid from
Cond.
Discharge to
Cond.
Condenser
Wire Routing
Hole
CP Component Location
CPR Valve
Liquid
Access
Valve
Headmaster
Condenser By
Pass Valve
Hi
Pressure
Cut Out
Liquid Inlet
Valve
Receiver
Suction
Access
Valve
