Service Manual

Ice making section:
Remove from carton.
Remove all panels.
Utility Connection Route:
Electrical: The unit is supplied with a power cord.
There is also an interconnecting control wire that
must be routed between the ice making head and
the CP unit.
Water Supply: The water supply can be routed
from the top or back.
Drain: The drain must be routed out the back.
Refrigeration Tubing: The tubing can be routed up
or towards the back.
Adapters:
In many cases an adapter kit will be required when
placing the head unit on a bin or dispenser. See
sales information for the correct kit. Place adapter
kit onto bin or dispenser top. If adapter does NOT
have gasket tape install tape such as Scotsman
part number 19-0503-04.
Attachment:
If the unit is a direct fit, place it on the bin. If the
unit is in a position that it need not be moved to
complete the installation, secure it to the bin with
the hardware provided with the head unit.
On some bins or dispensers it may be necessary
to drill small holes and use field supplied sheet
metal screws to secure the ice making head to that
bin, dispenser or adapter.
Control Wire
Plug the interconnecting control wire into the
harness at the back of the head unit’s electrical
box.
Prodigy Eclipseä 1200, 1400, 1800, 2000
August 2008
Page 18

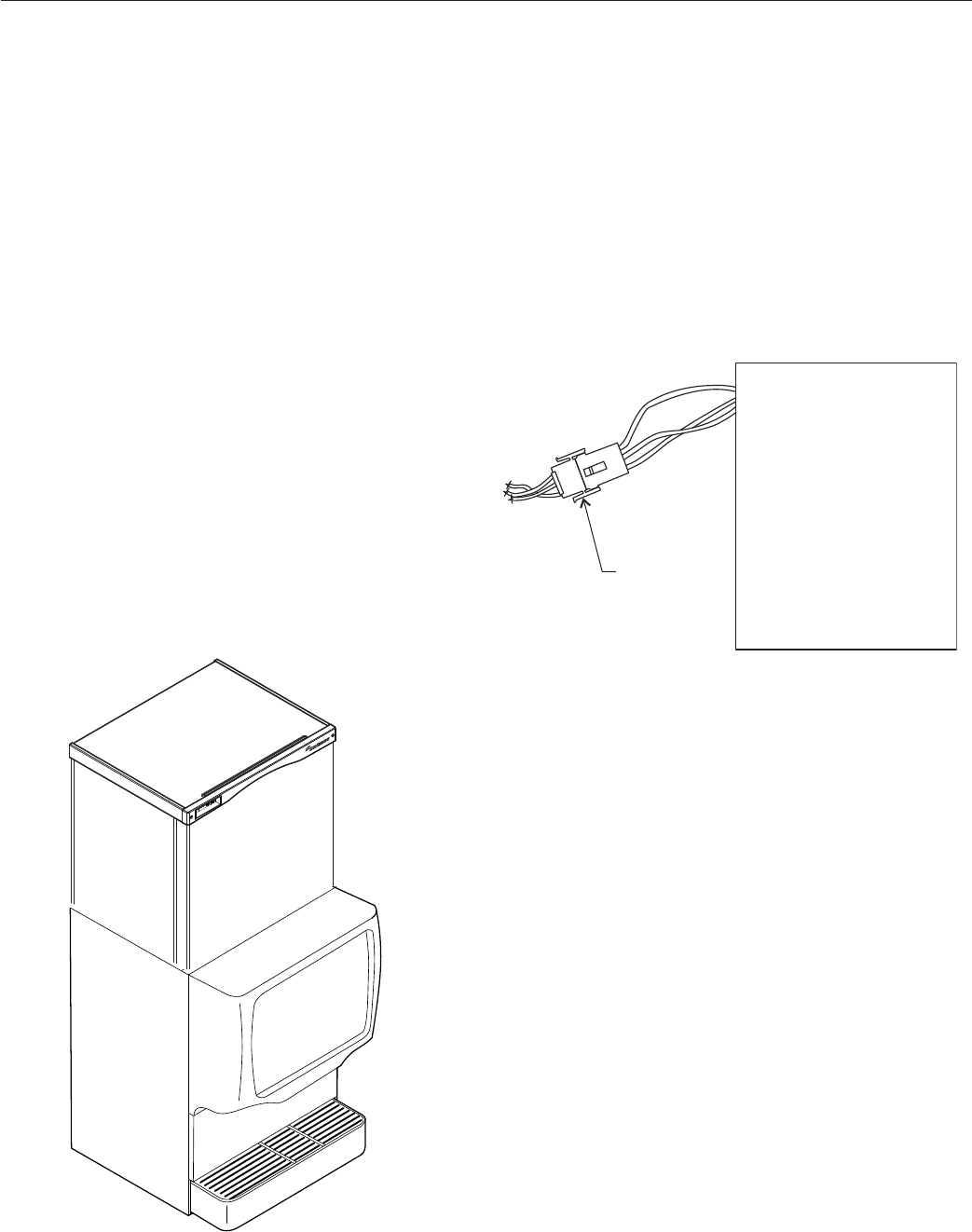

Ice Making Section Control Wire Connection
IMS Shown on Ice Dispenser
Control
Wire
Connector
Side View of
Electrical Box in
Ice Making Head
